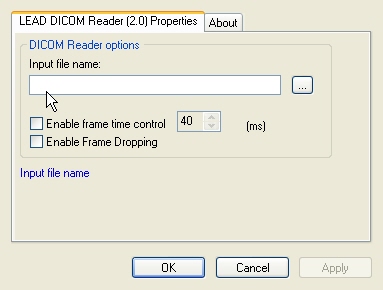

LEAD DICOM Reader User Interface (2.0)

Control

Description

Input file name edit box:

Use this edit box to type in the name of the input file. This edit box is disabled after the output pin is connected.

Browse Button

Click this button to open the Open Dialog to browse to the location of the input file. This button is disabled after the output pin is connected.

Enable frame time control Check box

Select this check box to enable frame rate control by setting the frame time (amount of time a frame is displayed). If this check box is not selected, the stream plays with the frame time set at 40 milliseconds (equating to 25 frames per second).

Frame time Spin Box

Sets the frame time, in milliseconds. This spin box is enabled if the Enable Frame Time Control check box is selected. Possible values range from 20 through 1000.

Enable Frame Dropping Check box

Select this check box to allow frames to be dropped as necessary to maintain the frame time.
