LEAD Video EFX Maze Filter User Interface

Show in webframe

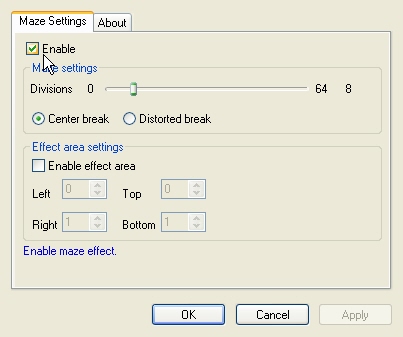

The Maze Video filtereffect distorts the video into a crystal maze. The property page is shown in the figure below:

The Maze property page provides a user interface for changing the filter's attributes.effect.

Changes will be applied directly to the streaming media with the ability to set them permanently by selecting Apply or OK, or to abandon changes by selecting Cancel. Positioning the mouse pointer over a control displays general information for that control. The following table shows the controls and their descriptions:

Control	Description
Enable check box	Enables/Disables the effect.
Divisions slider	Number of fragments. Range: 0 to 64.
Center break radio button	Indicates how each frame will be distorted. If selected, the reflection will be distorted around the center.
Distorted break radio button	Indicates how each frame will be distorted. If selected, the reflection will be distorted diagonally.
Enable effect area check box	Enables/Disables the effect for a cropped video area. Area limits are set using the Left, Top, Right and Bottom controls.
Left spin edit control	Left boundary of the effect area.
Top spin edit control	Top boundary of the effect area.
Right spin edit control	Right boundary of the effect area.
Bottom spin edit control	Bottom boundary of the effect area.
