L_DocDetectOrientationDegree

#include "ltdoc.h"

L_LTDOC_API L_INT L_DocDetectOrientationDegree (hDoc, nPageIndex, pnRotate)

L_HDOC hDoc;	/* handle to the OCR document.*/
L_INT nPageIndex;	/* page index */
L_INT * pnRotate;	/* pointer to a variable */

Determines the angle by which the specified page needs to be oriented.

Parameter	Description
hDoc	Handle to the OCR document.
nPageIndex	Specifies the index of the page for which to get the orientation angle. This index is zero-based.
pnRotate	Pointer to a variable to be updated with the orientation angle, in degrees. Possible values are: +90, +180, and +270. The rotation is clockwise.

Returns

SUCCESS	The function was successful.
< 1	An error occurred. Refer to Return Codes.

Comments

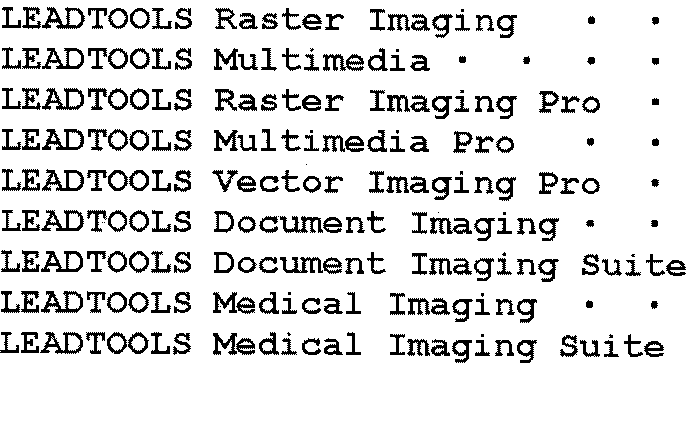

The purpose of orientation is to make the page more readable during recognition by making sure the top of the page is positioned properly. That is, a page that is oriented correctly like this:

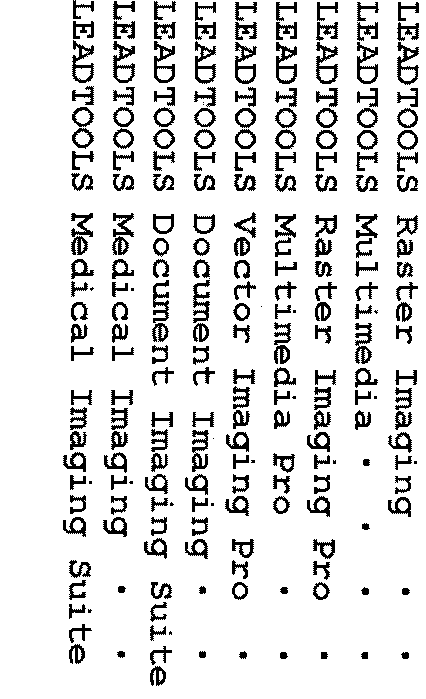

is much more readable than the same page oriented like this:

Please note that this function just provides the angle of orientation that is needed. It does not actually orient the page. To orient the page, call L_DocAutoOrientPage.

If the specified page does not need to be oriented the pnRotate parameter is updated with 0.

To automatically orient a page, call L_DocAutoOrientPage.

Required DLLs and Libraries

LTDOC For a listing of the exact DLLs and Libraries needed, based on the toolkit version, refer to Files To Be Included With Your Application.

See Also

Functions:	L_DocLockPage, L_DocUnlockPage, L_DocSetActivePage, L_DocSelectZoneByPoint, L_DocSelectZone, L_DocRemoveSelectedZone, L_DocSetZonePen, L_DocSetSelectedZonePen, L_DocGetSelectedZone, L_DocZone, L_DocCleanupPages
Topics:	Working with Pages
	OCR Functions: Pages

Example

 L_INT DocDetectOrientationDegreeExample(L_HDOC hDoc,L_INT nPageIndex)
{
   L_INT nRet;
   L_INT nRotate = 0;

   nRet = L_DocDetectOrientationDegree(hDoc, nPageIndex, &nRotate);
   if (nRet == SUCCESS)
   {
      L_TCHAR szBuffer[1024];
      wsprintf(szBuffer, TEXT("Orientation degree = %d"), nRotate);
      MessageBox(NULL, szBuffer, TEXT("Notice!"), MB_OK);
   }
   else
      return nRet;
   return SUCCESS;
}
