Delete Method (DicomIodTable)

public DicomIod Delete(
   DicomIod iod
)

'Declaration


Public Function Delete( _
   ByVal iod As DicomIod _
) As DicomIod

'Usage


Dim instance As DicomIodTable
Dim iod As DicomIod
Dim value As DicomIod

value = instance.Delete(iod)

public DicomIod Delete(
   DicomIod iod
)

public DicomIod delete(DicomIod iod)

 function Leadtools.Dicom.DicomIodTable.Delete(
   iod
)

public:
DicomIod^ Delete(
   DicomIod^ iod
)

Parameters

iod

The item to be deleted.

Return Value

• You can remove all items from the IOD Structure using Reset.
• Since the IOD Structure is stored internally as a tree, the deletion must be carried out as a tree.
• Since the IOD Structure is stored internally as a tree, the deletion must be carried out as a tree.
• Below are illustrations of these situations:
  For the sake of these illustrations, the order of siblings is top to bottom. A preceding sibling is drawn above the sibling it precedes, a following sibling is drawn below the sibling it follows.
  Please note that the numbering of the items of interest is arbitrary, and does not imply order.

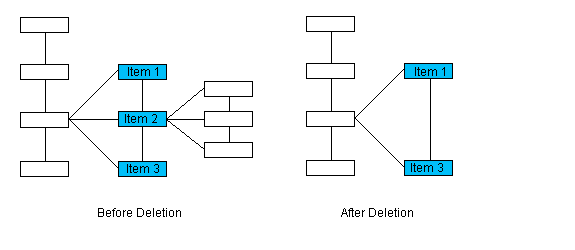

  In this illustration item 2 will be deleted. Since it has a following sibling, the returned class will be item 3.

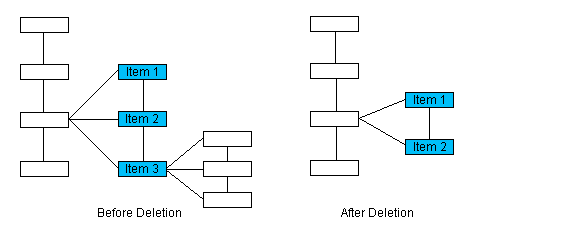

  In this illustration item 3 will be deleted. Since it does not have a following sibling, but does have a preceding sibling, the returned class will be item 2.
  In this illustration item 2 will be deleted. Since it is an only child, the returned class will be the parent, item 1.
  In this illustration item 1 will be deleted. Since it has no siblings and no parent, this method will return null.
