Tension Property

Gets or sets a value that indicates how straight to make the curves that connect points.

Syntax

C#
Visual Basic
WinRT C#
Java
Objective-C
WinRT JavaScript
C++

public double Tension {get; set;}

'Declaration

Public Property Tension As Double

'Usage

Dim instance As RasterCurve
Dim value As Double

instance.Tension = value

value = instance.Tension

public double Tension {get; set;}

 <br/>get_Tension();<br/>set_Tension(value);<br/>Object.defineProperty('Tension');

public:
property double Tension {
   double get();
   void set (    double value);
}

Property Value

An Double value that indicates how straight to make the curves that connect points. Valid values are between 0.0 and 1.0.

Remarks

This value is used only when Type is RasterCurveType.Standard. Valid values are between 0.0 and 1.0, where 0.0 indicates straight lines, and 1.0 indicates lines with the highest curvature. A typical value for dTension is 0.5.

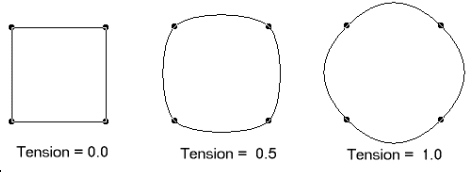

Curve Tension

Example

For an example, refer to RasterCurve.
