Tutorial: Sample database for the LEAD Storage Server

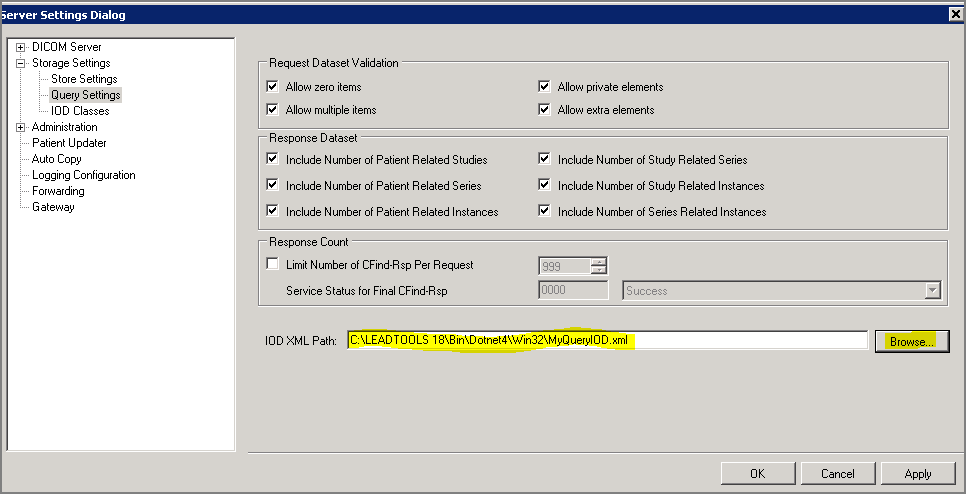

Step 1: Configure the LEAD Storage Server with the shipping database schema

Step 2: Create the custom storage data access layer, and configuration assemblies

1.       Open MyDataSet.Designer.cs, and replace all instances of SqlDbType.Date with SqlDbType.DateTime

2.       Follow the steps in Strongly Typed DataSet Class and XML Schema  to generate a new instance of MyDataSet.Designer.cs.

Step 3: Create the sample database

This tutorial uses Microsoft SQL Server 2008 and SQL Server Management Studio.  You can also use SQL Compact Edition, which is installed by default when you install Visual Studio.  If you use SQL Compact Edition, you can download SQL Server Management Studio Express (a free download from Microsoft).



Script to generate the tutorial database for SQL Server 2008

USE [master]

GO

/****** Object:  Database [MyDicomDb]    Script Date: 07/15/2013 13:02:13 ******/

CREATE DATABASE [MyDicomDb]

GO

ALTER DATABASE [MyDicomDb] SET COMPATIBILITY_LEVEL = 100

GO

IF (1 = FULLTEXTSERVICEPROPERTY('IsFullTextInstalled'))

begin

EXEC [MyDicomDb].[dbo].[sp_fulltext_database] @action = 'enable'

end

GO

ALTER DATABASE [MyDicomDb] SET ANSI_NULL_DEFAULT OFF

GO

ALTER DATABASE [MyDicomDb] SET ANSI_NULLS OFF

GO

ALTER DATABASE [MyDicomDb] SET ANSI_PADDING OFF

GO

ALTER DATABASE [MyDicomDb] SET ANSI_WARNINGS OFF

GO

ALTER DATABASE [MyDicomDb] SET ARITHABORT OFF

GO

ALTER DATABASE [MyDicomDb] SET AUTO_CLOSE OFF

GO

ALTER DATABASE [MyDicomDb] SET AUTO_CREATE_STATISTICS ON

GO

ALTER DATABASE [MyDicomDb] SET AUTO_SHRINK OFF

GO

ALTER DATABASE [MyDicomDb] SET AUTO_UPDATE_STATISTICS ON

GO

ALTER DATABASE [MyDicomDb] SET CURSOR_CLOSE_ON_COMMIT OFF

GO

ALTER DATABASE [MyDicomDb] SET CURSOR_DEFAULT  GLOBAL

GO

ALTER DATABASE [MyDicomDb] SET CONCAT_NULL_YIELDS_NULL OFF

GO

ALTER DATABASE [MyDicomDb] SET NUMERIC_ROUNDABORT OFF

GO

ALTER DATABASE [MyDicomDb] SET QUOTED_IDENTIFIER OFF

GO

ALTER DATABASE [MyDicomDb] SET RECURSIVE_TRIGGERS OFF

GO

ALTER DATABASE [MyDicomDb] SET  DISABLE_BROKER

GO

ALTER DATABASE [MyDicomDb] SET AUTO_UPDATE_STATISTICS_ASYNC OFF

GO

ALTER DATABASE [MyDicomDb] SET DATE_CORRELATION_OPTIMIZATION OFF

GO

ALTER DATABASE [MyDicomDb] SET TRUSTWORTHY OFF

GO

ALTER DATABASE [MyDicomDb] SET ALLOW_SNAPSHOT_ISOLATION OFF

GO

ALTER DATABASE [MyDicomDb] SET PARAMETERIZATION SIMPLE

GO

ALTER DATABASE [MyDicomDb] SET READ_COMMITTED_SNAPSHOT OFF

GO

ALTER DATABASE [MyDicomDb] SET HONOR_BROKER_PRIORITY OFF

GO

ALTER DATABASE [MyDicomDb] SET  READ_WRITE

GO

ALTER DATABASE [MyDicomDb] SET RECOVERY FULL

GO

ALTER DATABASE [MyDicomDb] SET  MULTI_USER

GO

ALTER DATABASE [MyDicomDb] SET PAGE_VERIFY CHECKSUM

GO

ALTER DATABASE [MyDicomDb] SET DB_CHAINING OFF

GO

EXEC sys.sp_db_vardecimal_storage_format N'MyDicomDb', N'ON'

GO

USE [MyDicomDb]

GO

/****** Object:  Table [dbo].[MyPatientTable]    Script Date: 07/01/2013 17:44:15 ******/

SET ANSI_NULLS ON

GO

SET QUOTED_IDENTIFIER ON

GO

CREATE TABLE [dbo].[MyPatientTable](

      [PatientId] [int] IDENTITY(1,1) NOT NULL,

      [PatientIdentification] [nvarchar](70) NOT NULL,

      [PatientName] [nvarchar](max) NOT NULL,

      [PatientBirthday] [date] NULL,

      [PatientSex] [nvarchar](50) NULL,

      [PatientComments] [nvarchar](200) NULL,

CONSTRAINT [PK_Patient] PRIMARY KEY CLUSTERED

(

      [PatientId] ASC

)WITH (PAD_INDEX  = OFF, STATISTICS_NORECOMPUTE  = OFF, IGNORE_DUP_KEY = OFF, ALLOW_ROW_LOCKS  = ON, ALLOW_PAGE_LOCKS  = ON) ON [PRIMARY],

 CONSTRAINT [uc_PatientIdentification] UNIQUE NONCLUSTERED

(

      [PatientIdentification] ASC

)WITH (PAD_INDEX  = OFF, STATISTICS_NORECOMPUTE  = OFF, IGNORE_DUP_KEY = OFF, ALLOW_ROW_LOCKS  = ON, ALLOW_PAGE_LOCKS  = ON) ON [PRIMARY]

) ON [PRIMARY]

GO

/****** Object:  Table [dbo].[MyStudyTable]    Script Date: 07/01/2013 17:44:15 ******/

SET ANSI_NULLS ON

GO

SET QUOTED_IDENTIFIER ON

GO

CREATE TABLE [dbo].[MyStudyTable](

      [StudyId] [int] IDENTITY(1,1) NOT NULL,

      [StudyPatientId] [int] NOT NULL,

      [StudyStudyInstanceUID] [nvarchar](64) NOT NULL,

      [StudyStudyDate] [date] NULL,

      [StudyAccessionNumber] [nvarchar](64) NULL,

      [StudyStudyDescription] [nvarchar](256) NULL,

      [StudyReferringPhysiciansName] [nvarchar](50) NULL,

      [StudyStudyId] [nvarchar](16) NULL,

 CONSTRAINT [PK_Study] PRIMARY KEY CLUSTERED

(

      [StudyId] ASC

)WITH (PAD_INDEX  = OFF, STATISTICS_NORECOMPUTE  = OFF, IGNORE_DUP_KEY = OFF, ALLOW_ROW_LOCKS  = ON, ALLOW_PAGE_LOCKS  = ON) ON [PRIMARY],

 CONSTRAINT [uc_StudyStudyInstanceUID] UNIQUE NONCLUSTERED

(

      [StudyStudyInstanceUID] ASC

)WITH (PAD_INDEX  = OFF, STATISTICS_NORECOMPUTE  = OFF, IGNORE_DUP_KEY = OFF, ALLOW_ROW_LOCKS  = ON, ALLOW_PAGE_LOCKS  = ON) ON [PRIMARY]

) ON [PRIMARY]

GO

/****** Object:  Table [dbo].[MySeriesTable]    Script Date: 07/01/2013 17:44:15 ******/

SET ANSI_NULLS ON

GO

SET QUOTED_IDENTIFIER ON

GO

CREATE TABLE [dbo].[MySeriesTable](

      [SeriesId] [int] IDENTITY(1,1) NOT NULL,

      [SeriesStudyId] [int] NOT NULL,

      [SeriesSeriesInstanceUID] [nvarchar](64) NOT NULL,

      [SeriesBodyPartExamined] [nvarchar](16) NULL,

      [SeriesSeriesNumber] [int] NULL,

      [SeriesSeriesDescription] [nvarchar](300) NULL,

      [SeriesSeriesDate] [date] NULL,

      [SeriesModality] [nvarchar](50) NULL,

 CONSTRAINT [PK_Series] PRIMARY KEY CLUSTERED

(

      [SeriesId] ASC

)WITH (PAD_INDEX  = OFF, STATISTICS_NORECOMPUTE  = OFF, IGNORE_DUP_KEY = OFF, ALLOW_ROW_LOCKS  = ON, ALLOW_PAGE_LOCKS  = ON) ON [PRIMARY],

 CONSTRAINT [uc_SerieSeriesInstanceUID] UNIQUE NONCLUSTERED

(

      [SeriesSeriesInstanceUID] ASC,

      [SeriesStudyId] ASC

)WITH (PAD_INDEX  = OFF, STATISTICS_NORECOMPUTE  = OFF, IGNORE_DUP_KEY = OFF, ALLOW_ROW_LOCKS  = ON, ALLOW_PAGE_LOCKS  = ON) ON [PRIMARY]

) ON [PRIMARY]

GO

/****** Object:  Table [dbo].[MyInstanceTable]    Script Date: 07/01/2013 17:44:15 ******/

SET ANSI_NULLS ON

GO

SET QUOTED_IDENTIFIER ON

GO

CREATE TABLE [dbo].[MyInstanceTable](

      [ImageId] [bigint] IDENTITY(1,1) NOT NULL,

      [ImageSeriesId] [int] NOT NULL,

      [SOPInstanceUID] [nvarchar](64) NOT NULL,

      [ImageImageNumber] [int] NOT NULL,

      [ImageLastStoreDate] [date] NULL,

      [ImageFilename] [nvarchar](400) NOT NULL,

      [ImageUniqueSOPClassUID] [nvarchar](64) NULL,

      [ImageRows] [bigint] NULL,

      [ImageColumns] [bigint] NULL,

      [ImageBitsAllocated] [bigint] NULL,

 CONSTRAINT [PK_Image] PRIMARY KEY CLUSTERED

(

      [ImageId] ASC

)WITH (PAD_INDEX  = OFF, STATISTICS_NORECOMPUTE  = OFF, IGNORE_DUP_KEY = OFF, ALLOW_ROW_LOCKS  = ON, ALLOW_PAGE_LOCKS  = ON) ON [PRIMARY],

 CONSTRAINT [IX_Image_SOPInstanceUID] UNIQUE NONCLUSTERED

(

      [SOPInstanceUID] ASC

)WITH (PAD_INDEX  = OFF, STATISTICS_NORECOMPUTE  = OFF, IGNORE_DUP_KEY = OFF, ALLOW_ROW_LOCKS  = ON, ALLOW_PAGE_LOCKS  = ON) ON [PRIMARY]

) ON [PRIMARY]

GO

/****** Object:  ForeignKey [FK_DImage_Series]    Script Date: 07/01/2013 17:44:15 ******/

ALTER TABLE [dbo].[MyInstanceTable]  WITH CHECK ADD  CONSTRAINT [FK_DImage_Series] FOREIGN KEY([ImageSeriesId])

REFERENCES [dbo].[MySeriesTable] ([SeriesId])

GO

ALTER TABLE [dbo].[MyInstanceTable] CHECK CONSTRAINT [FK_DImage_Series]

GO

/****** Object:  ForeignKey [FK_Series_Study]    Script Date: 07/01/2013 17:44:15 ******/

ALTER TABLE [dbo].[MySeriesTable]  WITH CHECK ADD  CONSTRAINT [FK_Series_Study] FOREIGN KEY([SeriesStudyId])

REFERENCES [dbo].[MyStudyTable] ([StudyId])

GO

ALTER TABLE [dbo].[MySeriesTable] CHECK CONSTRAINT [FK_Series_Study]

GO

/****** Object:  ForeignKey [FK_Study_Patient]    Script Date: 07/01/2013 17:44:15 ******/

ALTER TABLE [dbo].[MyStudyTable]  WITH CHECK ADD  CONSTRAINT [FK_Study_Patient] FOREIGN KEY([StudyPatientId])

REFERENCES [dbo].[MyPatientTable] ([PatientId])

GO

ALTER TABLE [dbo].[MyStudyTable] CHECK CONSTRAINT [FK_Study_Patient]

GO



Note:

For earlier version of SQL Server (i.e. SQL Server 2005), there is no support for the data type SqlDbType.Date.

If you are using SQL Server 2005, you can use the following script to generate the database, which instead uses the data type SqlDbType.DateTime.



Script to generate the tutorial database for SQL Server 2005

USE [master]

GO

/****** Object:  Database [MyDicomDb]    Script Date: 08/12/2013 10:39:18 ******/

CREATE DATABASE [MyDicomDb]

GO

IF (1 = FULLTEXTSERVICEPROPERTY('IsFullTextInstalled'))

begin

EXEC [MyDicomDb].[dbo].[sp_fulltext_database] @action = 'enable'

end

GO

ALTER DATABASE [MyDicomDb] SET ANSI_NULL_DEFAULT OFF

GO

ALTER DATABASE [MyDicomDb] SET ANSI_NULLS OFF

GO

ALTER DATABASE [MyDicomDb] SET ANSI_PADDING OFF

GO

ALTER DATABASE [MyDicomDb] SET ANSI_WARNINGS OFF

GO

ALTER DATABASE [MyDicomDb] SET ARITHABORT OFF

GO

ALTER DATABASE [MyDicomDb] SET AUTO_CLOSE OFF

GO

ALTER DATABASE [MyDicomDb] SET AUTO_CREATE_STATISTICS ON

GO

ALTER DATABASE [MyDicomDb] SET AUTO_SHRINK OFF

GO

ALTER DATABASE [MyDicomDb] SET AUTO_UPDATE_STATISTICS ON

GO

ALTER DATABASE [MyDicomDb] SET CURSOR_CLOSE_ON_COMMIT OFF

GO

ALTER DATABASE [MyDicomDb] SET CURSOR_DEFAULT  GLOBAL

GO

ALTER DATABASE [MyDicomDb] SET CONCAT_NULL_YIELDS_NULL OFF

GO

ALTER DATABASE [MyDicomDb] SET NUMERIC_ROUNDABORT OFF

GO

ALTER DATABASE [MyDicomDb] SET QUOTED_IDENTIFIER OFF

GO

ALTER DATABASE [MyDicomDb] SET RECURSIVE_TRIGGERS OFF

GO

ALTER DATABASE [MyDicomDb] SET  DISABLE_BROKER

GO

ALTER DATABASE [MyDicomDb] SET AUTO_UPDATE_STATISTICS_ASYNC OFF

GO

ALTER DATABASE [MyDicomDb] SET DATE_CORRELATION_OPTIMIZATION OFF

GO

ALTER DATABASE [MyDicomDb] SET TRUSTWORTHY OFF

GO

ALTER DATABASE [MyDicomDb] SET ALLOW_SNAPSHOT_ISOLATION OFF

GO

ALTER DATABASE [MyDicomDb] SET PARAMETERIZATION SIMPLE

GO

ALTER DATABASE [MyDicomDb] SET READ_COMMITTED_SNAPSHOT OFF

GO

ALTER DATABASE [MyDicomDb] SET  READ_WRITE

GO

ALTER DATABASE [MyDicomDb] SET RECOVERY FULL

GO

ALTER DATABASE [MyDicomDb] SET  MULTI_USER

GO

ALTER DATABASE [MyDicomDb] SET PAGE_VERIFY CHECKSUM

GO

ALTER DATABASE [MyDicomDb] SET DB_CHAINING OFF

GO

USE [MyDicomDb]

GO

/****** Object:  Table [dbo].[MyPatientTable]    Script Date: 08/12/2013 10:39:19 ******/

SET ANSI_NULLS ON

GO

SET QUOTED_IDENTIFIER ON

GO

CREATE TABLE [dbo].[MyPatientTable](

      [PatientId] [int] IDENTITY(1,1) NOT NULL,

      [PatientIdentification] [nvarchar](70) NOT NULL,

      [PatientName] [nvarchar](max) NOT NULL,

      [PatientBirthday] [datetime] NULL,

      [PatientSex] [nvarchar](50) NULL,

      [PatientComments] [nvarchar](200) NULL,

 CONSTRAINT [PK_Patient] PRIMARY KEY CLUSTERED

(

      [PatientId] ASC

)WITH (PAD_INDEX  = OFF, STATISTICS_NORECOMPUTE  = OFF, IGNORE_DUP_KEY = OFF, ALLOW_ROW_LOCKS  = ON, ALLOW_PAGE_LOCKS  = ON) ON [PRIMARY],

 CONSTRAINT [uc_PatientIdentification] UNIQUE NONCLUSTERED

(

      [PatientIdentification] ASC

)WITH (PAD_INDEX  = OFF, STATISTICS_NORECOMPUTE  = OFF, IGNORE_DUP_KEY = OFF, ALLOW_ROW_LOCKS  = ON, ALLOW_PAGE_LOCKS  = ON) ON [PRIMARY]

) ON [PRIMARY]

GO

/****** Object:  Table [dbo].[MyStudyTable]    Script Date: 08/12/2013 10:39:19 ******/

SET ANSI_NULLS ON

GO

SET QUOTED_IDENTIFIER ON

GO

CREATE TABLE [dbo].[MyStudyTable](

      [StudyId] [int] IDENTITY(1,1) NOT NULL,

      [StudyPatientId] [int] NOT NULL,

      [StudyStudyInstanceUID] [nvarchar](64) NOT NULL,

      [StudyStudyDate] [datetime] NULL,

      [StudyAccessionNumber] [nvarchar](64) NULL,

      [StudyStudyDescription] [nvarchar](256) NULL,

      [StudyReferringPhysiciansName] [nvarchar](50) NULL,

      [StudyStudyId] [nvarchar](16) NULL,

 CONSTRAINT [PK_Study] PRIMARY KEY CLUSTERED

(

      [StudyId] ASC

)WITH (PAD_INDEX  = OFF, STATISTICS_NORECOMPUTE  = OFF, IGNORE_DUP_KEY = OFF, ALLOW_ROW_LOCKS  = ON, ALLOW_PAGE_LOCKS  = ON) ON [PRIMARY],

 CONSTRAINT [uc_StudyStudyInstanceUID] UNIQUE NONCLUSTERED

(

      [StudyStudyInstanceUID] ASC

)WITH (PAD_INDEX  = OFF, STATISTICS_NORECOMPUTE  = OFF, IGNORE_DUP_KEY = OFF, ALLOW_ROW_LOCKS  = ON, ALLOW_PAGE_LOCKS  = ON) ON [PRIMARY]

) ON [PRIMARY]

GO

/****** Object:  Table [dbo].[MySeriesTable]    Script Date: 08/12/2013 10:39:19 ******/

SET ANSI_NULLS ON

GO

SET QUOTED_IDENTIFIER ON

GO

CREATE TABLE [dbo].[MySeriesTable](

      [SeriesId] [int] IDENTITY(1,1) NOT NULL,

      [SeriesStudyId] [int] NOT NULL,

      [SeriesSeriesInstanceUID] [nvarchar](64) NOT NULL,

      [SeriesBodyPartExamined] [nvarchar](16) NULL,

      [SeriesSeriesNumber] [int] NULL,

      [SeriesSeriesDescription] [nvarchar](300) NULL,

      [SeriesSeriesDate] [datetime] NULL,

      [SeriesModality] [nvarchar](50) NULL,

 CONSTRAINT [PK_Series] PRIMARY KEY CLUSTERED

(

      [SeriesId] ASC

)WITH (PAD_INDEX  = OFF, STATISTICS_NORECOMPUTE  = OFF, IGNORE_DUP_KEY = OFF, ALLOW_ROW_LOCKS  = ON, ALLOW_PAGE_LOCKS  = ON) ON [PRIMARY],

 CONSTRAINT [uc_SerieSeriesInstanceUID] UNIQUE NONCLUSTERED

(

      [SeriesSeriesInstanceUID] ASC,

      [SeriesStudyId] ASC

)WITH (PAD_INDEX  = OFF, STATISTICS_NORECOMPUTE  = OFF, IGNORE_DUP_KEY = OFF, ALLOW_ROW_LOCKS  = ON, ALLOW_PAGE_LOCKS  = ON) ON [PRIMARY]

) ON [PRIMARY]

GO

/****** Object:  Table [dbo].[MyInstanceTable]    Script Date: 08/12/2013 10:39:19 ******/

SET ANSI_NULLS ON

GO

SET QUOTED_IDENTIFIER ON

GO

CREATE TABLE [dbo].[MyInstanceTable](

      [ImageId] [bigint] IDENTITY(1,1) NOT NULL,

      [ImageSeriesId] [int] NOT NULL,

      [SOPInstanceUID] [nvarchar](64) NOT NULL,

      [ImageImageNumber] [int] NOT NULL,

      [ImageLastStoreDate] [datetime] NULL,

      [ImageFilename] [nvarchar](400) NOT NULL,

      [ImageUniqueSOPClassUID] [nvarchar](64) NULL,

      [ImageRows] [bigint] NULL,

      [ImageColumns] [bigint] NULL,

      [ImageBitsAllocated] [bigint] NULL,

 CONSTRAINT [PK_Image] PRIMARY KEY CLUSTERED

(

      [ImageId] ASC

)WITH (PAD_INDEX  = OFF, STATISTICS_NORECOMPUTE  = OFF, IGNORE_DUP_KEY = OFF, ALLOW_ROW_LOCKS  = ON, ALLOW_PAGE_LOCKS  = ON) ON [PRIMARY],

 CONSTRAINT [IX_Image_SOPInstanceUID] UNIQUE NONCLUSTERED

(

      [SOPInstanceUID] ASC

)WITH (PAD_INDEX  = OFF, STATISTICS_NORECOMPUTE  = OFF, IGNORE_DUP_KEY = OFF, ALLOW_ROW_LOCKS  = ON, ALLOW_PAGE_LOCKS  = ON) ON [PRIMARY]

) ON [PRIMARY]

GO

/****** Object:  ForeignKey [FK_Study_Patient]    Script Date: 08/12/2013 10:39:19 ******/

ALTER TABLE [dbo].[MyStudyTable]  WITH CHECK ADD  CONSTRAINT [FK_Study_Patient] FOREIGN KEY([StudyPatientId])

REFERENCES [dbo].[MyPatientTable] ([PatientId])

GO

ALTER TABLE [dbo].[MyStudyTable] CHECK CONSTRAINT [FK_Study_Patient]

GO

/****** Object:  ForeignKey [FK_Series_Study]    Script Date: 08/12/2013 10:39:19 ******/

ALTER TABLE [dbo].[MySeriesTable]  WITH CHECK ADD  CONSTRAINT [FK_Series_Study] FOREIGN KEY([SeriesStudyId])

REFERENCES [dbo].[MyStudyTable] ([StudyId])

GO

ALTER TABLE [dbo].[MySeriesTable] CHECK CONSTRAINT [FK_Series_Study]

GO

/****** Object:  ForeignKey [FK_DImage_Series]    Script Date: 08/12/2013 10:39:19 ******/

ALTER TABLE [dbo].[MyInstanceTable]  WITH CHECK ADD  CONSTRAINT [FK_DImage_Series] FOREIGN KEY([ImageSeriesId])

REFERENCES [dbo].[MySeriesTable] ([SeriesId])

GO

ALTER TABLE [dbo].[MyInstanceTable] CHECK CONSTRAINT [FK_DImage_Series]

GO



Step 4: Modify GlobalPacs.config to use the New Database

<section name="storageDataAccessConfiguration175" type="Leadtools.Medical.DataAccessLayer.Configuration.DataAccessSettings, Leadtools.Medical.DataAccessLayer, Version=19.0.4.0, Culture=neutral, PublicKeyToken=9cf889f53ea9b907" />



<section name="myStorageDataAccessConfiguration175" type="Leadtools.Medical.DataAccessLayer.Configuration.DataAccessSettings, Leadtools.Medical.DataAccessLayer, Version=19.0.4.0, Culture=neutral, PublicKeyToken=9cf889f53ea9b907" />





<storageDataAccessConfiguration175 connectionName="LeadStorageServer19_32">

        <!--<add productName="StorageServer" serviceName="L19_PACS_SCP32"

            connectionName="LeadStorageServer19_32" />-->

        <add productName="Workstation" serviceName="L19_WS_SERVER32"

            connectionName="MedicalWorkstation19_32" />

    </storageDataAccessConfiguration175>



  <myStorageDataAccessConfiguration175 connectionName="MyDicomDb">

    <add productName="StorageServer" serviceName=" L19_PACS_SCP32" connectionName="MyDicomDb" />

  </myStorageDataAccessConfiguration175>



    <connectionStrings>

        <add name="LeadStorageServer19_32" connectionString="Data Source=medical-test;Failover Partner=;Initial Catalog=LeadStorageServer19_32;Integrated Security=False;User ID=sa;Password=sa;Pooling=True"

            providerName="System.Data.SqlClient" />

      <add name="MyDicomDb" connectionString="Data Source=medical-test;Failover Partner=;Initial Catalog= MyDicomDb;Integrated Security=False;User ID=sa;Password=sa;Pooling=True"

    providerName="System.Data.SqlClient" />

</connectionStrings>



Step 5: Copy the following files to {LEAD Installation BIN}



Step 6: Rebuild the CSStorageServerManagerDemo_Original.exe with modifications

// Code changes for Tutorial

using Leadtools.Medical.Storage.DataAccessLayer.Interface;

using My.Medical.Storage.DataAccessLayer;

using My.Medical.Storage.DataAccessLayer.Entities;

 // Code changes for Tutorial
  • Add the following to the Run() method, immediately after the call to CreateConfigurationServices ( service ) ;

// Code changes for Tutorial

DataAccessServiceLocator.Register<IPatientInfo>(new MyPatientInfo());

DataAccessServiceLocator.Register<IStudyInfo>(new MyStudyInfo());

DataAccessServiceLocator.Register<ISeriesInfo>(new MySeriesInfo());

DataAccessServiceLocator.Register<IInstanceInfo>(new MyInstanceInfo());



RegisteredEntities.Items.Add(RegisteredEntities.PatientEntityName, typeof(MyPatient));

RegisteredEntities.Items.Add(RegisteredEntities.StudyEntityName, typeof(MyStudy));

RegisteredEntities.Items.Add(RegisteredEntities.SeriesEntityName, typeof(MySeries));

RegisteredEntities.Items.Add(RegisteredEntities.InstanceEntityName, typeof(MyInstance));

// Code changes for Tutorial
  • In the RegisterDataAccessLayers() method, change the following statement to create an instance of MyStorageDataAccessConfigurastionView.  The change is in yellow highlight:

storageAgent = DataAccessFactory.GetInstance ( new MyStorageDataAccessConfigurationView(configuration, DicomDemoSettingsManager.ProductNameStorageServer, null)).CreateDataAccessAgent <IStorageDataAccessAgent> ( ) ;



bool dbConfigured = GlobalPacsUpdater.IsDbComponentsConfigured(productsToCheck, out message);



dbConfigured = true;



// Code changes for Tutorial

using My.Medical.Storage.DataAccessLayer;

using My.Medical.Storage.DataAccessLayer.Entities;

using Leadtools.Dicom.Common.DataTypes;

using Leadtools.Medical.Winforms.Control;

using Leadtools.Dicom.Common.Extensions;

// Code changes for Tutorial

private void MyPrepareSearch(MatchingParameterCollection matchingCollection)

      {

         DicomQueryParams q = __DbManager.GetDicomQueryParams();



         try

         {

            MatchingParameterList matchingList = new MatchingParameterList();

            MyPatient patient = new MyPatient();

            MyStudy study = new MyStudy();

            MySeries series = new MySeries();



            matchingList.Add(patient);

            matchingList.Add(study);

            matchingList.Add(series);



            matchingCollection.Add(matchingList);

            study.StudyAccessionNumber = q.AccessionNumber;

            patient.PatientIdentification = q.PatientId;



            if (!string.IsNullOrEmpty(q.PatientName.FamilyName))

               patient.PatientName = q.PatientName.FamilyName.TrimEnd('*') + "*";



            if (!string.IsNullOrEmpty(q.PatientName.GivenName))

               patient.PatientName = q.PatientName.GivenName.TrimEnd('*') + "*";



            if (!string.IsNullOrEmpty(q.Modalities))

               series.SeriesModality = q.Modalities.Replace(",", "\\"); ;



            if (!string.IsNullOrEmpty(q.SeriesDescription))

               series.SeriesSeriesDescription = q.SeriesDescription.TrimEnd('*') + "*";



            if (!string.IsNullOrEmpty(q.ReferringPhysiciansName.FamilyName))

               study.StudyReferringPhysiciansName = q.ReferringPhysiciansName.FamilyName.TrimEnd('*') + "*"; ;



            if (!string.IsNullOrEmpty(q.ReferringPhysiciansName.GivenName))

               study.StudyReferringPhysiciansName = q.ReferringPhysiciansName.GivenName.TrimEnd('*') + "*"; ;



            if (q.StudyFromChecked || q.StudyToChecked)

            {

               DateRange studyDateRange = new DateRange();



               if (q.StudyFromChecked)

               {

                  studyDateRange.StartDate = q.StudyFromDate;

               }



               if (q.StudyToChecked)

               {

                  studyDateRange.EndDate = q.StudyToDate;

               }



               study.StudyStudyDate = studyDateRange;

            }



            if (q.StorageDateChecked)

            {

               MyInstance instance = new MyInstance();

               DateRange dateRange = new DateRange();

               DateRangeFilter StorageDateRangeFilter = q.StorageDateRange;

               string startDate = StorageDateRangeFilter.DateRangeFrom;

               string endDate = StorageDateRangeFilter.DateRangeTo;



               if (StorageDateRangeFilter.SelectedDateFilter == DateRangeFilter.RangeFilterType.DateRange)

               {

                  if (!string.IsNullOrEmpty(startDate))

                  {

                     dateRange.StartDate = DateTime.Parse(startDate);

                  }



                  if (!string.IsNullOrEmpty(endDate))

                  {

                     dateRange.EndDate = DateTime.Parse(endDate);

                  }

               }

               else if (StorageDateRangeFilter.SelectedDateFilter == DateRangeFilter.RangeFilterType.Months)

               {

                  DateTime lastMonthsDate = DateTime.Now.SubtractMonths(Convert.ToInt32(StorageDateRangeFilter.LastMonths));



                  dateRange.StartDate = lastMonthsDate;

                  dateRange.EndDate = DateTime.Now;

               }

               else

               {

                  TimeSpan subtractionDays = new TimeSpan(Convert.ToInt32(StorageDateRangeFilter.LastDays),

                                                   DateTime.Now.Hour,

                                                   DateTime.Now.Minute,

                                                   DateTime.Now.Second,

                                                   DateTime.Now.Millisecond);



                  dateRange.StartDate = DateTime.Now.Subtract(subtractionDays);

                  dateRange.EndDate = DateTime.Now;

               }



               instance.ImageLastStoreDate = dateRange;

               matchingList.Add(instance);

            }



            study.StudyStudyId = q.StudyId;

         }

         catch (Exception exception)

         {

            throw exception;

         }

         finally

         {

            // do nothing ;

         }

      }
  • In the CreateContainerPages( )  method, assign the PrepareSearchDelegate

StorageDatabaseManager dbManager = new StorageDatabaseManager ( ) ;

dbManager.PrepareSearch = new PrepareSearchDelegate(MyPrepareSearch);
  • In the CreateContainerPages( )  method, add a call to get the query parameters

ServerState.Instance.LicenseChanged += new EventHandler(Instance_LicenseChanged);

dbManager.GetDicomQueryParams();
  • In the ConfigureServerInfoConrol ( )  method, modify the GetConnectionString call to use the custom configuration

storage = GetConnectionString(configPacs, configMachine,

            new MyStorageDataAccessConfigurationView(configPacs, PacsProduct.ProductName, null).DataAccessSettingsSectionName);
  • Build CSStorageServerManager.exe

Step 7: Modify application configuration files to use the storage catalog and DataSet Schema

·         Modify Leadtools.Dicom.Server.exe.config (additions shown highlighted)

<?xml version="1.0" encoding="utf-8" ?>

<configuration>

  <configSections>

    <section name="leadLogging" type="Leadtools.Logging.Configuration.ConfigSectionHandler, Leadtools.Logging" />

    <section name="xmlStorageCatalogSettings" type="Leadtools.Medical.Storage.DataAccessLayer.XmlStorageCatalogSettings, Leadtools.Medical.Storage.DataAccessLayer" />



    <sectionGroup name="applicationSettings" type="System.Configuration.ApplicationSettingsGroup, System, Version=2.0.0.0, Culture=neutral, PublicKeyToken=b77a5c561934e089" >

      <section name="Leadtools.Dicom.Service.Properties.Settings" type="System.Configuration.ClientSettingsSection, System, Version=2.0.0.0, Culture=neutral, PublicKeyToken=b77a5c561934e089" requirePermission="false" />

    </sectionGroup>

  </configSections>

  <leadLogging>

    <channels>

      <channel name="DataAccessLoggingChannel" type="Leadtools.Medical.Logging.DataAccessLayer.DataAccessLoggingChannel, Leadtools.Medical.Logging.DataAccessLayer" />

    </channels>

  </leadLogging>

     <xmlStorageCatalogSettings catalogPath="C:\LEADTOOLS 19\Bin\Dotnet4\Win32\MyCatalog.xml"/>

  <runtime>

    <generatePublisherEvidence enabled="false"/>

    <assemblyBinding xmlns="urn:schemas-microsoft-com:asm.v1">

      <dependentAssembly>

        <assemblyIdentity name="System.Data.SqlServerCe" publicKeyToken="89845DCD8080CC91" culture="neutral"/>

        <bindingRedirect oldVersion="0.0.0.0-3.5.1.0" newVersion="3.5.1.0"/>

      </dependentAssembly>

      <dependentAssembly>

        <assemblyIdentity name="Microsoft.Practices.ObjectBuilder2" publicKeyToken="31BF3856AD364E35" culture="neutral"/>

        <bindingRedirect oldVersion="0.0.0.0-2.2.0.0" newVersion="2.2.0.0"/>

      </dependentAssembly>

      <dependentAssembly>

        <assemblyIdentity name="Microsoft.Practices.Unity" publicKeyToken="31BF3856AD364E35" culture="neutral"/>

        <bindingRedirect oldVersion="0.0.0.0-1.2.0.0" newVersion="1.2.0.0"/>

      </dependentAssembly>

    </assemblyBinding>

  </runtime>

  <appSettings>

    <add key="LicenseFile" value=""/>

    <add key="DeveloperKey" value=""/>

    <add key="DataSetSchema" value=" C:\LEADTOOLS 19\Bin\Dotnet4\Win32\MyDataSet.xsd"/>

  </appSettings>

</configuration>

o

·         Modify CSStorageServerManagerDemo.exe.config (additions shown hilighted)

<?xml version="1.0"?>

<configuration>

  <configSections>

    <section name="xmlStorageCatalogSettings" type="Leadtools.Medical.Storage.DataAccessLayer.XmlStorageCatalogSettings, Leadtools.Medical.Storage.DataAccessLayer" />

  </configSections>

  <xmlStorageCatalogSettings catalogPath="C:\LEADTOOLS 19\Bin\Dotnet4\Win32\MyCatalog.xml"/>

  <runtime>

      <assemblyBinding xmlns="urn:schemas-microsoft-com:asm.v1">

         <dependentAssembly>

            <assemblyIdentity name="System.Data.SqlServerCe" publicKeyToken="89845DCD8080CC91" culture="neutral"/>

            <bindingRedirect oldVersion="0.0.0.0-3.5.1.0" newVersion="3.5.1.0"/>

         </dependentAssembly>

         <dependentAssembly>

            <assemblyIdentity name="Microsoft.Practices.ObjectBuilder2" publicKeyToken="31BF3856AD364E35" culture="neutral"/>

            <bindingRedirect oldVersion="0.0.0.0-2.2.0.0" newVersion="2.2.0.0"/>

         </dependentAssembly>

         <dependentAssembly>

            <assemblyIdentity name="Microsoft.Practices.Unity" publicKeyToken="31BF3856AD364E35" culture="neutral"/>

            <bindingRedirect oldVersion="0.0.0.0-1.2.0.0" newVersion="1.2.0.0"/>

         </dependentAssembly>

            </assemblyBinding>

   </runtime>

  <appSettings>

    <add key="DataSetSchema" value=" C:\LEADTOOLS 19\Bin\Dotnet4\Win32\MyDataSet.xsd"/>

  </appSettings>

    </configuration>




Step 8: Configure the Storage Server Manager to use MyQueryIOD.xml





Step 9: (Optional) Configure the Forward feature

Script to create the Forward table

USE [MyDicomDb]

GO



/****** Object:  Table [dbo].[Forward]    Script Date: 09/04/2013 15:55:39 ******/

SET ANSI_NULLS ON

GO



SET QUOTED_IDENTIFIER ON

GO



CREATE TABLE [dbo].[Forward](

      [SOPInstanceUID] [nvarchar](64) NOT NULL,

      [ForwardDate] [datetime] NULL,

      [ExpireDate] [datetime] NULL,

 CONSTRAINT [PK_Forward] PRIMARY KEY CLUSTERED

(

      [SOPInstanceUID] ASC

)WITH (PAD_INDEX  = OFF, STATISTICS_NORECOMPUTE  = OFF, IGNORE_DUP_KEY = OFF, ALLOW_ROW_LOCKS  = ON, ALLOW_PAGE_LOCKS  = ON) ON [PRIMARY]

) ON [PRIMARY]



GO



ALTER TABLE [dbo].[Forward]  WITH CHECK ADD  CONSTRAINT [FK_Forward_Instance] FOREIGN KEY([SOPInstanceUID])

REFERENCES [dbo].[MyInstanceTable] ([SOPInstanceUID])

ON UPDATE CASCADE

ON DELETE CASCADE

GO



ALTER TABLE [dbo].[Forward] CHECK CONSTRAINT [FK_Forward_Instance]

GO
  • Start Visual Studio
  • Open the Leadtools.Medical.Forward.DataAccessLayer project
    • The default location is C:\LEADTOOLS 19\Examples\PACSFramework\CS\Leadtools.Medical.Forward.DataAccessLayer
  • Open the ForwardDBDataAccessAgent.cs file
  • Add the following to the ForwardDBDataAccessAgent constructor:

public ForwardDBDataAccessAgent(string connectionString)

      {

#if TUTORIAL_CUSTOM_DATABASE

      _instanceTableName         = @"MyInstanceTable";

      _columnNameSOPInstanceUID  = @"SOPInstanceUID";

      _columnNameReferencedFile  = @"ImageFilename";

#endif

         ConnectionString = connectionString;

      }

·         Open the properties page

·         Add TUTORIAL_CUSTOM_DATABASE from the Conditional compilation symbols

·         Build the project to generate the new Leadtools.Medical.Forward.DataAccessLayer.dll assembly.

    <forwardConfiguration175>

      <!--<add productName="StorageServer" serviceName="L19_PACS_SCP32" connectionName="LeadStorageServer19_32" />-->

      <add productName="StorageServer" serviceName="L19_PACS_SCP32" connectionName="MyDicomDb" />

    </forwardConfiguration175>



Step 10: Verify that the Storage Server Manager is using the Custom Database

Error processing SSI file
