LEADTOOLS Annotations for WPF and Silverlight (Leadtools.Windows.Annotations assembly)
Show in webframe

Tension Property (AnnCurveObject)






Leadtools.Windows.Annotations Namespace > AnnCurveObject Class : Tension Property
Gets or sets a value that specifies the amount that this AnnCurveObject curve bends between control points. This is a dependency property.
Syntax
public double Tension {get; set;}
'Declaration

Public Property Tension As Double
'Usage

Dim instance As AnnCurveObject
Dim value As Double

instance.Tension = value

value = instance.Tension
















public:
property double Tension {
   double get();
   void set (    double value);
}











Property Value
A value that specifies the amount that this AnnCurveObject curve bends between control points.





Remarks

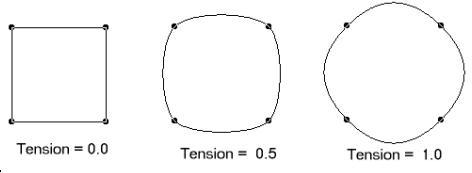

            Valid values are between 0.0 and 1.0, where 0.0 indicates straight lines, and 1.0 indicates lines with the highest curvature. A typical value is 0.5. These values for Tension for a Closed Curve object are shown in the following bitmap:













Example
For XAML example, refer to AnnCurveObject.



For C#/VB examples, refer to AnnCurveObject.





Requirements
Target Platforms



See Also
Reference
AnnCurveObject Class

AnnCurveObject Members
