InsertElement Method
See Also
Leadtools.Dicom Namespace > DicomDataSet Class : InsertElement Method




Inserts a new element in the Data Set.

Overload List

OverloadDescription
InsertElement(DicomElement,Boolean,DicomTagType,DicomVRType,Boolean,Int32) Inserts a new element in the Data Set.
InsertElement(DicomElement,Boolean,DicomTagType,Boolean,Int32) Inserts a new element in the Data Set.
InsertElement(DicomElement,Boolean,Int64,DicomVRType,Boolean,Int32) Inserts a new element in the Data Set.

Example

For an example, refer to Load.

Remarks

The illustrations below show how items are added to the Data Set (internally maintained as a tree), based on the value of child.

For the sake of these illustrations, the order of siblings is top to bottom. Therefore, since added items become the last sibling or the last child, these are drawn at the bottom of the appropriate group of items.

In this illustration, neighbor points to Item 1 and child is false. The new item is added as the last sibling of Item 1.

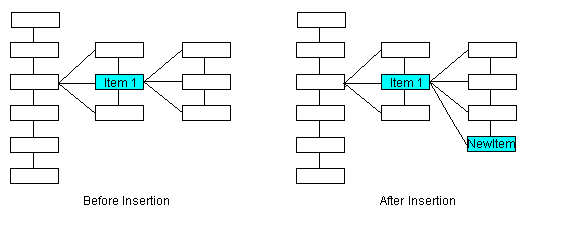

In this illustration, neighbor points to Item 1 and child is true. The new item is added as the last child of Item 1.

Requirements

Target Platforms: Microsoft .NET Framework 2.0, Windows 98, Windows NT 4.0, Windows Millennium Edition, Windows 2000, Windows XP Home Edition, Windows XP Professional, Windows Server 2003 family

See Also

Leadtools.Dicom requires a Medical toolkit license and unlock key. For more information, refer to: Raster Pro/Document/Medical Features
