RasterOpenDialog Class
See Also  Members   Example
Leadtools.WinForms.CommonDialogs.File Namespace : RasterOpenDialog Class




Displays the Open dialog box, and gets the options for Load.

Object Model


Syntax

Visual Basic (Declaration)
Public Class RasterOpenDialog
Visual Basic (Usage)Copy Code
Dim instance As RasterOpenDialog
C#
public class RasterOpenDialog
Managed Extensions for C++
public __gc class RasterOpenDialog
C++/CLI
public ref class RasterOpenDialog

Example

Visual BasicCopy Code
Public Sub openDlg_Help(ByVal sender As Object, ByVal e As RasterDialogHelpEventArgs) Handles openDlg.Help
   Select Case e.Dialog
      Case RasterDialogHelpName.Open
         MessageBox.Show("Open dialog Help")
         Exit Select
      Case RasterDialogHelpName.LoadOptions
         MessageBox.Show("Load Options dialog Help")
         Exit Select
   End Select
End Sub

Public Sub openDlg_LoadProgress(ByVal sender As Object, ByVal e As RasterDialogLoadProgressEventArgs) Handles openDlg.LoadProgress
   Dim displayText As String

   displayText = "(" & e.FilePercent.ToString() & "%) of" & e.LoadRasterFileData.Name & "file is loaded"
   MessageBox.Show(displayText)

   displayText = "(" & e.TotalPercent.ToString() & "%) of all file(s) loading process is completed"
   MessageBox.Show(displayText)
End Sub

WithEvents openDlg As RasterOpenDialog


Public Sub RasterOpenDialogExample()
   Leadtools.Codecs.RasterCodecs.Startup()
   Dim rasterCodecs As RasterCodecs = New RasterCodecs()

   openDlg = New RasterOpenDialog(rasterCodecs)

   openDlg.Filter = New RasterOpenDialogLoadFormat() {New RasterOpenDialogLoadFormat("All Files", "*.*"), New RasterOpenDialogLoadFormat("LEAD", "*.cmp")}

   openDlg.CheckFileExists = True
   openDlg.CheckPathExists = True
   openDlg.DefaultExt = "cmp"
   openDlg.DereferenceLinks = True
   openDlg.EnableSizing = True
   openDlg.FileName = "Image.cmp"
   openDlg.FilterIndex = 2
   openDlg.GenerateThumbnail = False
   openDlg.InitialDirectory = "C:\Program Files\LEAD Technologies\LEADTOOLS 15\Images\"
   openDlg.LoadCompressed = True
   openDlg.LoadFileImage = False
   openDlg.LoadOptions = False
   openDlg.LoadRotated = False
   openDlg.Multiselect = True
   openDlg.PreviewWindowVisible = True
   openDlg.ShowDeletePage = True
   openDlg.ShowFileInformation = True
   openDlg.ShowGeneralOptions = True
   openDlg.ShowHelp = True
   openDlg.ShowLoadCompressed = True
   openDlg.ShowLoadOptions = True
   openDlg.ShowLoadRotated = True
   openDlg.ShowMultipage = True
   openDlg.ShowPdfOptions = True
   openDlg.ShowXpsOptions = True
   openDlg.ShowPreview = True
   openDlg.ShowProgressive = True
   openDlg.ShowRasterOptions = True
   openDlg.ShowTotalPages = True
   openDlg.Title = "Open Dialog"
   openDlg.UseFileStamptoPreview = True

   If DialogResult.OK = openDlg.ShowDialog(Nothing) Then
      Dim i As Integer = 0
      Do While i < openDlg.OpenedFileData.Count
         Dim fileDataItem As RasterDialogFileData = CType(openDlg.OpenedFileData(i), RasterDialogFileData)

         ' this is not an image file.
         If fileDataItem.Options Is Nothing Then
            GoTo Continue1
         End If

         Select Case fileDataItem.Options.FileType
            Case RasterDialogFileOptionsType.Meta
               If Not Nothing Is fileDataItem.Options.MetaOptions Then
                  rasterCodecs.Options.Wmf.Load.XResolution = fileDataItem.Options.MetaOptions.XResolution
                  rasterCodecs.Options.Wmf.Load.YResolution = fileDataItem.Options.MetaOptions.XResolution
               End If
               Exit Select

            Case RasterDialogFileOptionsType.Pdf
               If (Not Nothing Is fileDataItem.Options.PdfOptions) AndAlso rasterCodecs.Options.Pdf.IsEngineInstalled Then
                  rasterCodecs.Options.Pdf.Load.DisplayDepth = fileDataItem.Options.PdfOptions.DisplayDepth
                  rasterCodecs.Options.Pdf.Load.GraphicsAlpha = fileDataItem.Options.PdfOptions.GraphicsAlpha

                  If Not fileDataItem.Options.PdfOptions.Password Is Nothing Then
                     rasterCodecs.Options.Pdf.Load.Password = fileDataItem.Options.PdfOptions.Password
                  End If

                  rasterCodecs.Options.Pdf.Load.TextAlpha = fileDataItem.Options.PdfOptions.TextAlpha
                  rasterCodecs.Options.Pdf.Load.UseLibFonts = fileDataItem.Options.PdfOptions.UseLibFonts
                  rasterCodecs.Options.Pdf.Load.XResolution = fileDataItem.Options.PdfOptions.XResolution
                  rasterCodecs.Options.Pdf.Load.YResolution = fileDataItem.Options.PdfOptions.YResolution
               End If
               Exit Select

            Case RasterDialogFileOptionsType.Misc
               If Nothing Is fileDataItem.Options.MiscOptions Then
                  GoTo Continue1
               End If

               Select Case fileDataItem.FileInfo.Format
                  Case RasterImageFormat.Jbig
                     rasterCodecs.Options.Jbig.Load.Resolution = New Size(fileDataItem.Options.MiscOptions.XResolution, fileDataItem.Options.MiscOptions.YResolution)
                     Exit Select

                  Case RasterImageFormat.Cmw
                     rasterCodecs.Options.Jpeg2000.Load.CmwResolution = New Size(fileDataItem.Options.MiscOptions.XResolution, fileDataItem.Options.MiscOptions.YResolution)
                     Exit Select

                  Case RasterImageFormat.Jp2
                     rasterCodecs.Options.Jpeg2000.Load.Jp2Resolution = New Size(fileDataItem.Options.MiscOptions.XResolution, fileDataItem.Options.MiscOptions.YResolution)
                     Exit Select

                  Case RasterImageFormat.J2k
                     rasterCodecs.Options.Jpeg2000.Load.J2kResolution = New Size(fileDataItem.Options.MiscOptions.XResolution, fileDataItem.Options.MiscOptions.YResolution)
                     Exit Select
               End Select
               Exit Select
            Case RasterDialogFileOptionsType.Xps
               rasterCodecs.Options.Xps.Load.Resolution = New Size(fileDataItem.Options.XpsOptions.XResolution, fileDataItem.Options.XpsOptions.YResolution)
               Exit Select
         End Select

         rasterCodecs.Options.Load.Passes = fileDataItem.Passes
         rasterCodecs.Options.Load.Rotated = fileDataItem.LoadRotated
         rasterCodecs.Options.Load.Compressed = fileDataItem.LoadCompressed

         Dim loadedImage As RasterImage = rasterCodecs.Load(fileDataItem.Name, 0, CodecsLoadByteOrder.BgrOrGray, fileDataItem.PageNumber, fileDataItem.PageNumber)

         ' COPY THE 'loadedImage' IMAGE.

         loadedImage.Dispose()
Continue1:
         i += 1
      Loop
   End If
   Leadtools.Codecs.RasterCodecs.Shutdown()
End Sub
C#Copy Code
public void openDlg_Help(object sender, RasterDialogHelpEventArgs e)
{
   switch(e.Dialog)
   {
      case RasterDialogHelpName.Open:
         {
            MessageBox.Show("Open dialog Help");
            break;
         }
      case RasterDialogHelpName.LoadOptions:
         {
            MessageBox.Show("Load Options dialog Help");
            break;
         }
   }
}

public void openDlg_LoadProgress(object sender, RasterDialogLoadProgressEventArgs e)
{
   string displayText;

   displayText = "(" + e.FilePercent.ToString() + "%) of" + e.LoadRasterFileData.Name + "file is loaded";
   MessageBox.Show(displayText);

   displayText = "(" + e.TotalPercent.ToString() + "%) of all file(s) loading process is completed";
   MessageBox.Show(displayText);
}


public void RasterOpenDialogExample()
{
   RasterCodecs.Startup();
   RasterCodecs rasterCodecs = new RasterCodecs();

   RasterOpenDialog openDlg = new RasterOpenDialog(rasterCodecs);

   openDlg.Filter = new RasterOpenDialogLoadFormat[]
   {
      new RasterOpenDialogLoadFormat ( "All Files", "*.*" ),
      new RasterOpenDialogLoadFormat ( "LEAD", "*.cmp" )
   };

   openDlg.CheckFileExists = true;
   openDlg.CheckPathExists = true;
   openDlg.DefaultExt = "cmp";
   openDlg.DereferenceLinks = true;
   openDlg.EnableSizing = true;
   openDlg.FileName = "Image.cmp";
   openDlg.FilterIndex = 2;
   openDlg.GenerateThumbnail = false;
   openDlg.InitialDirectory = @"C:\Program Files\LEAD Technologies\LEADTOOLS 15\Images\";
   openDlg.LoadCompressed = true;
   openDlg.LoadFileImage = false;
   openDlg.LoadOptions = false;
   openDlg.LoadRotated = false;
   openDlg.Multiselect = true;
   openDlg.PreviewWindowVisible = true;
   openDlg.ShowDeletePage = true;
   openDlg.ShowFileInformation = true;
   openDlg.ShowGeneralOptions = true;
   openDlg.ShowHelp = true;
   openDlg.ShowLoadCompressed = true;
   openDlg.ShowLoadOptions = true;
   openDlg.ShowLoadRotated = true;
   openDlg.ShowMultipage = true;
   openDlg.ShowPdfOptions = true;
   openDlg.ShowXpsOptions = true;
   openDlg.ShowPreview = true;
   openDlg.ShowProgressive = true;
   openDlg.ShowRasterOptions = true;
   openDlg.ShowTotalPages = true;
   openDlg.Title = "Open Dialog";
   openDlg.UseFileStamptoPreview = true;
   openDlg.Help += new EventHandler<RasterDialogHelpEventArgs>(openDlg_Help);

   // if you set "openDlg.LoadFileImage = true" this event will be fired
   openDlg.LoadProgress += new EventHandler<RasterDialogLoadProgressEventArgs>(openDlg_LoadProgress);

   if(DialogResult.OK == openDlg.ShowDialog(null))
   {
      for(int i = 0; i < openDlg.OpenedFileData.Count; i++)
      {
         RasterDialogFileData fileDataItem = openDlg.OpenedFileData[i];

         // this is not an image file.
         if(fileDataItem.Options == null)
         {
            continue;
         }

         switch(fileDataItem.Options.FileType)
         {
            case RasterDialogFileOptionsType.Meta:
               {
                  if(null != fileDataItem.Options.MetaOptions)
                  {
                     rasterCodecs.Options.Wmf.Load.XResolution = fileDataItem.Options.MetaOptions.XResolution;
                     rasterCodecs.Options.Wmf.Load.YResolution = fileDataItem.Options.MetaOptions.XResolution;
                  }
                  break;
               }

            case RasterDialogFileOptionsType.Pdf:
               {
                  if((null != fileDataItem.Options.PdfOptions) &&
                        rasterCodecs.Options.Pdf.IsEngineInstalled)
                  {
                     rasterCodecs.Options.Pdf.Load.DisplayDepth = fileDataItem.Options.PdfOptions.DisplayDepth;
                     rasterCodecs.Options.Pdf.Load.GraphicsAlpha = fileDataItem.Options.PdfOptions.GraphicsAlpha;

                     if(fileDataItem.Options.PdfOptions.Password != null)
                     {
                        rasterCodecs.Options.Pdf.Load.Password = fileDataItem.Options.PdfOptions.Password;
                     }

                     rasterCodecs.Options.Pdf.Load.TextAlpha = fileDataItem.Options.PdfOptions.TextAlpha;
                     rasterCodecs.Options.Pdf.Load.UseLibFonts = fileDataItem.Options.PdfOptions.UseLibFonts;
                     rasterCodecs.Options.Pdf.Load.XResolution = fileDataItem.Options.PdfOptions.XResolution;
                     rasterCodecs.Options.Pdf.Load.YResolution = fileDataItem.Options.PdfOptions.YResolution;
                  }
                  break;
               }

            case RasterDialogFileOptionsType.Misc:
               {
                  if(null == fileDataItem.Options.MiscOptions)
                  {
                     continue;
                  }

                  switch(fileDataItem.FileInfo.Format)
                  {
                     case RasterImageFormat.Jbig:
                        {
                           rasterCodecs.Options.Jbig.Load.Resolution = new Size(fileDataItem.Options.MiscOptions.XResolution,
                              fileDataItem.Options.MiscOptions.YResolution);
                           break;
                        }

                     case RasterImageFormat.Cmw:
                        {
                           rasterCodecs.Options.Jpeg2000.Load.CmwResolution = new Size(fileDataItem.Options.MiscOptions.XResolution,
                              fileDataItem.Options.MiscOptions.YResolution);
                           break;
                        }

                     case RasterImageFormat.Jp2:
                        {
                           rasterCodecs.Options.Jpeg2000.Load.Jp2Resolution = new Size(fileDataItem.Options.MiscOptions.XResolution,
                              fileDataItem.Options.MiscOptions.YResolution);
                           break;
                        }

                     case RasterImageFormat.J2k:
                        {
                           rasterCodecs.Options.Jpeg2000.Load.J2kResolution = new Size(fileDataItem.Options.MiscOptions.XResolution,
                              fileDataItem.Options.MiscOptions.YResolution);
                           break;
                        }
                  }
                  break;
               }
            case RasterDialogFileOptionsType.Xps:
               {
                  rasterCodecs.Options.Xps.Load.Resolution = new Size(fileDataItem.Options.XpsOptions.XResolution,
                     fileDataItem.Options.XpsOptions.YResolution);

                  break;
               }
         }

         rasterCodecs.Options.Load.Passes = fileDataItem.Passes;
         rasterCodecs.Options.Load.Rotated = fileDataItem.LoadRotated;
         rasterCodecs.Options.Load.Compressed = fileDataItem.LoadCompressed;

         RasterImage loadedImage = rasterCodecs.Load(fileDataItem.Name,
            0,
            CodecsLoadByteOrder.BgrOrGray,
            fileDataItem.PageNumber,
            fileDataItem.PageNumber);

         // COPY THE 'loadedImage' IMAGE.

         loadedImage.Dispose();
      }
   }
   RasterCodecs.Shutdown();
}

Remarks

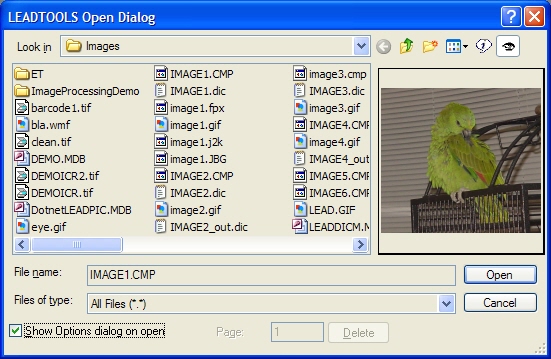

The Open dialog can be seen below:

Inheritance Hierarchy

System.Object
   Leadtools.WinForms.CommonDialogs.File.RasterOpenDialog

Requirements

Target Platforms: Microsoft .NET Framework 2.0, Windows 98, Windows NT 4.0, Windows Millennium Edition, Windows 2000, Windows XP Home Edition, Windows XP Professional, Windows Server 2003 family
