ColoredPencilCommand Class
See Also  Members   Example
Leadtools.ImageProcessing.SpecialEffects Namespace : ColoredPencilCommand Class



Applies an effect to an image that makes it look like it has been drawn with colored pencils. This method is available in the Raster Pro and above toolkits.

Syntax

Visual Basic (Declaration)
Public Class ColoredPencilCommand
   Inherits RasterCommand
   Implements IRasterCommand
Visual Basic (Usage) Copy Code
Dim instance As ColoredPencilCommand
C#
public class ColoredPencilCommand : RasterCommand, IRasterCommand
C++/CLI
public ref class ColoredPencilCommand : public RasterCommand, IRasterCommand

Example

Run the ColoredPencilCommand on an image and applies the Colored Pencil filter.

Visual Basic Copy Code
Public Sub ColoredPencilCommandExample()
   RasterCodecs.Startup()
   Dim codecs As New RasterCodecs()
   codecs.ThrowExceptionsOnInvalidImages = True

   Dim leadImage As RasterImage = codecs.Load(LeadtoolsExamples.Common.ImagesPath.Path + "Master.jpg")

   ' Prepare the command
   Dim command As ColoredPencilCommand = New ColoredPencilCommand
   command.Ratio = 50
   command.Dimension = 3
   command.Run(leadImage)
   codecs.Save(leadImage, LeadtoolsExamples.Common.ImagesPath.Path + "Result.jpg", RasterImageFormat.Jpeg, 24)

   RasterCodecs.Shutdown()
End Sub
C# Copy Code
public void ColoredPencilCommandExample()
{
   // Load an image
   RasterCodecs.Startup();
   RasterCodecs codecs = new RasterCodecs();
   codecs.ThrowExceptionsOnInvalidImages = true;

   RasterImage image = codecs.Load(LeadtoolsExamples.Common.ImagesPath.Path + "Master.jpg");

   // Prepare the command
   ColoredPencilCommand command = new ColoredPencilCommand();
   command.Ratio = 50;
   command.Dimension = 3;
   command.Run(image);
   codecs.Save(image, LeadtoolsExamples.Common.ImagesPath.Path + "Result.jpg", RasterImageFormat.Jpeg, 24);

   RasterCodecs.Shutdown();
}

Remarks

  • This method applies an effect to an image that makes it look like it has been drawn with colored pencils.

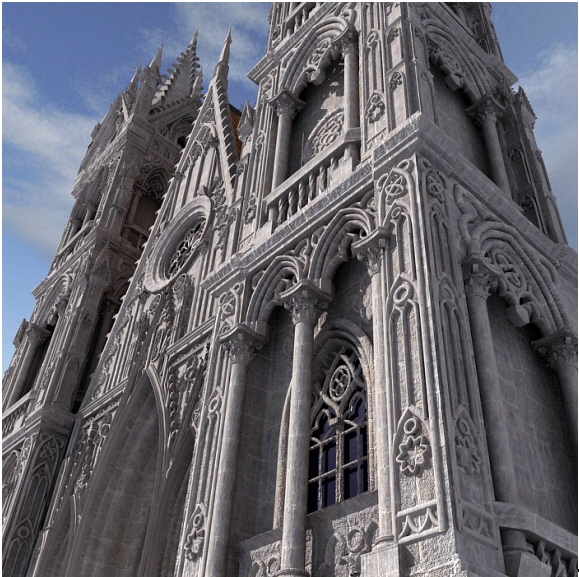

  • As an example, if you use the following figure:

    If you call the ColoredPencilCommand using the following values:
    Parameter Value
    Ratio 90
    Dimension 3

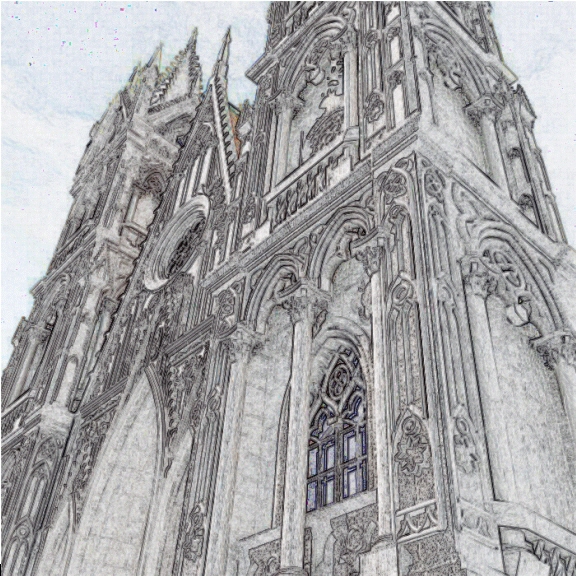

    The following figure results:
  • This method supports 12- and 16-bit grayscale and 48- and 64-bit color images. Support for 12- and 16-bit grayscale and 48 and 64 bit Effects images is available only in the Document/Medical toolkits.
  • This method does not support signed data images.
  • This command does not support 32-bit grayscale images.
For more information, refer to Removing Noise.

Inheritance Hierarchy

System.Object
   Leadtools.ImageProcessing.RasterCommand
      Leadtools.ImageProcessing.SpecialEffects.ColoredPencilCommand

Requirements

Target Platforms: Microsoft .NET Framework 2.0, Windows 98, Windows NT 4.0, Windows Millennium Edition, Windows 2000, Windows XP Home Edition, Windows XP Professional, Windows Server 2003 family
