RasterWindowLevelDialog Class
See Also  Members   Example
Leadtools.WinForms.CommonDialogs.Color Namespace : RasterWindowLevelDialog Class



Displays the Window Level dialog box.

Syntax

Visual Basic (Declaration)
Public Class RasterWindowLevelDialog
   Inherits Form
Visual Basic (Usage)Copy Code
Dim instance As RasterWindowLevelDialog
C#
public class RasterWindowLevelDialog : Form
C++/CLI
public ref class RasterWindowLevelDialog : public Form

Example

Visual BasicCopy Code
Public Sub _windowLevleDlg_Help(ByVal sender As Object, ByVal e As RasterColorDialogHelpEventArgs) Handles _windowLevleDlg.Help
   If e.Dialog = RasterColorDialogHelpName.WindowLevel Then
      MessageBox.Show("Window Level dialog Help")
   End If
End Sub
WithEvents _windowLevleDlg As New RasterWindowLevelDialog

Public Sub WindowLevelDialogExample()
   ' Prepare RasterCodecs
   RasterCodecs.Startup()
   Dim codecs As New RasterCodecs()

   ' load an image
     Dim leadImage As RasterImage = codecs.Load(LeadtoolsExamples.Common.ImagesPath.Path + "Image1.cmp")

     Dim size As Integer
     Dim minMaxBitsCmd As MinMaxBitsCommand = New MinMaxBitsCommand
     Dim minMaxValuesCmd As MinMaxValuesCommand = New MinMaxValuesCommand

     size = (1 << (leadImage.HighBit - leadImage.LowBit + 1))

     minMaxBitsCmd.Run(leadImage)
     _windowLevleDlg.LowBit = minMaxBitsCmd.MinimumBit
     _windowLevleDlg.HighBit = minMaxBitsCmd.MaximumBit

     minMaxValuesCmd.Run(leadImage)
     _windowLevleDlg.Low = minMaxValuesCmd.MinimumValue
     _windowLevleDlg.High = minMaxValuesCmd.MaximumValue

     ReDim _windowLevleDlg.LookupTable(size)
     _windowLevleDlg.AutoProcess = False
     _windowLevleDlg.Factor = 0
     _windowLevleDlg.Image = leadImage
     _windowLevleDlg.ZoomToFit = True
     _windowLevleDlg.ShowPreview = True
     _windowLevleDlg.ShowZoomLevel = True
     _windowLevleDlg.ShowHelp = False
     _windowLevleDlg.ShowRange = True
     _windowLevleDlg.Signed = leadImage.Signed
     _windowLevleDlg.StartColor = New Leadtools.RasterColor(0, 0, 0)
     _windowLevleDlg.EndColor = New Leadtools.RasterColor(255, 255, 255)
     _windowLevleDlg.WindowLevelFlags = Leadtools.RasterPaletteWindowLevelFlags.Inside Or Leadtools.RasterPaletteWindowLevelFlags.Linear

     If DialogResult.OK = _windowLevleDlg.ShowDialog(Nothing) Then

         Dim command As WindowLevelCommand = New WindowLevelCommand

         command.HighBit = _windowLevleDlg.HighBit
         command.LowBit = _windowLevleDlg.LowBit
         command.LookupTable = _windowLevleDlg.LookupTable
         command.Order = Leadtools.RasterByteOrder.Bgr

         command.Run(leadImage)
     End If

     ' save the resulted image
     codecs.Save(leadImage, LeadtoolsExamples.Common.ImagesPath.Path + "WindowLevelDialogResult.bmp", RasterImageFormat.Bmp, 24)
   RasterCodecs.Shutdown()
End Sub
C#Copy Code
public void windowLevelDlg_Help(object sender, RasterColorDialogHelpEventArgs e)
{
   if(e.Dialog == RasterColorDialogHelpName.WindowLevel)
   {
      MessageBox.Show ( "Window Level dialog Help" );
   }
}

public void WindowLevelDialogExample()
{
   // initialize the RasterCodecs
   RasterCodecs.Startup();
   RasterCodecs codecs = new RasterCodecs();

   // load an image
   RasterImage rasterImage = codecs.Load(LeadtoolsExamples.Common.ImagesPath.Path + "Image1.cmp");

   int size ;
   RasterWindowLevelDialog windowLevelDlg = new RasterWindowLevelDialog();
   MinMaxBitsCommand minMaxBitsCmd= new MinMaxBitsCommand ( );
   MinMaxValuesCommand minMaxValuesCmd= new MinMaxValuesCommand ( );

   size= (1 << (rasterImage.HighBit - rasterImage.LowBit + 1));

   minMaxBitsCmd.Run ( rasterImage );
   windowLevelDlg.LowBit  = minMaxBitsCmd.MinimumBit ;
   windowLevelDlg.HighBit = minMaxBitsCmd.MaximumBit ;

   minMaxValuesCmd.Run ( rasterImage );
   windowLevelDlg.Low  = minMaxValuesCmd.MinimumValue ;
   windowLevelDlg.High = minMaxValuesCmd.MaximumValue ;

   windowLevelDlg.AutoProcess    = false ;
   windowLevelDlg.Factor         = 0 ;
   windowLevelDlg.Image          = rasterImage ;
   windowLevelDlg.ZoomToFit      = true ;
   windowLevelDlg.ShowPreview    = true ;
   windowLevelDlg.ShowZoomLevel  = true ;
   windowLevelDlg.ShowHelp       = false ;
   windowLevelDlg.ShowRange      = true ;
   windowLevelDlg.Signed         = rasterImage.Signed;
   windowLevelDlg.LookupTable    = new Leadtools.RasterColor [size];
   windowLevelDlg.StartColor     = new Leadtools.RasterColor ( 0, 0 , 0 ) ;
   windowLevelDlg.EndColor       = new Leadtools.RasterColor ( 255, 255, 255 ) ;
   windowLevelDlg.WindowLevelFlags = Leadtools.RasterPaletteWindowLevelFlags.Inside | Leadtools.RasterPaletteWindowLevelFlags.Linear;
   windowLevelDlg.Help           += new EventHandler<RasterColorDialogHelpEventArgs>(windowLevelDlg_Help);


   if ( DialogResult.OK == windowLevelDlg.ShowDialog ( null ) )
   {
      WindowLevelCommand command = new WindowLevelCommand();

      command.HighBit     = windowLevelDlg.HighBit;
      command.LowBit      = windowLevelDlg.LowBit;
      command.LookupTable = windowLevelDlg.LookupTable;
      command.Order       = Leadtools.RasterByteOrder.Bgr;

      command.Run(rasterImage);
   }

   // save the resulted image
   codecs.Save(rasterImage, LeadtoolsExamples.Common.ImagesPath.Path + "WindowLevelDialogResult.bmp", RasterImageFormat.Bmp, 24);
   RasterCodecs.Shutdown();
}

Remarks

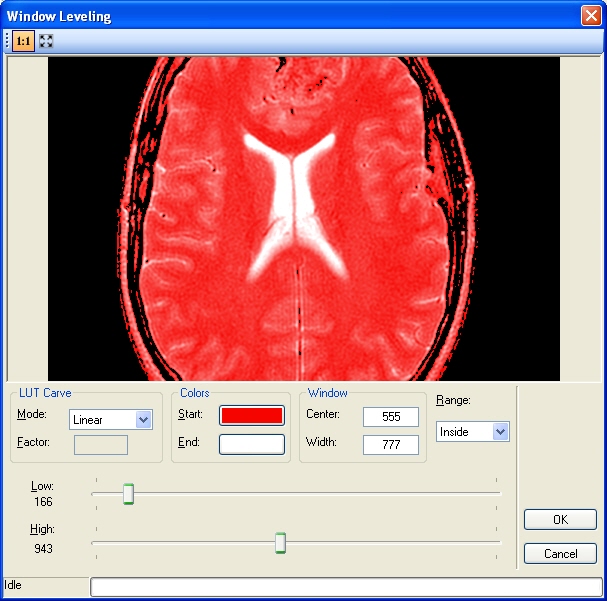

The Window Level dialog can be seen below:

Inheritance Hierarchy

System.Object
   System.MarshalByRefObject
      System.ComponentModel.Component
         System.Windows.Forms.Control
            System.Windows.Forms.ScrollableControl
               System.Windows.Forms.ContainerControl
                  System.Windows.Forms.Form
                     Leadtools.WinForms.CommonDialogs.Color.RasterWindowLevelDialog

Requirements

Target Platforms: Microsoft .NET Framework 2.0, Windows 98, Windows NT 4.0, Windows Millennium Edition, Windows 2000, Windows XP Home Edition, Windows XP Professional, Windows Server 2003 family
