FreeRadialBendCommand Class
See Also  Members   Example
Leadtools.ImageProcessing.SpecialEffects Namespace : FreeRadialBendCommand Class



Wraps the image along its radius on a 3D surface shaped by Curve. This command is available in the Raster Pro and above toolkits.

Syntax

Visual Basic (Declaration)
Public Class FreeRadialBendCommand
   Inherits RasterCommand
   Implements IRasterCommand
Visual Basic (Usage) Copy Code
Dim instance As FreeRadialBendCommand
C#
public class FreeRadialBendCommand : RasterCommand, IRasterCommand
C++/CLI
public ref class FreeRadialBendCommand : public RasterCommand, IRasterCommand

Example

Run the FreeRadialBendCommand on an image.

Visual Basic Copy Code
Public Sub FreeRadialBendCommandExample()
   RasterCodecs.Startup()
   Dim codecs As New RasterCodecs()
   codecs.ThrowExceptionsOnInvalidImages = True

   Dim leadImage As RasterImage = codecs.Load(LeadtoolsExamples.Common.ImagesPath.Path + "Master.jpg")

   ' Prepare the command
   Dim command As FreeRadialBendCommand = New FreeRadialBendCommand
   Dim UserPoint() As Point
   ReDim UserPoint(3)
   Dim CenterPoint As Point = New Point(leadImage.Width \ 2, leadImage.Height \ 2)
   Dim Curve() As Integer
   ReDim Curve(12)

   'Apply the filter
   UserPoint(0).X = 0
   UserPoint(0).Y = 0
   UserPoint(1).X = 3
   UserPoint(1).Y = 10
   UserPoint(2).X = 9
   UserPoint(2).Y = -10
   UserPoint(3).X = 12
   UserPoint(3).Y = 0

   EffectsUtilities.GetCurvePoints(Curve, UserPoint, CurvePointsType.Linear)
   command.Flags = FreeRadialBendCommandFlags.Color Or FreeRadialBendCommandFlags.Rotate
   command.CenterPoint = CenterPoint
   command.Scale = 200
   command.FillColor = New RasterColor(255, 0, 0)
   command.Curve = Curve
   command.Run(leadImage)
   codecs.Save(leadImage, LeadtoolsExamples.Common.ImagesPath.Path + "Result.jpg", RasterImageFormat.Jpeg, 24)

   RasterCodecs.Shutdown()
End Sub
C# Copy Code
public void FreeRadialBendCommandExample()
{
   // Load an image
   RasterCodecs.Startup();
   RasterCodecs codecs = new RasterCodecs();
   codecs.ThrowExceptionsOnInvalidImages = true;

   RasterImage image = codecs.Load(LeadtoolsExamples.Common.ImagesPath.Path + "Master.jpg");

   // Prepare the command
   FreeRadialBendCommand command = new FreeRadialBendCommand();
   System.Drawing.Point[] UserPoint = new System.Drawing.Point[4];
   System.Drawing.Point CenterPoint = new System.Drawing.Point(image.Width / 2, image.Height / 2);
   int[] Curve = new int[13];

   //Apply the filter
   UserPoint[0].X = 0;
   UserPoint[0].Y = 0;
   UserPoint[1].X = 3;
   UserPoint[1].Y = 10;
   UserPoint[2].X = 9;
   UserPoint[2].Y = -10;
   UserPoint[3].X = 12;
   UserPoint[3].Y = 0;

   EffectsUtilities.GetCurvePoints(Curve, UserPoint, CurvePointsType.Linear);
   for(int i = 0; i < Curve.Length; i++)
      Curve[i] /= 50;
   command.Flags = FreeRadialBendCommandFlags.Color | FreeRadialBendCommandFlags.Rotate;
   command.CenterPoint = CenterPoint;
   command.Scale = 200;
   command.FillColor = new RasterColor(255, 0, 0);
   command.Curve = Curve;
   command.Run(image);
   codecs.Save(image, LeadtoolsExamples.Common.ImagesPath.Path + "Result.jpg", RasterImageFormat.Jpeg, 24);

   RasterCodecs.Shutdown();
}

Remarks

  • If the image has a region, the effect will be applied on the region only.

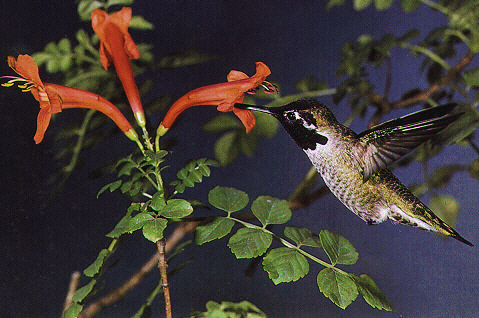

  • For an example, the following figure shows a image before the effect is applied.

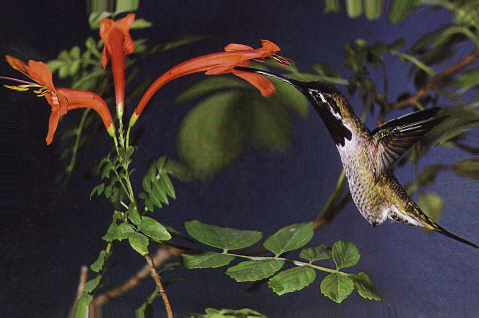

    The following figure shows the same image after the effect has been applied.

  • This command supports 12- and 16-bit grayscale and 48- and 64-bit color images. Support for 12- and 16-bit grayscale and 48- and 64-bit color images is available only in the Document/Medical toolkits.
  • This command does not support signed data images.
  • This command does not support 32-bit grayscale images.
For more information, refer to Correcting Colors.
