L_UnderlayBitmap

#include "l_bitmap.h"

L_INT EXT_FUNCTION L_UnderlayBitmap(pBitmapDst, pUnderlay, uFlags)

pBITMAPHANDLE pBitmapDst;	/* pointer to the target bitmap handle */
pBITMAPHANDLE pUnderlay;	/* pointer to the underlay bitmap handle */
L_UINT uFlags;	/* positioning indicators */

Combines two bitmaps so that one appears to be an underlying texture for the other. This is most effective when the underlying image is a filtered one, such as an embossed image.

Parameter	Description
pBitmapDst	Pointer to the bitmap handle that references the bitmap to be used as the target image. This is the image that appears to be on top and retains its colors.
pUnderlay	Pointer to the bitmap handle that references the bitmap to be used as the underlying image. This is the image that appears to be on bottom and is grayscaled as it is combined with the target image.
uFlags	Indicators of how the underlying image is to be positioned. Valid values are:
	Value	Meaning
	UB_TILE	Tile the underlay. This repeats the underlying image, so that it fills the target image. This function does not do any resizing; you are responsible for the size of the tiles.
	UB_STRETCH	[0x01] Stretch the underlay to fit the dimensions of the target image.

Returns

SUCCESS	The function was successful.
< 1	An error occurred. Refer to Return Codes.

Comments

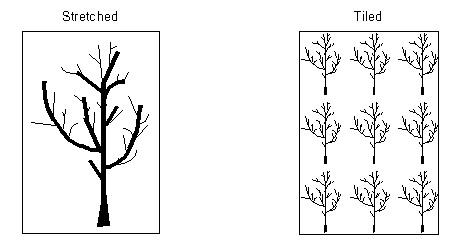

This function changes the colors of the underlay to grayscale as it combines the images. It updates the target bitmap (pBitmapDst), leaving the second bitmap (pUnderlay) unchanged. The underlying image can either be stretched or tiled to fill the target image, as shown in the following illustration:

$image\undlay.gif$

To update a status bar or detect a user interrupt during execution of this function, refer to L_SetStatusCallback.

If a region is defined for the target bitmap, the underlay is applied to the region, not to the whole bitmap. (Any region defined for the underlay bitmap is ignored.)

Required DLLs and Libraries

LTDIS

For a listing of the exact DLLs and Libraries needed, based on the toolkit version, refer to Files To Be Included With Your Application.

Platforms

Windows 95 / 98 / Me, Windows 2000 / XP, Windows CE.

See Also

Functions:	L_CombineBitmap, L_BumpMapBitmap, L_CubismBitmap, L_DrawStarBitmap, L_DryBitmap, L_FreePlaneBendBitmap, L_FreeRadBendBitmap, L_GlassEffectBitmap, L_GlowFilterBitmap, L_LensFlareBitmap, L_LightBitmap, L_OceanBitmap, L_PlaneBendBitmap, L_PlaneBitmap, L_SampleTargetBitmap, L_TunnelBitmap, L_BendingBitmap, L_CylindricalBitmap, L_FreeHandShearBitmap, L_FreeHandWaveBitmap, L_ImpressionistBitmap, L_PixelateBitmap, L_PolarBitmap, L_PunchBitmap, L_RadialBlurBitmap, L_RadWaveBitmap, L_RippleBitmap, L_SpherizeBitmap, L_SwirlBitmap, L_WaveBitmap, L_WindBitmap, L_ZoomBlurBitmap, L_ZoomWaveBitmap, L_AddShadowBitmap, L_RevEffectBitmap, L_AgingBitmap, L_DiceEffectBitmap, L_FunctionalLightBitmap, L_PuzzleEffectBitmap, L_RingEffectBitmap, L_TextureAlphaBlendBitmap, L_BricksTextureBitmap, L_CanvasBitmap, L_DisplaceMapBitmap, L_FragmentBitmap, L_VignetteBitmap, L_CloudsBitmap, L_ColoredBallsBitmap, L_DiffuseGlowBitmap, L_DisplaceMapBitmap, L_FragmentBitmap, L_HalfTonePatternBitmap, L_MaskConvolutionBitmap, L_MosaicTilesBitmap, L_OffsetBitmap, L_PerspectiveBitmap, L_PlasmaFilterBitmap, L_PointillistBitmap, L_RomanMosaicBitmap, L_ZigZagBitmap
Topics:	Raster Image Functions: Copying Images
	Processing an Image
	Applying Artistic Effects
	Raster Image Functions: Processing an Image

Example

For complete sample code, refer to the CLRSPACE example.

/* This example uses TmpBitmap as a tiled underlay for LeadBitmap */
BITMAPHANDLE LeadBitmap; /* Bitmap handle to hold the loaded image */
BITMAPHANDLE TmpBitmap; /* Temporary bitmap */
/* Load both bitmaps, at 24 bits per pixel */
L_LoadBitmap (TEXT("IMAGE3.CMP"), &LeadBitmap, sizeof(BITMAPHANDLE), 24, ORDER_BGR, NULL, NULL);
L_LoadBitmap (TEXT("ULAY4.BMP"), &TmpBitmap, sizeof(BITMAPHANDLE), 24, ORDER_BGR, NULL, NULL);
/* Use TmpBitmap as a tiled underlay for LeadBitmap */
L_UnderlayBitmap(&LeadBitmap, &TmpBitmap, UB_TILE);
/* Free the temporary bitmap */
L_FreeBitmap(&TmpBitmap);
