L_ColoredBallsBitmap

#include "l_bitmap.h"

L_INT EXT_FUNCTION L_ColoredBallsBitmap(pBitmap, uNumBalls, uSize, uSizeVariation, nHighLightAng, crHighLight, crBkgColor, crShadingColor, pBallColors, uNumOfBallColors, uAvrBallClrOpacity, uBallClrOpacityVariation, uRipple, uFlags)

pBITMAPHANDLE pBitmap;	/* pointer to the bitmap handle */
L_UINT uNumBalls;	/* number of balls */
L_UINT uSize;	/* average ball size */
L_UINT uSizeVariation;	/* ball size variation */
L_INT nHighLightAng;	/* light source direction of the highlight on the ball */
COLORREF crHighLight;	/* highlight color on the ball */
COLORREF crBkgColor;	/* background color */
COLORREF crShadingColor;	/* gradient color of the background */
COLORREF L_FAR * pBallColors	/* pointer to an array of ball colors */
L_UINT uNumOfBallColors;	/* size of the ball color array */
L_UINT uAvrBallClrOpacity;	/* ball color opacity */
L_UINT uBallClrOpacityVariation;	/* ball color opacity variation */
L_UINT uRipple;	/* gradient frequency */
L_UINT uFlags;	/* flags */

This function adds colored balls to the bitmap. Various parameters control the color and appearance of the balls. This function is available in the Raster Pro and above toolkits.

Parameter	Description
pBitmap	Pointer to the bitmap handle referencing the bitmap to be changed.
uNumBalls	Number of balls that will be drawn in the image.
uSize	Average ball size, in pixels.
uSizeVariation	Ball size variation. Valid values range from 0 to 100. Use 0 to have all balls the same size. Use 100 to have the size vary from 0 to 2 X uSize.
nHighLightAng	Light source direction of the highlight color on the ball. This value is in hundredths of degrees (+/-). A positive value will rotate the highlight color clockwise, while a negative value will rotate the highlight color counter-clockwise. Possible values range from –36000 to + 36000.
crHighLight	Highlight color.
crBkgColor	Background color.
crShadingColor	Shade (or gradient) color.
pBallColors	Pointer to an array of ball colors.
uNumOfBallColors	The number of ball colors.
uAvrBallClrOpacity	Average ball color opacity. Valid values range from 0 to 255 for 8-bit , 0 to 4095 for 12-bit and 0 to 65535 for 16-bit.
uBallClrOpacityVariation	Ball color opacity variation. Valid values range from 0 to 100. Use 0 to have all pixels assigned the same opacity. Use 100 to have the opacity vary from 0 to 2 X uAvrBallClrOpacity.
uRipple	The number of shades that are used to produce the background. This value is divided internally by 100. For example, if uRipple = 200 the actual frequency is 2. This value is ignored if the CLRBALLS_SHADING_SINGLE flag is set.
uFlags	Flags that indicate which background color, shade (or gradient) type, ball type and ball color type to use. You can use a bit wise OR (\|) to specify one flag from each group. The following flags indicate how to draw the shading:
	Value	Meaning
	CLRBALLS_SHADING_SINGLE	[0x0001] Use only the background color (i.e. no shading).
	CLRBALLS_SHADING_LEFTRIGHT	[0x0002] Draw shading as vertical lines that move from left to right.
	CLRBALLS_SHADING_TOPBOTTOM	[0x0003] Draw shading as horizontal lines that move from top to bottom.
	CLRBALLS_SHADING_CIRCULAR	[0x0004] Draw shading as concentric circles.
	CLRBALLS_SHADING_ELLIPTICAL	[0x0005] Draw shading as concentric ellipses.
	The following flags indicate which type of ball to use:
	Value	Meaning
	CLRBALLS_STICKER	[0x0010] Use Balls that will overlap like stickers.
	CLRBALLS_BALL	[0x0020] Use Balls that will adjust like bubbles.
	The following flags indicate how to treat the background:
	Value	Meaning
	CLRBALLS_IMAGE	[0x0100] Make the background the same as the image.
	CLRBALLS_COLOR	[0x0200] Make the background using crBkgColor and crShadingColor with the specified shade type.
	The following flags indicate which type of ball coloring to use:
	Value	Meaning
	CLRBALLS_BALLCLR_MASK	[0x1000] Have the Ball color block image colors.
	CLRBALLS_ BALLCLR_OPACITY	[0x2000] Use the opacity value when combining image colors with ball colors.

Returns

SUCCESS	The function was successful.
< 1	An error occurred. Refer to Return Codes.

Comments

The CLRBALLS_STICKER flag produces balls with more distinct edges than the CLRBALLS_BALL option.

As an example, if you use the following figure.

$image\ReplaceColor_Befor_2.gif$

If you call the L_ColoredBallsBitmap function using the following values:

Parameter	Value
uNumBalls	500
uSize	10
uSizeVariation	90
nHighLightAng	315
crHighLight	White
crBkgColor	Blue
crShadingColor	Black
uAvrBallClrOpacity	0
uBallClrOpacityVariation	0
uRipple	4250
uFlags	CLRBALLS_SHADING_TOPBOTTOM \| CLRBALLS_STICKER \| CLRBALLS_IMAGE \| CLRBALLS_ BALLCLR_OPACITY

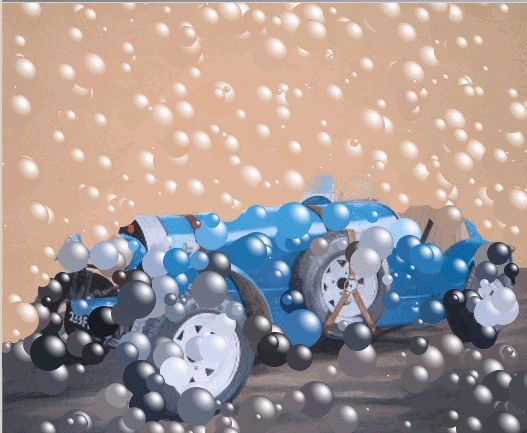

The following figure will result:

$image\coloredballssticker.gif$

As another example, if you call the function using the following settings:

Parameter	Value
uNumBalls	1500
uSize	4
uSizeVariation	0
nHighLightAng	315
crHighLight	White
crBkgColor	Blue
crShadingColor	Black
uAvrBallClrOpacity	108
uBallClrOpacityVariation	13
uRipple	1000
uFlags	CLRBALLS_SHADING_LEFTRIGHT \| CLRBALLS_BALL \| CLRBALLS_IMAGE \| CLRBALLS_ BALLCLR_OPACITY

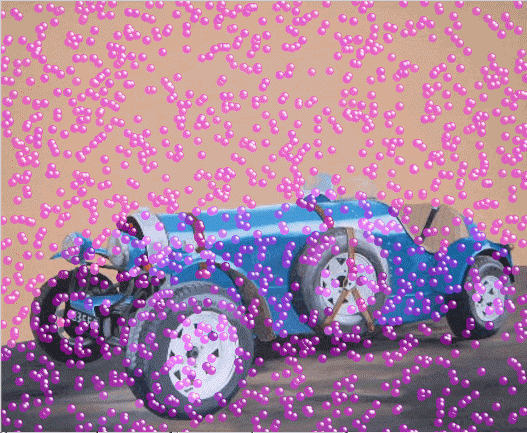

You will obtain the following figure if you use magenta as the color for the balls:

$image\ColoredBalls.gif$

To update a status bar or detect a user interrupt during execution of this function, refer to L_SetStatusCallback.

This function supports 12 and 16-bit grayscale and 48 and 64-bit color images. Support for 12 and 16-bit grayscale and 48 and 64-bit color images is available only in the Document/Medical toolkits.

If the bitmap has a region, this function works only on the region. If the bitmap does not have a region, this function works on the entire bitmap.

This function does not support signed data images. It returns the error code ERROR_SIGNED_DATA_NOT_SUPPORTED if a signed data image is passed to this function.

Required DLLs and Libraries

LTIMG

For a listing of the exact DLLs and Libraries needed, based on the toolkit version, refer to Files To Be Included With Your Application.

Platforms

Windows 95 / 98 / Me, Windows 2000 / XP.

See Also

Functions:	L_AddBitmapNoise, L_EmbossBitmap, L_MosaicBitmap, L_MotionBlurBitmap, L_OilifyBitmap, L_PosterizeBitmap, L_RemoveRedeyeBitmap, L_SolarizeBitmap, L_UnderlayBitmap, L_BumpMapBitmap, L_CubismBitmap, L_DryBitmap, L_FreePlaneBendBitmap, L_FreeRadBendBitmap, L_GlassEffectBitmap, L_GlowFilterBitmap, L_LensFlareBitmap, L_LightBitmap, L_OceanBitmap, L_PlaneBendBitmap, L_PlaneBitmap, L_SampleTargetBitmap, L_TunnelBitmap, L_BendingBitmap, L_CylindricalBitmap, L_FreeHandShearBitmap, L_FreeHandWaveBitmap, L_ImpressionistBitmap, L_PixelateBitmap, L_PolarBitmap, L_PunchBitmap, L_RadialBlurBitmap, L_RadWaveBitmap, L_RippleBitmap, L_SpherizeBitmap, L_SwirlBitmap, L_WaveBitmap, L_WindBitmap, L_ZoomBlurBitmap, L_ZoomWaveBitmap, L_DrawStarBitmap
Topics:	Raster Image Functions: Artistic Effects
	Applying Artistic Effects

Example

   /* The following example loads a bitmap, and applies the colored ball effect: */
   BITMAPHANDLE LeadBitmap;
   COLORREF       pBallColors[7];
    pBallColors[0] = RGB(230,50,50);
    pBallColors[1] = RGB(230,200,160);
    pBallColors[2] = RGB(255,255,128);
    pBallColors[3] = RGB(240,50,100);
    pBallColors[4] = RGB(255,255,180);
    pBallColors[5] = RGB(170,240,100);
    pBallColors[6] = RGB(255,255,255);
   /* Load the bitmap, keeping the bits per pixel of the file */
   L_LoadBitmap (TEXT("Sample1.CMP"), &LeadBitmap, sizeof(BITMAPHANDLE), 0, ORDER_BGR,
   NULL, NULL);

   /*Apply the effect*/
   L_ColoredBallsBitmap(&LeadBitmap, 1000, 25, 15, 31500, RGB(255,255,255),
   RGB(255,0,0), RGB(255,255,0), pBallColors, 7, 64, 10, 100,
   CLRBALLS_SHADING_CIRCULAR|CLRBALLS_STICKER|
   CLRBALLS_IMAGE|CLRBALLS_BALLCLR_OPACITY);
