L_PlasmaFilterBitmap

#include "l_bitmap.h"

L_INT EXT_FUNCTION L_PlasmaFilterBitmap(pBitmap, pPlasmaInfo)

pBITMAPHANDLE pBitmap;	/* pointer to the bitmap handle */
LPPLASMAINFO pPlasmaInfo;	/* pointer to a structure */

Applies color patterns that blend into each other like plasma. This function is available in the Raster Pro and above toolkits.

Parameter	Description
pBitmap	Pointer to the bitmap handle that references the bitmap on which to apply the effect.
pPlasmaInfo	Pointer to a PLASMAINFO structure that contains information about the plasma effect.

Returns

SUCCESS	The function was successful.
< 1	An error occurred. Refer to Return Codes.

Comments

As an example, suppose you call the L_PlasmaFilterBitmap function, using a uOpacity value of 0, which means that no image is to be used, and you use the following settings:

Parameter	Value
uShift	0
uOpacity	0
uSize	1000
uFlags	PLSTYP_RANDOM1 \| PLSCLR_RGB2

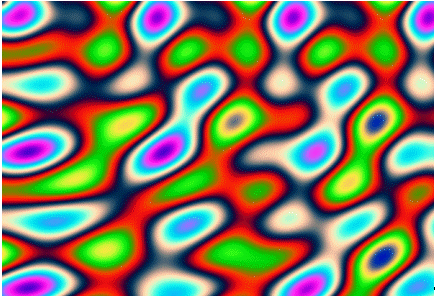

The following figure results:

$image\PlasmaFilterBitmap.gif$

To update a status bar or detect a user interrupt during execution of this function, refer to L_SetStatusCallback.

This function supports 12 and 16-bit grayscale and 48 and 64-bit color images. Support for 12 and 16-bit grayscale and 48 and 64-bit color images is available only in the Document/Medical toolkits.

This function does not support signed data images. It returns the error code ERROR_SIGNED_DATA_NOT_SUPPORTED if a signed data image is passed to this function.

Required DLLs and Libraries

LTIMG

For a listing of the exact DLLs and Libraries needed, based on the toolkit version, refer to Files To Be Included With Your Application.

Platforms

Windows 95 / 98 / Me, Windows 2000 / XP.

See Also

Functions:	L_AddBitmapNoise, L_EmbossBitmap, L_MaskConvolutionBitmap, L_MosaicBitmap, L_MotionBlurBitmap, L_OilifyBitmap, L_PosterizeBitmap, L_RemoveRedeyeBitmap, L_SolarizeBitmap, L_UnderlayBitmap, L_BendingBitmap, L_CylindricalBitmap, L_FreeHandShearBitmap, L_FreeHandWaveBitmap, L_ImpressionistBitmap, L_PolarBitmap, L_PunchBitmap, L_RadialBlurBitmap, L_RadWaveBitmap, L_RippleBitmap, L_SpherizeBitmap, L_SwirlBitmap, L_WaveBitmap, L_WindBitmap, L_ZoomBlurBitmap, L_ZoomWaveBitmap, L_BumpMapBitmap, L_CubismBitmap, L_DrawStarBitmap, L_DryBitmap, L_FreePlaneBendBitmap, L_FreeRadBendBitmap, L_GlassEffectBitmap, L_GlowFilterBitmap, L_LensFlareBitmap, L_LightBitmap, L_OceanBitmap, L_PlaneBendBitmap, L_PlaneBitmap, L_SampleTargetBitmap, L_TunnelBitmap, L_DlgPixelate, L_PixelateBitmap
Topics:	Raster Image Functions: Doing Geometric Transformations
	Raster Image Functions: Filtering Images
	Applying Artistic Effects

Example

/* The following example applies a diagonal plasma effect by adding and blending color patterns onto the given image */
PLASMAINFO PlasmaInfo;
BITMAPHANDLE LeadBitmap;
L_LoadBitmap (TEXT("IMAGE1.CMP"), &LeadBitmap, sizeof(BITMAPHANDLE), 0, ORDER_BGR, NULL, NULL);
PlasmaInfo.uStructSize = sizeof(PLASMAINFO);
PlasmaInfo.uShift = 0;
PlasmaInfo.uOpacity = 50;
PlasmaInfo.uSize = 300;
PlasmaInfo.uFlags = PLSTYP_DIAGONAL | PLSCLR_RGB2;
L_PlasmaFilterBitmap (&LeadBitmap, &PlasmaInfo);
