CombineWarpCommand Class
See Also  Members
Leadtools.ImageProcessing Namespace : CombineWarpCommand Class




Combines image data from the source image (the slave) and the destination image (the master), using a perspective warp.

Object Model


Syntax

Visual Basic (Declaration)
Public Class CombineWarpCommand
   Inherits RasterCommand
   Implements IRasterCommand
Visual Basic (Usage)Copy Code
Dim instance As CombineWarpCommand
C#
public class CombineWarpCommand : RasterCommand, IRasterCommand
Managed Extensions for C++
public __gc class CombineWarpCommand : public RasterCommand, IRasterCommand
C++/CLI
public ref class CombineWarpCommand : public RasterCommand, IRasterCommand

Example

This example will warp combines two images.

Remarks

You can warp the entire source image, or a portion of the source image. To warp a portion of the source image, set SourceRectangle accordingly. To warp the entire source image, set the following:


CombineWarp.Command.SourceRectangle = new Rectangle(0, 0, RasterImage.Width, RasterImage.Height);

The warp area in the destination image is specified in SetDestinationPoints. The polygon specified in SetDestinationPoints must:

  • Be concave
  • Fit entirely on the destination bitmap

If either of these conditions is false, this class will throw an exception.

The ordering of the points in SetDestinationPoints can affect the resulting warp. For example, if the source image is the following:

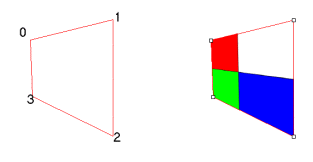

then ordering the points in SetDestinationPoints as shown below results in the following warp:

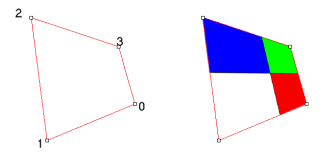

while ordering the points in SetDestinationPoints as shown below, results in the following warp:

The CombineWarpCommand works by combining the image in the DestinationImage property with the image passed to the RasterCommand.Run method. The DestinationImage will then hold the result of the combine operation..

For more information, refer to Processing an Image.

This command does not support signed data images.

Inheritance Hierarchy

System.Object
   Leadtools.ImageProcessing.RasterCommand
      Leadtools.ImageProcessing.CombineWarpCommand

Requirements

Target Platforms: Microsoft .NET Framework 2.0, Windows 98, Windows NT 4.0, Windows Millennium Edition, Windows 2000, Windows XP Home Edition, Windows XP Professional, Windows Server 2003 family
