LineRemoveCommandFlags Enumeration
See Also
Leadtools.ImageProcessing.Core Namespace : LineRemoveCommandFlags Enumeration




Flgas that determine the behavior of the line removal process.

Syntax

Visual Basic (Declaration)
<FlagsAttribute()>
Public Enum LineRemoveCommandFlags
   Inherits Enum
Visual Basic (Usage)Copy Code
Dim instance As LineRemoveCommandFlags
C#
[FlagsAttribute()]
public enum LineRemoveCommandFlags : Enum
Managed Extensions for C++
[FlagsAttribute()]
__value public enum LineRemoveCommandFlags : public Enum
C++/CLI
[FlagsAttribute()]
public enum class LineRemoveCommandFlags : public Enum

Members

MemberDescription
None No flags.
UseDpi The unit of measure for all properties of the LineRemoveCommand is thousandths of an inch. Use the image's DPI to convert to pixels. This allows the processing of many images with different DPI. If this flag is not set, the unit of measure for all properties of the LineRemoveCommand is pixels.
SingleRegion For each line found by LineRemoveCommand, if the Status is set to RemoveStatus.Remove, the removed line is added to an internal single region. If it is set to RemoveStatus.NoRemove, the line is not added to the single region. When LineRemoveCommand returns, either ImageRegion or Region will reference a region that contains all the removed lines. If LeadRegion is also set, ImageRegion will be updated with a shallow copy of image that has a LEAD region that contains all the removed lines. If LeadRegion is not set, Region is updated with a Windows region that contains all the removed lines. When the region (either LEAD or Windows) is no longer needed, it must be disposed of (either region allocated in ImageRegion or Region).
LeadRegion When LineRemoveCommand returns, ImageRegion is updated with a shallow copy of affected image that also contains a region with all the removed lines. This flag must be used in conjunction with SingleRegion. So set Flags to SingleRegion | LeadRegion
CallBackRegion The Region property receives a Windows region that contains the current line to be removed. Setting this flag lets the user create his or her own composite of removed lines by combining the regions received, if Status is set to RemoveStatus.Remove. The regions can be combined using a logical OR operator. Combining all regions received when the Status is set to RemoveStatus.Remove results in a region identical to the region created when SingleRegion is set in Flags. For an example, refer to LineRemoveCommand. When the region received by the Region peroperty is no longer needed, it must be disposed of.
ImageUnchanged The affected image (the Run method image)is unchanged.
RemoveEntire Remove the entire line, even if the line passes through a character or a wall.

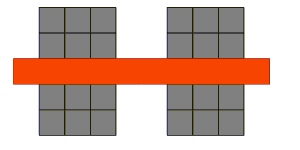

Consider the line below.

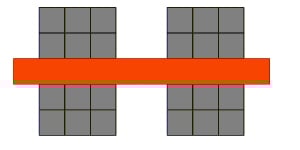

Setting iMaxWallPercent as 80 and passing LINE_REMOVE_ENTIRE will remove the red pixels as shown below.


UseGap Consider "gaps" in lines when performing line removal. If this flag is set, the gap length value (either the GapLength property or the gapLength parameter of the Constructor) is used. If this flag is not passed, the gap length value is ignored.
UseVariance Consider line variance when performing line removal. If this flag is passed, the variance value (either the Variance property or the variance parameter of the Constructor) is used. If this flag is not passed, the variance value is ignored.

Remarks

You can use a bitwise OR (|) to specify one or more flags.

Inheritance Hierarchy

System.Object
   System.ValueType
      System.Enum
         Leadtools.ImageProcessing.Core.LineRemoveCommandFlags

Requirements

Target Platforms: Microsoft .NET Framework 2.0, Windows 98, Windows NT 4.0, Windows Millennium Edition, Windows 2000, Windows XP Home Edition, Windows XP Professional, Windows Server 2003 family
