ShowMaxFilterDlg method (ILEADRasterDlgImgEfx)

Syntax	short ShowMaxFilterDlg (long hWnd);
Overview	Refer to Using Imaging Common Dialogs

Remarks

(Document/Medical only) Displays the Max Filter dialog box, and gets the options for the MaxFilter method.

The layout and action of the dialog depends on the flags set in the UIFlags property. Possible options are:

Value	Meaning
MAXFILTER_AUTOPROCESS	[0X00000001] process the image on OK. The Common Dialog Bitmap property must be assigned a valid bitmap before calling this method.
MAXFILTER_SHOW_CONTEXTHELP	[0X00000002] dialog should contain a context sensitive help icon.
MAXFILTER_SHOW_PREVIEW	[0X00000004] show a preview of the image in the dialog. The Common Dialog Bitmap property must be assigned a valid bitmap before calling this method.
MAXFILTER_SHOW_APPLY	[0x00000080] Show the Apply button in the dialog. The dialog will not apply any effect unless the user presses the Apply button.
MAXFILTER_SHOW_TOOL_ZOOMLEVEL	[0X00000008] show the "Zoom to fit" and "Zoom Normal" toolbar buttons. The MAXFILTER_SHOW_PREVIEW flag must be set in order to show these buttons.

If you include MAXFILTER_AUTOPROCESS or MAXFILTER_SHOW_PREVIEW in the UIFlags property, the Common Dialog Bitmap property must be assigned a valid bitmap before calling this method.

The property associated with this dialog box is:

Dimension property

To include a Help button in the dialog, set the ShowHelpButton property to VARIANT_TRUE.

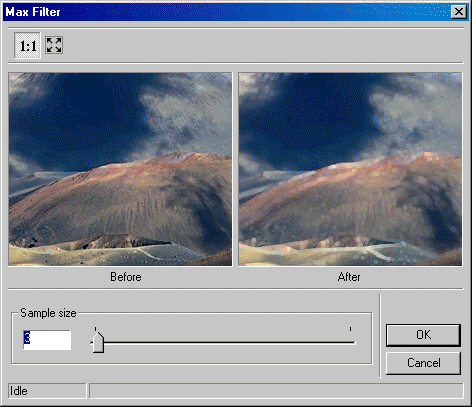

The Max Filter dialog can be seen below:

$image\MaxFilter.gif$
