ShowShearDlg method (ILEADRasterDlgImg)

Syntax	short ShowShearDlg(long hWnd);
Overview	Refer to Using Imaging Common Dialogs

Remarks

Displays the Shear dialog box, and gets the options for the Shear method.

The layout and action of the dialog depends on the flags set in the UIFlags property. Possible options are:

Value	Meaning
SHEAR_AUTOPROCESS	[0x00000001] process the image on OK; The Common Dialog Bitmap property must be assigned a valid bitmap before calling this method.
SHEAR_SHOW_CONTEXTHELP	[0x00000002] dialog should contain a context sensitive help icon.
SHEAR_SHOW_PREVIEW	[0x00000004] show preview of the image in the dialog. The Common Dialog Bitmap property must be assigned a valid bitmap before calling this method.
SHEAR_SHOW_BACKCOLOR	[0x00000008] dialog will show the background color button.
SHEAR_SHOW_HORIZONTAL	[0x00000010] dialog will show the horizontal check box.

If you include SHEAR_AUTOPROCESS or SHEAR_SHOW_PREVIEW in the UIFlags property, the Common Dialog Bitmap property must be assigned a valid bitmap before calling this method.

The properties associated with this dialog are:

Angle property

EnableHorizontal property

BackColor property

To include a Help button in the dialog, set the ShowHelpButton property to VARIANT_TRUE.

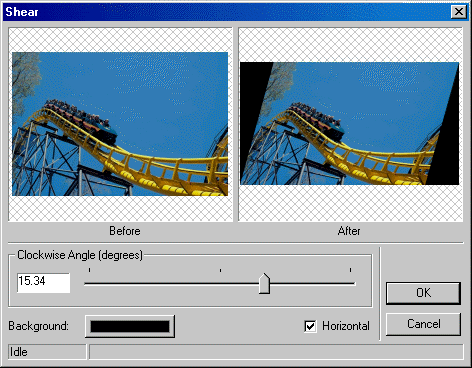

The Shear dialog can be seen below:

$image\Shear.gif$
