ShowTransitionDlg method (ILEADRasterDlgEfx)

Visual Basic example

Visual C++ example



Syntax

short ShowTransitionDlg (long hWnd);

Overview

Refer to Using Imaging Common Dialogs

Remarks

Displays the Get Transition dialog box, and gets the options for Transition property.

The layout and action of the dialog depends on the flags set in the UIFlags property. Possible options are:

Value

Meaning

TRANSITION_SHOW_CONTEXTHELP

[0x00000001] dialog should contain a context sensitive help icon.

TRANSITION_SHOW_PREVIEW

[0x00000002] show a preview of the image in the dialog. The Common Dialog Bitmap property must be assigned a valid bitmap before calling this method.

TRANSITION_AUTOPREVIEW

[0x00000004] auto preview when options change

TRANSITION_FORECOLOR

[0x00000008] fore color is an option

TRANSITION_BACKCOLOR

[0x00000010] back color is an option

TRANSITION_DELAY

[0x00000020] transition delay is an option

TRANSITION_GRAIN

[0x00000040] transition grain is an option

TRANSITION_EFFECT

[0x00000080] paint effect is an option

TRANSITION_PASSES

[0x00000100] transition passes is an option

TRANSITION_WAND

[0x00000200] wand is an option

TRANSITION_TRANSPARENT

[0x00000400] transparency is an option

TRANSITION_GRADIENT

[0x00000800] gradient is an option

These values may be combined by ORing them.

If you include TRANSITION_SHOW_PREVIEW in the UIFlags property, the Common Dialog Bitmap property must be assigned a valid bitmap before calling this method.

To include a Help button in the dialog, set the ShowHelpButton property to VARIANT_TRUE.

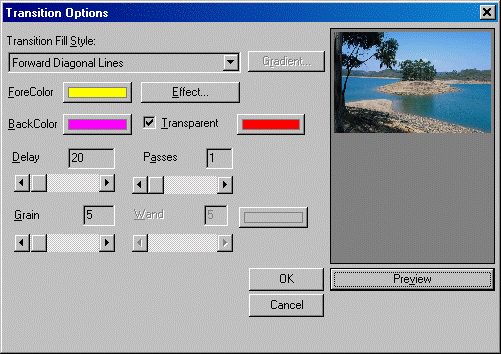

The Get Transition dialog can be seen below:


See Also

Elements

TransitionEffect property, ShowHelpButton property, UIFlags property
