PlaneCommand Class
See Also  Members   Example
Leadtools.ImageProcessing.SpecialEffects Namespace : PlaneCommand Class



Places the image on parallel planes along the Z-axis. This command is available in the Raster Pro and above toolkits.

Syntax

Visual Basic (Declaration)
Public Class PlaneCommand
   Inherits RasterCommand
   Implements IRasterCommand
Visual Basic (Usage) Copy Code
Dim instance As PlaneCommand
C#
public class PlaneCommand : RasterCommand, IRasterCommand
C++/CLI
public ref class PlaneCommand : public RasterCommand, IRasterCommand

Example

Run the PlaneCommand on an image.

Visual Basic Copy Code
Public Sub PlaneCommandExample()
   RasterCodecs.Startup()
   Dim codecs As New RasterCodecs()
   codecs.ThrowExceptionsOnInvalidImages = True

   Dim leadImage As RasterImage = codecs.Load(LeadtoolsExamples.Common.ImagesPath.Path + "Master.jpg")

   ' Prepare the command
   Dim command As PlaneCommand = New PlaneCommand
   command.CenterPoint = New Point(leadImage.Width \ 2, leadImage.Height \ 2)
   command.ZValue = 0
   command.Distance = leadImage.Height
   command.PlaneOffset = leadImage.Width \ 2
   command.Repeat = -1
   command.PyramidAngle = 0
   command.Stretch = 25
   command.StartBright = 0
   command.EndBright = 100
   command.BrightLength = 20000
   command.BrightColor = New RasterColor(255, 255, 255)
   command.FillColor = New RasterColor(0, 0, 0)
   command.Flags = PlaneCommandFlags.Right Or PlaneCommandFlags.Left Or PlaneCommandFlags.Color
   command.Run(leadImage)
   codecs.Save(leadImage, LeadtoolsExamples.Common.ImagesPath.Path + "Result.jpg", RasterImageFormat.Jpeg, 24)

   RasterCodecs.Shutdown()
End Sub
C# Copy Code
public void PlaneCommandExample()
{
   // Load an image
   RasterCodecs.Startup();
   RasterCodecs codecs = new RasterCodecs();
   codecs.ThrowExceptionsOnInvalidImages = true;

   RasterImage image = codecs.Load(LeadtoolsExamples.Common.ImagesPath.Path + "Master.jpg");

   // Prepare the command
   PlaneCommand command = new PlaneCommand();
   command.CenterPoint = new Point(image.Width / 2, image.Height / 2);
   command.ZValue = 0;
   command.Distance = image.Height;
   command.PlaneOffset = image.Width /2;
   command.Repeat = -1;
   command.PyramidAngle = 0;
   command.Stretch = 25;
   command.StartBright = 0;
   command.EndBright = 100;
   command.BrightLength = 20000;
   command.BrightColor = new RasterColor(255, 255, 255);
   command.FillColor = new RasterColor(0, 0, 0);
   command.Flags = PlaneCommandFlags.Right | PlaneCommandFlags.Left | PlaneCommandFlags.Color;
   command.Run(image);
   codecs.Save(image, LeadtoolsExamples.Common.ImagesPath.Path + "Result.jpg", RasterImageFormat.Jpeg, 24);

   RasterCodecs.Shutdown();
}

Remarks

  • This command shows the effect of placing images on planes along the Z-axis and bending them toward a specific point. These images may be placed above, below, to the left or to the right of the Z-axis. An external light source of the specified color and brightness may be shined on the images. The brightness may vary along the z-axis according to the BrightLength value.
  • By changing CenterPoint and the viewing screen Z-offset, you can simulate moving along the axis.
  • If the image has a region, the effect will be applied on the region dimensions only.
  • For an example, see the following figure:

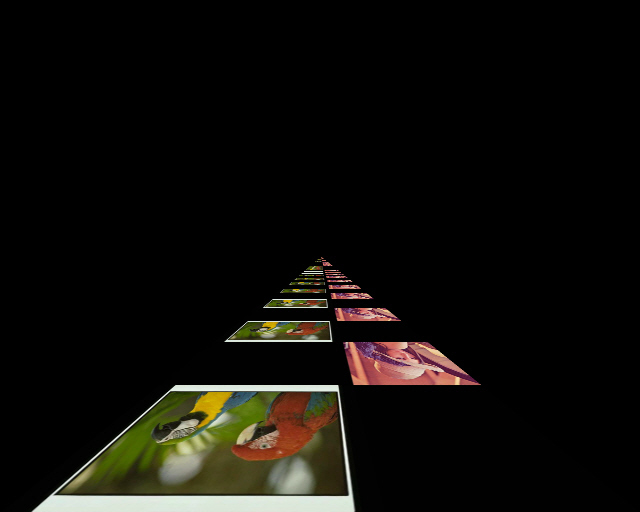

    The following figure shows the same image, after the effect has been applied:

    To obtain this effect, the following settings were used with the command:
    1. CenterPoint = new System.Drawing.Point(320, 256)
    2. ZValue = 0
    3. Distance = 256
    4. PlaneOffset = 256
    5. Repeat = -1
    6. PyramidAngle = 0
    7. Stretch = 100
    8. StartBright = 0
    9. EndBright = 0
    10. BrightLength = 50
    11. BrightColor = new RasterColor(255, 255, 255)
    12. FillColor = new RasterColor(0, 0, 0)
    13. Flags = PlaneCommandFlags.Down | PlaneCommandFlags.Color
    14. This command does not support 32-bit grayscale images.
  • This command supports 12- and 16-bit grayscale and 48- and 64-bit color images. Support for 12- and 16-bit grayscale and 48- and 64-bit color images is available only in the Document/Medical toolkits.
  • This command does not support signed data images.
For more information, refer to Introduction to Image Processing With LEADTOOLS.
For more information, refer to Correcting Colors.
