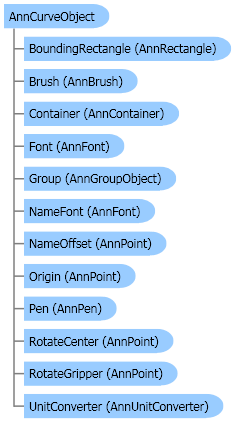

Object Model

Syntax

Visual Basic (Declaration)
<SerializableAttribute()> Public Class AnnCurveObject Inherits AnnPolylineObject Implements ICloneable, IDisposable, ISerializable

Visual Basic (Usage)	Copy Code
Dim instance As AnnCurveObject

C#
[SerializableAttribute()] public class AnnCurveObject : AnnPolylineObject, ICloneable, IDisposable, ISerializable

C++/CLI
[SerializableAttribute()] public ref class AnnCurveObject : public AnnPolylineObject, ICloneable, IDisposable, ISerializable

Example

This example creates a curve object.

Visual Basic	Copy Code
Private Sub AnnCurveObject_AnnCurveObject(ByVal container As AnnContainer) Dim curve As AnnCurveObject = New AnnCurveObject() curve.Points.Add(New AnnPoint(100, 100, AnnUnit.Pixel)) curve.Points.Add(New AnnPoint(200, 100, AnnUnit.Pixel)) curve.Points.Add(New AnnPoint(200, 200, AnnUnit.Pixel)) curve.Points.Add(New AnnPoint(100, 300, AnnUnit.Pixel)) curve.Pen = New AnnPen(Color.Red, New AnnLength(1, AnnUnit.Pixel)) curve.Tension = 1 container.Objects.Add(curve) End Sub

Visual Basic

Copy Code

Private Sub AnnCurveObject_AnnCurveObject(ByVal container As AnnContainer)
   Dim curve As AnnCurveObject = New AnnCurveObject()
   curve.Points.Add(New AnnPoint(100, 100, AnnUnit.Pixel))
   curve.Points.Add(New AnnPoint(200, 100, AnnUnit.Pixel))
   curve.Points.Add(New AnnPoint(200, 200, AnnUnit.Pixel))
   curve.Points.Add(New AnnPoint(100, 300, AnnUnit.Pixel))
   curve.Pen = New AnnPen(Color.Red, New AnnLength(1, AnnUnit.Pixel))
   curve.Tension = 1
   container.Objects.Add(curve)
End Sub

C#	Copy Code
private void AnnCurveObject_AnnCurveObject(AnnContainer container) { AnnCurveObject curve = new AnnCurveObject(); curve.Points.Add(new AnnPoint(100, 100, AnnUnit.Pixel)); curve.Points.Add(new AnnPoint(200, 100, AnnUnit.Pixel)); curve.Points.Add(new AnnPoint(200, 200, AnnUnit.Pixel)); curve.Points.Add(new AnnPoint(100, 300, AnnUnit.Pixel)); curve.Pen = new AnnPen(Color.Red, new AnnLength(1, AnnUnit.Pixel)); curve.Tension = 1; container.Objects.Add(curve); }

Copy Code

private void AnnCurveObject_AnnCurveObject(AnnContainer container)
{
   AnnCurveObject curve = new AnnCurveObject();
   curve.Points.Add(new AnnPoint(100, 100, AnnUnit.Pixel));
   curve.Points.Add(new AnnPoint(200, 100, AnnUnit.Pixel));
   curve.Points.Add(new AnnPoint(200, 200, AnnUnit.Pixel));
   curve.Points.Add(new AnnPoint(100, 300, AnnUnit.Pixel));
   curve.Pen = new AnnPen(Color.Red, new AnnLength(1, AnnUnit.Pixel));
   curve.Tension = 1;
   container.Objects.Add(curve);
}

Remarks

The curve object is a spline curve that contains a collection of AnnPoint points, a Tension value and an AnnPen pen. For more information about the curve annotation object refer to AnnCurveObject. For more information about the automated curve annotation object, refer to Annotation Objects - Automated Features.

Inheritance Hierarchy

System.Object
   Leadtools.Annotations.AnnDrawable
      Leadtools.Annotations.AnnObject
         Leadtools.Annotations.AnnPolylineObject
            Leadtools.Annotations.AnnCurveObject

Requirements

Target Platforms: Microsoft .NET Framework 2.0, Windows 2000, Windows XP, Windows Server 2003 family, Windows Server 2008 family, Windows Vista, Windows 7

LEADTOOLS Annotations (Leadtools.Annotations assembly)	Send comments on this topic. \| Back to Introduction - All Topics \| Help Version 17.0.3.29
