AnnRedactionObject Class
See Also  Members
Leadtools.Annotations Namespace : AnnRedactionObject Class



The AnnRedactionObject Class is available in LEADTOOLS Document and Medical Imaging toolkits.

Defines an annotation redaction object.

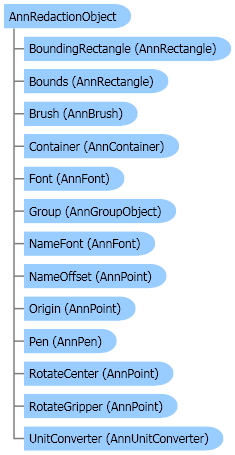

Object Model

AnnRedactionObject ClassAnnRectangle StructureAnnRectangle StructureAnnBrush ClassAnnContainer ClassAnnFont ClassAnnGroupObject ClassAnnFont ClassAnnPoint StructureAnnPoint StructureAnnPen ClassAnnPoint StructureAnnPoint StructureAnnUnitConverter Class

Syntax

Visual Basic (Declaration)
<SerializableAttribute()>
Public Class AnnRedactionObject
   Inherits AnnRectangleObject
   Implements ICloneable, IDisposable, ISerializable
Visual Basic (Usage)Copy Code
Dim instance As AnnRedactionObject
C#
[SerializableAttribute()]
public class AnnRedactionObject : AnnRectangleObject, ICloneable, IDisposable, ISerializable
C++/CLI
[SerializableAttribute()]
public ref class AnnRedactionObject : public AnnRectangleObject, ICloneable, IDisposable, ISerializable

Example

This example creates a new redaction object, and then addes it to the container.

Visual BasicCopy Code
Private Sub AnnRedactionObject_AnnRedactionObject(ByVal viewer As RasterImageViewer, ByVal container As AnnContainer)
   Dim redaction As AnnRedactionObject = New AnnRedactionObject()
   redaction.Bounds = New AnnRectangle(100, 100, 300, 300, AnnUnit.Pixel)
   container.Objects.Add(redaction)
   viewer.Invalidate(redaction.InvalidRectangle)
   MessageBox.Show(String.Format("Added. IsRealized: {0}, Objects in container: {1}", redaction.IsRealized, container.Objects.Count))

   ' realize the redaction object
   redaction.Realize(viewer)

   viewer.Invalidate(redaction.InvalidRectangle)
   MessageBox.Show(String.Format("Realized. IsRealized: {0}, Objects in container: {1}", redaction.IsRealized, container.Objects.Count))

   ' remove the redaction object from the container
   container.Objects.Remove(redaction)
   viewer.Invalidate()
   MessageBox.Show(String.Format("Removed. Objects in container: {0}", container.Objects.Count))

   ' add the redaction object back
   container.Objects.Add(redaction)
   viewer.Invalidate(redaction.InvalidRectangle)
   MessageBox.Show(String.Format("Added back. IsRealized: {0}, Objects in container: {1}", redaction.IsRealized, container.Objects.Count))

   ' restore the redaction object
   redaction.Restore(viewer)
   viewer.Invalidate(redaction.InvalidRectangle)
   MessageBox.Show(String.Format("Restored. IsRealized: {0}, Objects in container: {1}", redaction.IsRealized, container.Objects.Count))

   ' remove the redaction again from the container
   container.Objects.Remove(redaction)
   viewer.Invalidate()
   MessageBox.Show(String.Format("Removed. Objects in container: {0}", container.Objects.Count))
End Sub
C#Copy Code
private void AnnRedactionObject_AnnRedactionObject(RasterImageViewer viewer, AnnContainer container)
{
   AnnRedactionObject redaction = new AnnRedactionObject();
   redaction.Bounds = new AnnRectangle(100, 100, 300, 300, AnnUnit.Pixel);
   container.Objects.Add(redaction);
   viewer.Invalidate(redaction.InvalidRectangle);
   MessageBox.Show(String.Format("Added. IsRealized: {0}, Objects in container: {1}", redaction.IsRealized, container.Objects.Count));

   // realize the redaction object
   redaction.Realize(viewer);

   viewer.Invalidate(redaction.InvalidRectangle);
   MessageBox.Show(String.Format("Realized. IsRealized: {0}, Objects in container: {1}", redaction.IsRealized, container.Objects.Count));

   // remove the redaction object from the container
   container.Objects.Remove(redaction);
   viewer.Invalidate();
   MessageBox.Show(String.Format("Removed. Objects in container: {0}", container.Objects.Count));

   // add the redaction object back
   container.Objects.Add(redaction);
   viewer.Invalidate(redaction.InvalidRectangle);
   MessageBox.Show(String.Format("Added back. IsRealized: {0}, Objects in container: {1}", redaction.IsRealized, container.Objects.Count));

   // restore the redaction object
   redaction.Restore(viewer);
   viewer.Invalidate(redaction.InvalidRectangle);
   MessageBox.Show(String.Format("Restored. IsRealized: {0}, Objects in container: {1}", redaction.IsRealized, container.Objects.Count));

   // remove the redaction again from the container
   container.Objects.Remove(redaction);
   viewer.Invalidate();
   MessageBox.Show(String.Format("Removed. Objects in container: {0}", container.Objects.Count));
}

Remarks

The redaction annotation object is a rectangle with default properties that are appropriate for blacking out an area. The Realize(RasterImageViewer) method lets you block the area on the image with the current object brush value. The Restore(RasterImageViewer) method lets you restore the area back. For more information about the redaction annotation object refer to AnnRedactionObject. For more information about the automated redaction annotation object, refer to Annotation Objects - Automated Features.

If you are interested in locking an object, refer to Implementing Annotation Security.

Inheritance Hierarchy

System.Object
   Leadtools.Annotations.AnnDrawable
      Leadtools.Annotations.AnnObject
         Leadtools.Annotations.AnnRectangleObject
            Leadtools.Annotations.AnnRedactionObject

Requirements

Target Platforms: Microsoft .NET Framework 2.0, Windows 2000, Windows XP, Windows Server 2003 family, Windows Server 2008 family, Windows Vista, Windows 7

See Also

Leadtools.Annotations requires a Document or Medical toolkit license and unlock key. For more information, refer to: Imaging Pro/Document/Medical Features
