AnnTextRollupObject Class
See Also  Members
Leadtools.Annotations Namespace : AnnTextRollupObject Class



The AnnTextRollupObject Class is available in LEADTOOLS Document and Medical Imaging toolkits.

This class provides support for creating and managing text rollup annotation objects.

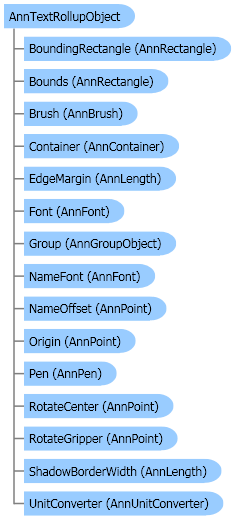

Object Model

AnnTextRollupObject ClassAnnRectangle StructureAnnRectangle StructureAnnBrush ClassAnnContainer ClassAnnLength StructureAnnFont ClassAnnGroupObject ClassAnnFont ClassAnnPoint StructureAnnPoint StructureAnnPen ClassAnnPoint StructureAnnPoint StructureAnnLength StructureAnnUnitConverter Class

Syntax

Visual Basic (Declaration)
<SerializableAttribute()>
Public Class AnnTextRollupObject
   Inherits AnnNoteObject
   Implements IAnnTextObject, ICloneable, IDisposable, ISerializable
Visual Basic (Usage)Copy Code
Dim instance As AnnTextRollupObject
C#
[SerializableAttribute()]
public class AnnTextRollupObject : AnnNoteObject, IAnnTextObject, ICloneable, IDisposable, ISerializable
C++/CLI
[SerializableAttribute()]
public ref class AnnTextRollupObject : public AnnNoteObject, IAnnTextObject, ICloneable, IDisposable, ISerializable

Example

This example creates a new text rollup object.

Visual BasicCopy Code
Private Sub AnnTextRollupObject_AnnTextRollupObject(ByVal viewer As RasterImageViewer, ByVal container As AnnContainer)
   Dim textRollup As AnnTextRollupObject = New AnnTextRollupObject()
   textRollup.Text = "My TextRollup object"
   textRollup.Font = New AnnFont("Arial", New AnnLength(10, AnnUnit.Point), FontStyle.Regular)
   textRollup.EdgeMargin = AnnLength.Empty
   textRollup.ShadowBorderWidth = New AnnLength(6, AnnUnit.Pixel)
   textRollup.Alignment = StringAlignment.Center
   textRollup.LineAlignment = StringAlignment.Center
   textRollup.Bounds = New AnnRectangle(100, 200, 400, 600, AnnUnit.Pixel)
   container.Objects.Add(textRollup)
   textRollup.Expanded = False
   viewer.Invalidate(textRollup.InvalidRectangle)
   MessageBox.Show("Not expanded")

   textRollup.Expanded = True
   viewer.Invalidate(textRollup.InvalidRectangle)
   MessageBox.Show("expanded")
End Sub
C#Copy Code
private void AnnTextRollupObject_AnnTextRollupObject(RasterImageViewer viewer, AnnContainer container)
{
   AnnTextRollupObject textRollup = new AnnTextRollupObject();
   textRollup.Text = "My TextRollup object";
   textRollup.Font = new AnnFont("Arial", new AnnLength(10, AnnUnit.Point), FontStyle.Regular);
   textRollup.EdgeMargin = AnnLength.Empty;
   textRollup.ShadowBorderWidth = new AnnLength(6, AnnUnit.Pixel);
   textRollup.Alignment = StringAlignment.Center;
   textRollup.LineAlignment = StringAlignment.Center;
   textRollup.Bounds = new AnnRectangle(100, 200, 400, 600, AnnUnit.Pixel);
   container.Objects.Add(textRollup);
   textRollup.Expanded = false;
   viewer.Invalidate(textRollup.InvalidRectangle);
   MessageBox.Show("Not expanded");

   textRollup.Expanded = true;
   viewer.Invalidate(textRollup.InvalidRectangle);
   MessageBox.Show("expanded");
}

Remarks

The text rollup annotation object extends AnnNoteObject by adding an Expanded property. When this property is set to false, the text rollup object looks and behaves like a normal note. When Expanded is set to false, the text rollup object will shrink to show only one line of text. This saves space on the container surface. For more information, refer to Using Text in Annotation Object. For more information about the text rollup annotation object refer to AnnTextRollupObject. For more information about the automated text rollup annotation object, refer to Annotation Objects - Automated Features.

Inheritance Hierarchy

System.Object
   Leadtools.Annotations.AnnDrawable
      Leadtools.Annotations.AnnObject
         Leadtools.Annotations.AnnRectangleObject
            Leadtools.Annotations.AnnTextObject
               Leadtools.Annotations.AnnNoteObject
                  Leadtools.Annotations.AnnTextRollupObject

Requirements

Target Platforms: Microsoft .NET Framework 2.0, Windows 2000, Windows XP, Windows Server 2003 family, Windows Server 2008 family, Windows Vista, Windows 7

See Also

Leadtools.Annotations requires a Document or Medical toolkit license and unlock key. For more information, refer to: Imaging Pro/Document/Medical Features
