The AnnProtractorEditDesigner Class is available in LEADTOOLS Document and Medical Imaging toolkits.
This class extends AnnEditDesigner to provide functionality for editing an AnnProtractorObject on an annotation container.

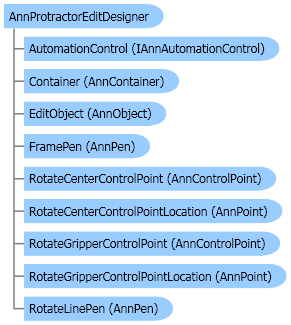

Object Model
Syntax
| Visual Basic (Declaration) | |
|---|---|
<SerializableAttribute()> Public Class AnnProtractorEditDesigner Inherits AnnEditDesigner | |
| Visual Basic (Usage) |  Copy Code |
|---|---|
Dim instance As AnnProtractorEditDesigner | |
| C# | |
|---|---|
[SerializableAttribute()] public class AnnProtractorEditDesigner : AnnEditDesigner | |
| C++/CLI | |
|---|---|
[SerializableAttribute()] public ref class AnnProtractorEditDesigner : public AnnEditDesigner | |
Example
For a complete example on how to use annotation draw and edit designers, refer to AnnDesigner.
Inheritance Hierarchy
System.Object
Leadtools.Annotations.AnnDesigner
Leadtools.Annotations.AnnEditDesigner
Leadtools.Annotations.AnnProtractorEditDesigner
Requirements
Target Platforms: Microsoft .NET Framework 2.0, Windows 2000, Windows XP, Windows Server 2003 family, Windows Server 2008 family, Windows Vista, Windows 7
