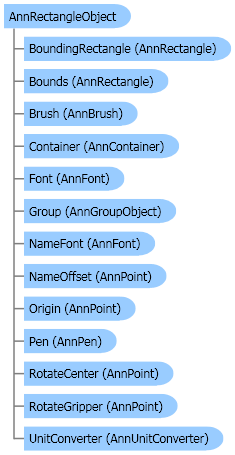

Object Model

Syntax

Visual Basic (Declaration)
<SerializableAttribute()> Public Class AnnRectangleObject Inherits AnnObject Implements ICloneable, IDisposable, ISerializable

Visual Basic (Usage)	Copy Code
Dim instance As AnnRectangleObject

C#
[SerializableAttribute()] public class AnnRectangleObject : AnnObject, ICloneable, IDisposable, ISerializable

C++/CLI
[SerializableAttribute()] public ref class AnnRectangleObject : public AnnObject, ICloneable, IDisposable, ISerializable

Example

This example creates a new rectangle object with top, left at 100, 200, width, height of 400, 600 pixels, a red pen and a white brush and then adds it to a container.

Visual Basic	Copy Code
Private Sub AnnRectangleObject_AnnRectangleObject(ByVal container As AnnContainer) Dim rect As AnnRectangleObject = New AnnRectangleObject() rect.Pen = New AnnPen(Color.Red, New AnnLength(1, AnnUnit.Pixel)) rect.Brush = New AnnSolidBrush(Color.White) rect.Bounds = New AnnRectangle(100, 200, 400, 600, AnnUnit.Pixel) container.Objects.Add(rect) End Sub

Visual Basic

Copy Code

Private Sub AnnRectangleObject_AnnRectangleObject(ByVal container As AnnContainer)
   Dim rect As AnnRectangleObject = New AnnRectangleObject()
   rect.Pen = New AnnPen(Color.Red, New AnnLength(1, AnnUnit.Pixel))
   rect.Brush = New AnnSolidBrush(Color.White)
   rect.Bounds = New AnnRectangle(100, 200, 400, 600, AnnUnit.Pixel)
   container.Objects.Add(rect)
End Sub

C#	Copy Code
private void AnnRectangleObject_AnnRectangleObject(AnnContainer container) { AnnRectangleObject rect = new AnnRectangleObject(); rect.Pen = new AnnPen(Color.Red, new AnnLength(1, AnnUnit.Pixel)); rect.Brush = new AnnSolidBrush(Color.White); rect.Bounds = new AnnRectangle(100, 200, 400, 600, AnnUnit.Pixel); container.Objects.Add(rect); }

Copy Code

private void AnnRectangleObject_AnnRectangleObject(AnnContainer container)
{
   AnnRectangleObject rect = new AnnRectangleObject();
   rect.Pen = new AnnPen(Color.Red, new AnnLength(1, AnnUnit.Pixel));
   rect.Brush = new AnnSolidBrush(Color.White);
   rect.Bounds = new AnnRectangle(100, 200, 400, 600, AnnUnit.Pixel);
   container.Objects.Add(rect);
}

Remarks

The rectangle annotation object is a simple rectangle that has a bounding rectangle, a pen and a brush. For more information about the rectangle annotation object refer to AnnRectangleObject. For more information about the automated rectangle annotation object, refer to Annotation Objects - Automated Features.

Inheritance Hierarchy

Requirements

Target Platforms: Microsoft .NET Framework 2.0, Windows 2000, Windows XP, Windows Server 2003 family, Windows Server 2008 family, Windows Vista, Windows 7

LEADTOOLS Annotations (Leadtools.Annotations assembly)	Send comments on this topic. \| Back to Introduction - All Topics \| Help Version 17.0.3.29
