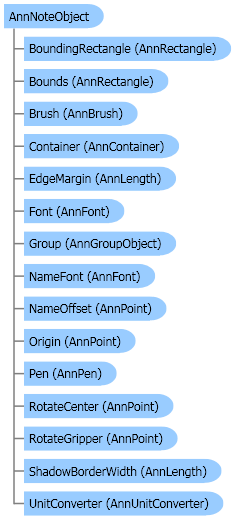

Object Model

Syntax

Visual Basic (Declaration)
<SerializableAttribute()> Public Class AnnNoteObject Inherits AnnTextObject Implements IAnnTextObject, ICloneable, IDisposable, ISerializable

Visual Basic (Usage)	Copy Code
Dim instance As AnnNoteObject

C#
[SerializableAttribute()] public class AnnNoteObject : AnnTextObject, IAnnTextObject, ICloneable, IDisposable, ISerializable

C++/CLI
[SerializableAttribute()] public ref class AnnNoteObject : public AnnTextObject, IAnnTextObject, ICloneable, IDisposable, ISerializable

Example

This example creates a new note object and then adds it to a container.

Visual Basic	Copy Code
Private Sub AnnNoteObject_AnnNoteObject(ByVal container As AnnContainer, ByVal textString As String) Dim note As AnnNoteObject = New AnnNoteObject() note.Text = textString note.Font = New AnnFont("Arial", New AnnLength(10, AnnUnit.Point), FontStyle.Regular) note.EdgeMargin = AnnLength.Empty note.ShadowBorderWidth = New AnnLength(6, AnnUnit.Pixel) note.Alignment = StringAlignment.Center note.LineAlignment = StringAlignment.Center note.Bounds = New AnnRectangle(100, 200, 400, 600, AnnUnit.Pixel) container.Objects.Add(note) End Sub

Visual Basic

Copy Code

Private Sub AnnNoteObject_AnnNoteObject(ByVal container As AnnContainer, ByVal textString As String)
   Dim note As AnnNoteObject = New AnnNoteObject()
   note.Text = textString
   note.Font = New AnnFont("Arial", New AnnLength(10, AnnUnit.Point), FontStyle.Regular)
   note.EdgeMargin = AnnLength.Empty
   note.ShadowBorderWidth = New AnnLength(6, AnnUnit.Pixel)
   note.Alignment = StringAlignment.Center
   note.LineAlignment = StringAlignment.Center
   note.Bounds = New AnnRectangle(100, 200, 400, 600, AnnUnit.Pixel)
   container.Objects.Add(note)
End Sub

C#	Copy Code
private void AnnNoteObject_AnnNoteObject(AnnContainer container, string textString) { AnnNoteObject note = new AnnNoteObject(); note.Text = textString; note.Font = new AnnFont("Arial", new AnnLength(10, AnnUnit.Point), FontStyle.Regular); note.EdgeMargin = AnnLength.Empty; note.ShadowBorderWidth = new AnnLength(6, AnnUnit.Pixel); note.Alignment = StringAlignment.Center; note.LineAlignment = StringAlignment.Center; note.Bounds = new AnnRectangle(100, 200, 400, 600, AnnUnit.Pixel); container.Objects.Add(note); }

Copy Code

private void AnnNoteObject_AnnNoteObject(AnnContainer container, string textString)
{
   AnnNoteObject note = new AnnNoteObject();
   note.Text = textString;
   note.Font = new AnnFont("Arial", new AnnLength(10, AnnUnit.Point), FontStyle.Regular);
   note.EdgeMargin = AnnLength.Empty;
   note.ShadowBorderWidth = new AnnLength(6, AnnUnit.Pixel);
   note.Alignment = StringAlignment.Center;
   note.LineAlignment = StringAlignment.Center;
   note.Bounds = new AnnRectangle(100, 200, 400, 600, AnnUnit.Pixel);
   container.Objects.Add(note);
}

Remarks

The note annotation object is a rectangle with a shadow border and color background (yellow by default). It contains a text string with font properties. The text will wrap on word breaks within the object's specified rectangle. For more information about the note annotation object refer to AnnNoteObject. For more information about the automated note annotation object, refer to Annotation Objects - Automated Features.

Inheritance Hierarchy

System.Object
   Leadtools.Annotations.AnnDrawable
      Leadtools.Annotations.AnnObject
         Leadtools.Annotations.AnnRectangleObject
            Leadtools.Annotations.AnnTextObject
               Leadtools.Annotations.AnnNoteObject
                  Leadtools.Annotations.AnnTextRollupObject

Requirements

Target Platforms: Microsoft .NET Framework 2.0, Windows 2000, Windows XP, Windows Server 2003 family, Windows Server 2008 family, Windows Vista, Windows 7

LEADTOOLS Annotations (Leadtools.Annotations assembly)	Send comments on this topic. \| Back to Introduction - All Topics \| Help Version 17.0.3.29
