FindLastElement Method
See Also
Leadtools.Dicom Namespace > DicomDataSet Class : FindLastElement Method



element
An item in the Data Set.
tag
Tag of the item to find.
tree
true to evaluate the Data Set as a tree; false to evaluate the Data Set as a list.
element
An item in the Data Set.
tag
Tag of the item to find.
tree
true to evaluate the Data Set as a tree; false to evaluate the Data Set as a list.
Returns the last item in the Data Set with the specified Tag. Supported in Silverlight, Windows Phone 7.

Syntax

Visual Basic (Declaration)
Public Function FindLastElement( _
   ByVal element As DicomElement, _
   ByVal tag As Long, _
   ByVal tree As Boolean _
) As DicomElement
Visual Basic (Usage)Copy Code
Dim instance As DicomDataSet
Dim element As DicomElement
Dim tag As Long
Dim tree As Boolean
Dim value As DicomElement

value = instance.FindLastElement(element, tag, tree)
C#
public DicomElement FindLastElement(
   DicomElement element,
   long tag,
   bool tree
)
C++/CLI
public:
DicomElement^ FindLastElement(
   DicomElement^ element,
   int64 tag,
   bool tree
)

Parameters

element
An item in the Data Set.
tag
Tag of the item to find.
tree
true to evaluate the Data Set as a tree; false to evaluate the Data Set as a list.

Return Value

The last item in the Data Set with the specified Tag, or a null reference (Nothing in Visual Basic) if an item with the specified Tag was not found.

Example

For an example, refer to Load(String,DicomDataSetLoadFlags).

Remarks

For the sake of the following illustrations, the order of siblings is top to bottom. Therefore last is the item closest to the bottom.

If the Data Set is evaluated as a tree structure, this method returns the last item on the same level as element with the same parent as element, that has Tag userTag.

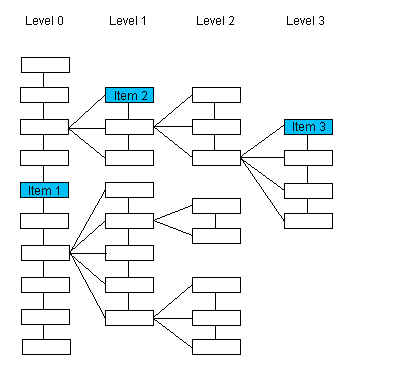

Please note that the numbering of the items of interest in this first illustration is arbitrary and does not imply order.

If the passed object points to: The method returns an object pointing to:
Item 1 The last sibling (same level, same parent) of Item 1 that has Tag userTag, if such an item exists. If such an item does not exist, the method returns null. Searching begins at the bottom.
Item 2 The last sibling (same level, same parent) of Item 2 that has Tag userTag, if such an item exists. If such an item does not exist, the method returns null. Searching begins at the bottom.
Item 3 The last sibling (same level, same parent) of Item 3 that has Tag userTag, if such an item exists. If such an item does not exist, the method returns null. Searching begins at the bottom.

If the Data Set is evaluated as a list, this method returns the last item in the entire list that has Tag userTag. Searching begins at the bottom of the list.

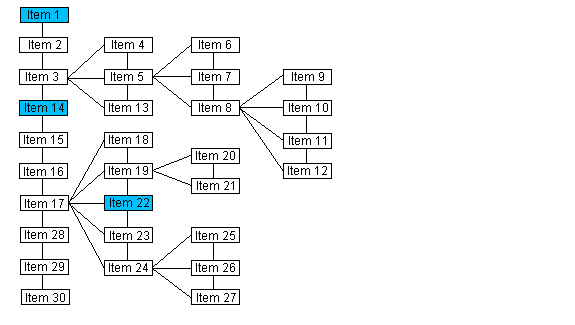

Please note that the numbering of the items in the following illustration does indicate the order of the items when the Data Set is evaluated as a list.

If the passed object points to: The method returns an object pointing to:
Item 1 The last item in the list that has Tag userTag, if such an item exists. If an item with Tag userTag is not found, null is returned. Searching begins at the bottom.
Item 14 The last item in the list that has Tag userTag, if such an item exists. If an item with Tag userTag is not found, null is returned. Searching begins at the bottom.
Item 22 The last item in the list that has Tag userTag, if such an item exists. If an item with Tag userTag is not found, null is returned. Searching begins at the bottom.

The following methods will also help you find elements in the Data Set with a specific Tag:

FindFirstElement

Leadtools.Dicom.DicomDataSet.FindPreviousElement

Leadtools.Dicom.DicomDataSet.FindNextElement

The following methods will help you find specific modules in the Data Set:

Leadtools.Dicom.DicomDataSet.FindModule

Leadtools.Dicom.DicomDataSet.FindModuleByIndex

Requirements

Target Platforms: Silverlight 3.0, Windows XP, Windows Server 2003 family, Windows Server 2008 family, Windows Vista, Windows 7, MAC OS/X (Intel Only)

See Also

Leadtools.Dicom requires a Medical toolkit server license and unlock key. For more information, refer to: Imaging Pro/Document/Medical Features
