Medical3DObject Class

The Medical3DObject class is used to contain the 3D object source image. It also contains properties and methods for adjusting object characteristics.

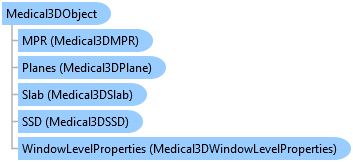

Object Model

Syntax

Visual Basic
C#
WinRT C#
WinRT JavaScript
C++/CLI

public class Medical3DObject

'Declaration

Public Class Medical3DObject

'Usage

Dim instance As Medical3DObject

public sealed class Medical3DObject

function Leadtools.Medical3D.Medical3DObject()

public ref class Medical3DObject

Remarks

This is the class that contains the 3D object. You should populate this class with a multi-page image. Then, you can add the object to the container. It is best to use memory efficient loading when creating large 3D objects. For more information, refer to the MemoryEfficientInit method.

Example

Visual Basic
C#
WinRT C#
WinRT JavaScript
Silverlight C#
Silverlight VB

<Test> _
Public Sub Medical3DControlExample()
   Dim LoadObject As Medical3DLoadDICOMSeriesExamples = New Medical3DLoadDICOMSeriesExamples()
   Dim output As MedicalViewerSeriesManager = LoadObject.LoadJamesHead()
   Dim form As MainForm1 = New MainForm1(output)
   form.ShowDialog()
End Sub

' MainForm1 will be the owner of the medical viewer control.
Private Class MainForm1 : Inherits Form
   Private _medical3DControl As Medical3DControl

   Public Sub New(ByVal output As MedicalViewerSeriesManager)
      Dim _codecs As RasterCodecs = New RasterCodecs()
      Dim _image As RasterImage

      Dim codecsInformation As CodecsImageInfo

      _medical3DControl = New Medical3DControl()
      AddHandler SizeChanged, AddressOf MainForm1_SizeChanged
      AddHandler FormClosing, AddressOf MainForm1_FormClosing


      _medical3DControl.ObjectsContainer.Objects.Add(New Medical3DObject())

      Dim index As Integer

      codecsInformation = _codecs.GetInformation(CStr(output.Stacks(0).Items(0).Data), True)


      Dim width As Integer = codecsInformation.Width
      Dim height As Integer = codecsInformation.Height
      Dim depth As Integer = 256

      _medical3DControl.ObjectsContainer.Objects(0).MemoryEfficientInit(depth)

      index = 0
      Do While index < depth

         _image = _codecs.Load(CStr(output.Stacks(0).Items(index).Data), 0, CodecsLoadByteOrder.BgrOrGrayOrRomm, 1, 1)
         _medical3DControl.ObjectsContainer.Objects(0).MemoryEfficientSetFrame(_image, index, output.Stacks(0).Items(index).ImagePosition, True)
         index += 1
      Loop

      Dim spearator As String = ("\")
      Dim test As String() = output.Stacks(0).Items(0).ImageOrientation.Split(spearator.ToCharArray())
      Dim orientation As Single() = New Single(5){}
      Dim i As Integer
      For i = 0 To 5
         orientation(i) = CSng(Convert.ToDouble(test(i)))
      Next i

      _medical3DControl.ObjectsContainer.Objects(0).MemoryEfficientEnd(orientation, output.Stacks(0).PixelSpacing)

      _medical3DControl.ObjectsContainer.VolumeType = Medical3DVolumeType.MPR

      _medical3DControl.AddAction(MedicalViewerActionType.Rotate3DObject)
      _medical3DControl.SetAction(MedicalViewerActionType.Rotate3DObject, MedicalViewerMouseButtons.Left, MedicalViewerActionFlags.Active)

      Controls.Add(_medical3DControl)
   End Sub

   Private Sub MainForm1_FormClosing(ByVal sender As Object, ByVal e As FormClosingEventArgs)
      _medical3DControl.Dispose()
   End Sub


   Private Sub MainForm1_SizeChanged(ByVal sender As Object, ByVal e As EventArgs)
      If Not _medical3DControl Is Nothing Then
         _medical3DControl.Size = New Size(Me.ClientRectangle.Right, Me.ClientRectangle.Bottom)
      End If
   End Sub
End Class

public void Medical3DControlExample()
{
    Medical3DLoadDICOMSeriesExamples LoadObject = new Medical3DLoadDICOMSeriesExamples();
    MedicalViewerSeriesManager output = LoadObject.LoadJamesHead();

    MainForm1 form = new MainForm1(output);
    form.ShowDialog();
}

// MainForm1 will be the owner of the medical viewer control.
class MainForm1 : Form
{
    private Medical3DControl _medical3DControl;

    public MainForm1(MedicalViewerSeriesManager output)
    {
        RasterCodecs _codecs = new RasterCodecs();
        RasterImage _image;

        CodecsImageInfo codecsInformation;

        _medical3DControl = new Medical3DControl();
        this.SizeChanged += new EventHandler(MainForm1_SizeChanged);
        this.FormClosing += new FormClosingEventHandler(MainForm1_FormClosing);


        _medical3DControl.ObjectsContainer.Objects.Add(new Medical3DObject());

        int index;

        codecsInformation = _codecs.GetInformation((string)output.Stacks[0].Items[0].Data, true);


        int width = codecsInformation.Width;
        int height = codecsInformation.Height;
        int depth = 256;

        _medical3DControl.ObjectsContainer.Objects[0].MemoryEfficientInit(depth);

        for (index = 0; index < depth; index++)
        {

            _image = _codecs.Load((string)output.Stacks[0].Items[index].Data, 0, CodecsLoadByteOrder.BgrOrGrayOrRomm, 1, 1);
            _medical3DControl.ObjectsContainer.Objects[0].MemoryEfficientSetFrame(_image, index, output.Stacks[0].Items[index].ImagePosition, true);
        }

        string spearator = ("\\");
        string[] test = output.Stacks[0].Items[0].ImageOrientation.Split(spearator.ToCharArray());
        float[] orientation = new float[6];
        int i;
        for (i = 0; i < 6; i++)
        {
            orientation[i] = (float)Convert.ToDouble(test[i]);
        }

        _medical3DControl.ObjectsContainer.Objects[0].MemoryEfficientEnd(orientation, output.Stacks[0].PixelSpacing);

        _medical3DControl.ObjectsContainer.VolumeType = Medical3DVolumeType.MPR;

        _medical3DControl.AddAction(MedicalViewerActionType.Rotate3DObject);
        _medical3DControl.SetAction(MedicalViewerActionType.Rotate3DObject, MedicalViewerMouseButtons.Left, MedicalViewerActionFlags.Active);

        Controls.Add(_medical3DControl);
    }

    void MainForm1_FormClosing(object sender, FormClosingEventArgs e)
    {
        _medical3DControl.Dispose();
    }


    void MainForm1_SizeChanged(object sender, EventArgs e)
    {
        if (_medical3DControl != null)
            _medical3DControl.Size = new Size(this.ClientRectangle.Right, this.ClientRectangle.Bottom);
    }
}

Requirements

Target Platforms: Windows 7, Windows Vista SP1 or later, Windows XP SP3, Windows Server 2008 (Server Core not supported), Windows Server 2008 R2 (Server Core supported with SP1 or later), Windows Server 2003 SP2

Reference

Medical3DObject Members
Leadtools.Medical3D Namespace
