AnnButtonObject Class

Example





Members
Defines an annotation push button object.

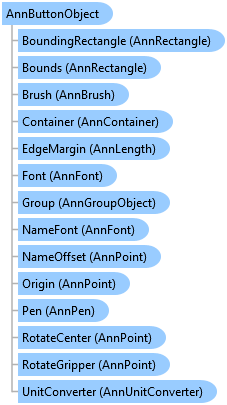

Object Model
AnnButtonObject ClassAnnRectangle StructureAnnRectangle StructureAnnBrush ClassAnnContainer ClassAnnLength StructureAnnFont ClassAnnGroupObject ClassAnnFont ClassAnnPoint StructureAnnPoint StructureAnnPen ClassAnnPoint StructureAnnPoint StructureAnnUnitConverter Class
Syntax
Remarks
The push button annotation object is an image of a standard Windows button that can be activated.

The AnnButtonObject class inherits the the AnnTextObject class, which implements the IAnnTextObject interface. For more information, refer to Using Text in Annotation Objects.

For more information about the button annotation object refer to AnnButtonObject. For more information about the automated annotation button object, refer to Annotation Objects - Automated Features.

Example

Private Sub AnnButtonObject_AnnButtonObject(ByVal container As AnnContainer, ByVal textString As String)
   Dim button As AnnButtonObject = New AnnButtonObject()
   button.Text = textString
   button.Font = New AnnFont("Arial", New AnnLength(10, AnnUnit.Point), FontStyle.Regular)
   button.Bounds = New AnnRectangle(100, 200, 400, 600, AnnUnit.Pixel)
   button.Pushed = False
   container.Objects.Add(button)
End Sub
private void AnnButtonObject_AnnButtonObject(AnnContainer container, string textString)
{
   AnnButtonObject button = new AnnButtonObject();
   button.Text = textString;
   button.Font = new AnnFont("Arial", new AnnLength(10, AnnUnit.Point), FontStyle.Regular);
   button.Bounds = new AnnRectangle(100, 200, 400, 600, AnnUnit.Pixel);
   button.Pushed = false;
   container.Objects.Add(button);
}
Requirements

Target Platforms: Windows 7, Windows Vista SP1 or later, Windows XP SP3, Windows Server 2008 (Server Core not supported), Windows Server 2008 R2 (Server Core supported with SP1 or later), Windows Server 2003 SP2

See Also

Reference

AnnButtonObject Members
Leadtools.Annotations Namespace
