LEADTOOLS Annotations (Leadtools.Annotations assembly)
LEAD Technologies, Inc

AnnObject Class

Example





Members
This is the base class for all annotation objects.

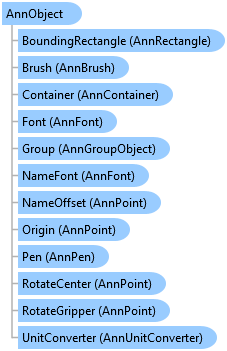

Object Model
AnnObject ClassAnnRectangle StructureAnnBrush ClassAnnContainer ClassAnnFont ClassAnnGroupObject ClassAnnFont ClassAnnPoint StructureAnnPoint StructureAnnPen ClassAnnPoint StructureAnnPoint StructureAnnUnitConverter Class
Syntax
'Declaration

<SerializableAttribute()>
Public MustInherit Class AnnObject
   Inherits AnnDrawable
   Implements System.ICloneableSystem.IDisposableSystem.Runtime.Serialization.ISerializable
'Usage

Dim instance As AnnObject
function Leadtools.Annotations.AnnObject()
Remarks

The AnnObject class provides all the basic functionality common to all LEADTOOLS annotation objects.

The AnnObject is an abstract class, you cannot instantiate objects of this class directly.

Example

Public Sub AnnObject_AnnObject(ByVal container As AnnContainer)
   For Each obj As AnnObject In container.Objects
      Dim s As String = String.Format("Type: {0}, Name: {1}, Hyperlink: {2}", obj.GetType().Name, obj.Name, obj.Hyperlink)
      MessageBox.Show(s)
   Next obj
End Sub
public void AnnObject_AnnObject(AnnContainer container)
{
   foreach(AnnObject obj in container.Objects)
   {
      string s = string.Format("Type: {0}, Name: {1}, Hyperlink: {2}", obj.GetType().Name, obj.Name, obj.Hyperlink);
      MessageBox.Show(s);
   }
}
Requirements

Target Platforms: Windows 7, Windows Vista SP1 or later, Windows XP SP3, Windows Server 2008 (Server Core not supported), Windows Server 2008 R2 (Server Core supported with SP1 or later), Windows Server 2003 SP2

See Also

Reference

AnnObject Members
Leadtools.Annotations Namespace
