AnnRubberStampObject Class

Example





Members
Defines an annotation stamp object.

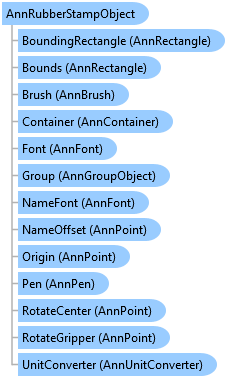

Object Model
AnnRubberStampObject ClassAnnRectangle StructureAnnRectangle StructureAnnBrush ClassAnnContainer ClassAnnFont ClassAnnGroupObject ClassAnnFont ClassAnnPoint StructureAnnPoint StructureAnnPen ClassAnnPoint StructureAnnPoint StructureAnnUnitConverter Class
Syntax
'Declaration

<SerializableAttribute()>
Public Class AnnRubberStampObject
   Inherits AnnRectangleObject
   Implements System.ICloneableSystem.IDisposableSystem.Runtime.Serialization.ISerializable
'Usage

Dim instance As AnnRubberStampObject
function Leadtools.Annotations.AnnRubberStampObject()
Remarks
The rubber stamp annotation object is an image that has a predefined metafile.

For information regarding default text strings used throughout the user interface in the automated mode, including information on how to override them, refer to Localization of LEADTOOLS for .NET Annotations Automation

For more information about the rubber stamp annotation object refer to AnnRubberStampObject. For more information about the automated rubber stamp annotation object, refer to Annotation Objects - Automated Features and Automated Annotations - Stamp Picture Tab.

Example

Private Sub AnnRubberStampObject_AnnRubberStampObject(ByVal container As AnnContainer)
   Dim rubberStamp As AnnRubberStampObject = New AnnRubberStampObject()
   rubberStamp.Bounds = New AnnRectangle(100, 200, 400, 600, AnnUnit.Pixel)
   rubberStamp.Type = AnnRubberStampType.Approved
   container.Objects.Add(rubberStamp)
End Sub
private void AnnRubberStampObject_AnnRubberStampObject(AnnContainer container)
{
   AnnRubberStampObject rubberStamp = new AnnRubberStampObject();
   rubberStamp.Bounds = new AnnRectangle(100, 200, 400, 600, AnnUnit.Pixel);
   rubberStamp.Type = AnnRubberStampType.Approved;
   container.Objects.Add(rubberStamp);
}
Requirements

Target Platforms: Windows 7, Windows Vista SP1 or later, Windows XP SP3, Windows Server 2008 (Server Core not supported), Windows Server 2008 R2 (Server Core supported with SP1 or later), Windows Server 2003 SP2

See Also

Reference

AnnRubberStampObject Members
Leadtools.Annotations Namespace
