AnnTextPointerObject Class

Example





Members
This class provides support for creating and managing text pointer objects.

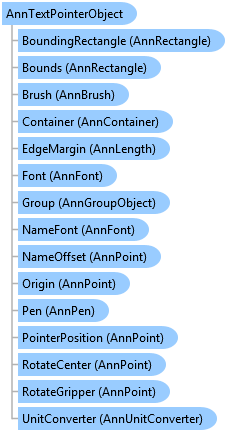

Object Model
AnnTextPointerObject ClassAnnRectangle StructureAnnRectangle StructureAnnBrush ClassAnnContainer ClassAnnLength StructureAnnFont ClassAnnGroupObject ClassAnnFont ClassAnnPoint StructureAnnPoint StructureAnnPen ClassAnnPoint StructureAnnPoint StructureAnnPoint StructureAnnUnitConverter Class
Syntax
Remarks

The text pointer annotation object extends the AnnTextObject class by providing an extra line that starts from one of the four corners of the bounding rectangle, around the text. The other endpoint of the line can be moved to point to anything on the underlying image. This extra endpoint may or may not be fixed, depending on the FixedPointer value. For more information, refer to Using Text in Annotation Object. For more information about the text pointer annotation object refer to AnnTextPointerObject. For more information about the automated text pointer annotation object, refer to Annotation Objects - Automated Features.

Example

Private Sub AnnTextPointerObject_AnnTextPointerObject(ByVal container As AnnContainer, ByVal textString As String)
   Dim textPointer As AnnTextPointerObject = New AnnTextPointerObject()
   textPointer.Text = textString
   textPointer.Pen = New AnnPen(Color.Green, New AnnLength(5))
   textPointer.Brush = New AnnSolidBrush(Color.White)
   textPointer.Font = New AnnFont("Arial", New AnnLength(10, AnnUnit.Point), FontStyle.Regular)
   textPointer.EdgeMargin = AnnLength.Empty
   textPointer.Alignment = StringAlignment.Center
   textPointer.LineAlignment = StringAlignment.Center
   textPointer.Bounds = New AnnRectangle(100, 200, 400, 600, AnnUnit.Pixel)
   textPointer.PointerPosition = New AnnPoint(800, 800, AnnUnit.Pixel)
   textPointer.FixedPointer = True
   container.Objects.Add(textPointer)
End Sub
private void AnnTextPointerObject_AnnTextPointerObject(AnnContainer container, string textString)
{
   AnnTextPointerObject textPointer = new AnnTextPointerObject();
   textPointer.Text = textString;
   textPointer.Pen = new AnnPen(Color.Green, new AnnLength(5));
   textPointer.Brush = new AnnSolidBrush(Color.White);
   textPointer.Font = new AnnFont("Arial", new AnnLength(10, AnnUnit.Point), FontStyle.Regular);
   textPointer.EdgeMargin = AnnLength.Empty;
   textPointer.Alignment = StringAlignment.Center;
   textPointer.LineAlignment = StringAlignment.Center;
   textPointer.Bounds = new AnnRectangle(100, 200, 400, 600, AnnUnit.Pixel);
   textPointer.PointerPosition = new AnnPoint(800, 800, AnnUnit.Pixel);
   textPointer.FixedPointer = true;
   container.Objects.Add(textPointer);
}
Requirements

Target Platforms: Windows 7, Windows Vista SP1 or later, Windows XP SP3, Windows Server 2008 (Server Core not supported), Windows Server 2008 R2 (Server Core supported with SP1 or later), Windows Server 2003 SP2

See Also

Reference

AnnTextPointerObject Members
Leadtools.Annotations Namespace
