AnnRectangleObject Class

Visual Basic
C#
WinRT C#
WinRT JavaScript
C++

[SerializableAttribute()]
public class AnnRectangleObject : AnnObject, System.ICloneable, System.IDisposable, System.Runtime.Serialization.ISerializable

'Declaration

<SerializableAttribute()>
Public Class AnnRectangleObject
   Inherits AnnObject
   Implements System.ICloneable, System.IDisposable, System.Runtime.Serialization.ISerializable

'Usage

Dim instance As AnnRectangleObject

public sealed class AnnRectangleObject : System.ICloneable, IClosable //In WinRT the IDisposable interface is replaced by IClosable, ~Remove~

function Leadtools.Annotations.AnnRectangleObject()

[SerializableAttribute()]
public ref class AnnRectangleObject : public AnnObject, System.ICloneable, System.IDisposable, System.Runtime.Serialization.ISerializable

The rectangle annotation object is a simple rectangle that has a bounding rectangle, a pen and a brush. For more information about the rectangle annotation object refer to AnnRectangleObject. For more information about the automated rectangle annotation object, refer to Annotation Objects - Automated Features.

Visual Basic
C#
WinRT C#
WinRT JavaScript
Silverlight C#
Silverlight VB

Private Sub AnnRectangleObject_AnnRectangleObject(ByVal container As AnnContainer)
   Dim rect As AnnRectangleObject = New AnnRectangleObject()
   rect.Pen = New AnnPen(Color.Red, New AnnLength(1, AnnUnit.Pixel))
   rect.Brush = New AnnSolidBrush(Color.White)
   rect.Bounds = New AnnRectangle(100, 200, 400, 600, AnnUnit.Pixel)
   container.Objects.Add(rect)
End Sub

private void AnnRectangleObject_AnnRectangleObject(AnnContainer container)
{
   AnnRectangleObject rect = new AnnRectangleObject();
   rect.Pen = new AnnPen(Color.Red, new AnnLength(1, AnnUnit.Pixel));
   rect.Brush = new AnnSolidBrush(Color.White);
   rect.Bounds = new AnnRectangle(100, 200, 400, 600, AnnUnit.Pixel);
   container.Objects.Add(rect);
}

Target Platforms: Windows 7, Windows Vista SP1 or later, Windows XP SP3, Windows Server 2008 (Server Core not supported), Windows Server 2008 R2 (Server Core supported with SP1 or later), Windows Server 2003 SP2

Reference

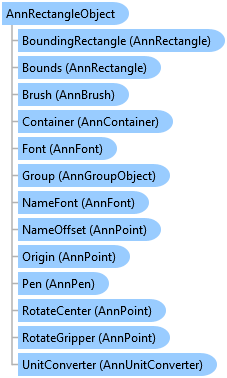

AnnRectangleObject Members
Leadtools.Annotations Namespace
