AnnFreehandHotspotObject Class

Visual Basic
C#
WinRT C#
WinRT JavaScript
C++

[SerializableAttribute()]
public class AnnFreehandHotspotObject : AnnPolygonObject, IAnnPictureObject, System.ICloneable, System.IDisposable, System.Runtime.Serialization.ISerializable

'Declaration

<SerializableAttribute()>
Public Class AnnFreehandHotspotObject
   Inherits AnnPolygonObject
   Implements IAnnPictureObject, System.ICloneable, System.IDisposable, System.Runtime.Serialization.ISerializable

'Usage

Dim instance As AnnFreehandHotspotObject

public sealed class AnnFreehandHotspotObject : IAnnPictureObject, System.ICloneable, IClosable //In WinRT the IDisposable interface is replaced by IClosable, ~Remove~

function Leadtools.Annotations.AnnFreehandHotspotObject()

[SerializableAttribute()]
public ref class AnnFreehandHotspotObject : public AnnPolygonObject, IAnnPictureObject, System.ICloneable, System.IDisposable, System.Runtime.Serialization.ISerializable

The freehand hot spot annotation object is designed to work as a scaled picture drawn inside a collection of points that create a sequence of joined lines. The freehand hot spot object will draw the picture if the owner container is in design mode. If the container is in run mode, the freehand hot spot object will not draw the picture.

For information on using pictures in a freehand hot spot annotation object, refer to Using Pictures in Annotation Objects

For more information about the freehand hotspot annotation object refer to AnnFreehandHotspotObject. For more information about the automated freehand hotspot annotation object, refer to Annotation Objects - Automated Features and Automated Annotations - Hotspot Picture Tab.

Visual Basic
C#
WinRT C#
WinRT JavaScript
Silverlight C#
Silverlight VB

Private Sub AnnFreehandHotspotObject_AnnFreehandHotspotObject(ByVal container As AnnContainer)
   Dim freehandHotspot As AnnFreehandHotspotObject = New AnnFreehandHotspotObject()
   freehandHotspot.Points.Add(New AnnPoint(100, 100, AnnUnit.Pixel))
   freehandHotspot.Points.Add(New AnnPoint(200, 100, AnnUnit.Pixel))
   freehandHotspot.Points.Add(New AnnPoint(200, 200, AnnUnit.Pixel))
   freehandHotspot.Points.Add(New AnnPoint(100, 300, AnnUnit.Pixel))
   container.Objects.Add(freehandHotspot)
End Sub

private void AnnFreehandHotspotObject_AnnFreehandHotspotObject(AnnContainer container)
{
   AnnFreehandHotspotObject freehandHotspot = new AnnFreehandHotspotObject();
   freehandHotspot.Points.Add(new AnnPoint(100, 100, AnnUnit.Pixel));
   freehandHotspot.Points.Add(new AnnPoint(200, 100, AnnUnit.Pixel));
   freehandHotspot.Points.Add(new AnnPoint(200, 200, AnnUnit.Pixel));
   freehandHotspot.Points.Add(new AnnPoint(100, 300, AnnUnit.Pixel));
   container.Objects.Add(freehandHotspot);
}

Target Platforms: Windows 7, Windows Vista SP1 or later, Windows XP SP3, Windows Server 2008 (Server Core not supported), Windows Server 2008 R2 (Server Core supported with SP1 or later), Windows Server 2003 SP2

Reference

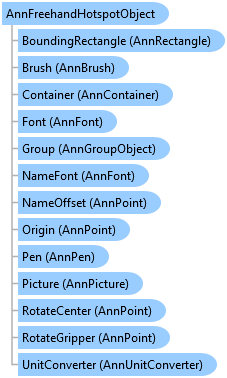

AnnFreehandHotspotObject Members
Leadtools.Annotations Namespace
