DeleteElement Method

public DicomElement DeleteElement(
   DicomElement element
)

'Declaration

Public Function DeleteElement( _
   ByVal element As DicomElement _
) As DicomElement

'Usage

Dim instance As DicomDataSet
Dim element As DicomElement
Dim value As DicomElement

value = instance.DeleteElement(element)

public DicomElement DeleteElement(
   DicomElement element
)

ObjectiveC Syntax

 function Leadtools.Dicom.DicomDataSet.DeleteElement(
   element
)

public:
DicomElement^ DeleteElement(
   DicomElement^ element
)

Parameters

element

The item to be deleted.

Return Value

Since the Data Set is stored internally as a tree, the deletion must be carried out as a tree.

When deleting an item from the tree, if the item being deleted has a sibling (same level, same parent), following it, the object returned by the method points to this sibling. If the item being deleted does not have a sibling following it, but has a sibling preceding it, the returned object points to the preceding sibling. If the item being deleted is an only child, the returned object points to the parent. If there is no parent, the method returns a null reference (Nothing in Visual Basic). Below are illustrations of these situations.

For the sake of these illustrations, the order of siblings is top to bottom. A preceding sibling is drawn above the sibling it precedes, a following sibling is drawn below the sibling it follows.

Please note that the numbering of the items of interest is arbitrary, and does not imply order.

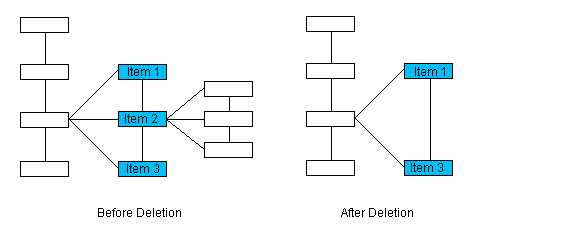

In this illustration, item 2 will be deleted. Since it has a following sibling, the returned object will point to item 3.

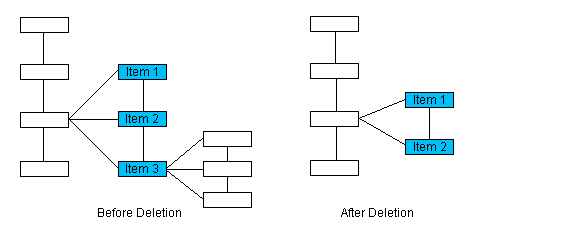

In this illustration, item 3 will be deleted. Since it does not have a following sibling, but does have a preceding sibling, the returned object will point to item 2.

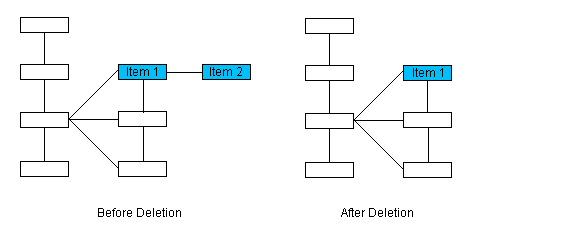

In this illustration, item 2 will be deleted. Since it is an only child, the returned object will point to the parent, item 1.

In this illustration, item 1 will be deleted. Since it has no siblings and no parent, this method will return a null reference (Nothing in Visual Basic).

Target Platforms: Windows 7, Windows Vista SP1 or later, Windows XP SP3, Windows Server 2008 (Server Core not supported), Windows Server 2008 R2 (Server Core supported with SP1 or later), Windows Server 2003 SP2
