LEADTOOLS WCF Image Processing (Leadtools.Services.ImageProcessing.DataContracts assembly)
LEAD Technologies, Inc

LineRemoveCommandFlags Enumeration






Determines the behavior of the line removal process.

Syntax
[DataContractAttribute(Namespace="http://Leadtools.Services.ImageProcessing.DataContracts/2009/01", Name="LineRemoveCommandFlags")]
[FlagsAttribute()]
public enum LineRemoveCommandFlags : System.Enum, System.IComparableSystem.IConvertibleSystem.IFormattable
'Declaration

<DataContractAttribute(Namespace="http://Leadtools.Services.ImageProcessing.DataContracts/2009/01", Name="LineRemoveCommandFlags")>
<FlagsAttribute()>
Public Enum LineRemoveCommandFlags
   Inherits System.Enum
   Implements System.IComparableSystem.IConvertibleSystem.IFormattable
'Usage

Dim instance As LineRemoveCommandFlags
[DataContractAttribute(Namespace="http://Leadtools.Services.ImageProcessing.DataContracts/2009/01", Name="LineRemoveCommandFlags")]
[FlagsAttribute()]
public enum LineRemoveCommandFlags : System.IComparableSystem.IConvertibleSystem.IFormattable
Leadtools.Services.ImageProcessing.DataContracts.LineRemoveCommandFlags = function() { };
Leadtools.Services.ImageProcessing.DataContracts.LineRemoveCommandFlags.prototype = {
LeadtoolsMemberMarker(replace me) };
[DataContractAttribute(Namespace="http://Leadtools.Services.ImageProcessing.DataContracts/2009/01", Name="LineRemoveCommandFlags")]
[FlagsAttribute()]
public enum class LineRemoveCommandFlags : public System.Enum, System.IComparableSystem.IConvertibleSystem.IFormattable
Members
MemberDescription
GetRegionWhen IDocumentProcessingService.BorderRemove returns the GetRegion value, the DocumentResponse.Region property will be updated with a Windows region that contains all the removed bumps or nicks. A region that contains all the removed bumps or nicks.
ImageUnchangedThe affected image (Run method image) is unchanged.
NoneNo flags.
RemoveEntireRemove the entire line, even if the line passes through a character or a wall.

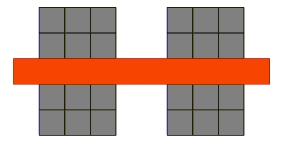

Consider the line below.



Setting MaximumWallPercent as 80 and passing RemoveEntire flag will remove the red pixels as shown below.


UseDpiThe unit of measure for all properties of the LineRemoveRequest is thousandths of an inch. Use the image's DPI to convert to pixels. This allows the processing of many images with different DPI. If this flag is not set, the unit of measure for all properties of the LineRemoveRequest is pixels.
UseGapConsider "gaps" in lines when performing line removal. If this flag is set, LineRemoveRequest.GapLength value property is used. If this flag is not passed, the LineRemoveRequest.GapLength value is ignored.
UseVarianceConsider line variance when performing line removal. If this flag is passed, the variance value LineRemoveRequest.Variance is used. If this flag is not passed, the variance value is ignored.
Remarks
You can use a bitwise OR (|) to specify one or more flags.
Inheritance Hierarchy

System.Object
   System.ValueType
      System.Enum
         Leadtools.Services.ImageProcessing.DataContracts.LineRemoveCommandFlags

Requirements

Target Platforms: Windows 7, Windows Vista SP1 or later, Windows XP SP3, Windows Server 2008 (Server Core not supported), Windows Server 2008 R2 (Server Core supported with SP1 or later), Windows Server 2003 SP2

See Also

Reference

Leadtools.Services.ImageProcessing.DataContracts Namespace
