MedicalViewerFusion Class

'Declaration

Public Class MedicalViewerFusion

Private Class MedicalViewerFusionForm : Inherits Form
         Private _medicalViewer As MedicalViewer
         Private Sub MedicalViewer_SizeChanged(ByVal sender As Object, ByVal e As EventArgs)
             _medicalViewer.Size = New Size(Me.ClientRectangle.Right, Me.ClientRectangle.Bottom)
         End Sub

         Public Sub New()
             DicomEngine.Startup()
             Dim _codecs As RasterCodecs = New RasterCodecs()

             AddHandler SizeChanged, AddressOf MedicalViewer_SizeChanged

             ' Create the medical viewer and adjust the size and the location.
             _medicalViewer = New MedicalViewer(1, 2)
             _medicalViewer.Location = New Point(0, 0)
             _medicalViewer.Size = New Size(Me.ClientRectangle.Right, Me.ClientRectangle.Bottom)

             ' Load an image and then add it to the control.

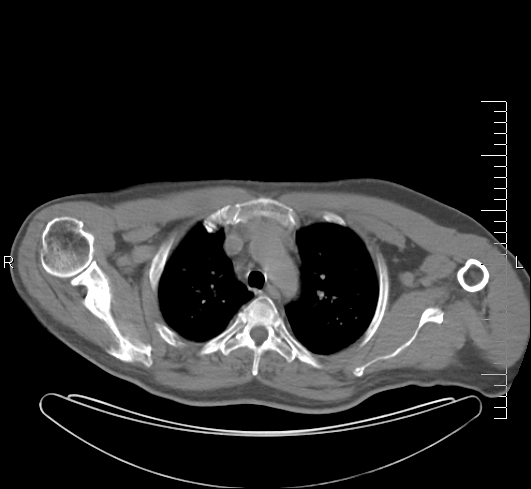

             Dim _image As RasterImage = _codecs.Load(Path.Combine(LEAD_VARS.ImagesDir, "xa.dcm"))
             Dim cell As MedicalViewerMultiCell = New MedicalViewerMultiCell(_image, True, 1, 1)

             cell.FitImageToCell = False

             ' add some action that will be used to change the properties of the images inside the control.
             cell.AddAction(MedicalViewerActionType.Scale)
             cell.AddAction(MedicalViewerActionType.Offset)
             cell.AddAction(MedicalViewerActionType.WindowLevel)
             cell.AddAction(MedicalViewerActionType.Stack)

             ' assign the added actions to a mouse button, meaning that when the user click and drag the mouse button, the associated action will be activated.
             cell.SetAction(MedicalViewerActionType.Scale, MedicalViewerMouseButtons.Middle, MedicalViewerActionFlags.Active)
             cell.SetAction(MedicalViewerActionType.Offset, MedicalViewerMouseButtons.Right, MedicalViewerActionFlags.Active)
             cell.SetAction(MedicalViewerActionType.WindowLevel, MedicalViewerMouseButtons.Left, MedicalViewerActionFlags.Active)
             cell.SetAction(MedicalViewerActionType.Stack, MedicalViewerMouseButtons.Wheel, MedicalViewerActionFlags.Active)

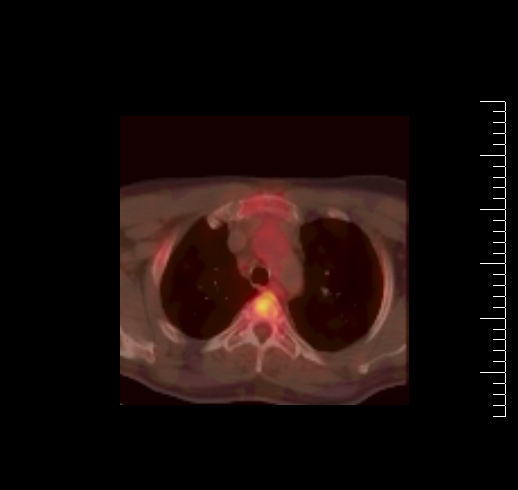

             ' Creates a new fusion object, this object will hold the image (image3.dcm) that will be fused with the original image (xa.dcm).
             Dim fusion As MedicalViewerFusion = New MedicalViewerFusion()

             ' the fused image.

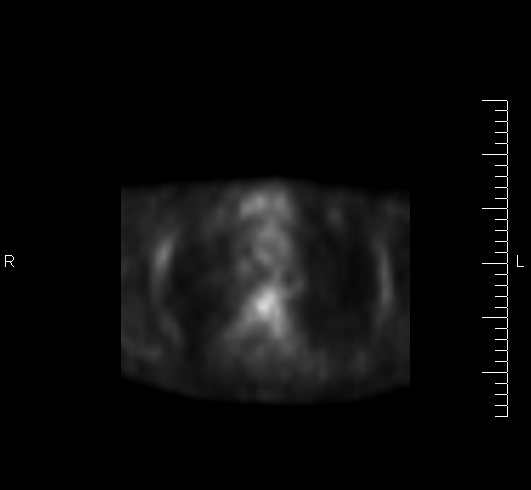

             fusion.FusedImage = _codecs.Load(Path.Combine(LEAD_VARS.ImagesDir, "image3.dcm"))

             ' the fusion scale.
             fusion.FusionScale = 0.5F

             ' the color palette that will be used in the fusion process.
             fusion.ColorPalette = MedicalViewerPaletteType.Cool

             ' start the fusion.
             cell.SubCells(0).Fusion.Add(fusion)


             _medicalViewer.Cells.Add(cell)
             ' adjust some properties to the cell and add some tags.
             _medicalViewer.Cells(0).SetTag(2, MedicalViewerTagAlignment.TopLeft, MedicalViewerTagType.UserData, "EX. ID 230-36-5448")
             _medicalViewer.Cells(0).SetTag(4, MedicalViewerTagAlignment.TopLeft, MedicalViewerTagType.Frame)
             _medicalViewer.Cells(0).SetTag(6, MedicalViewerTagAlignment.TopLeft, MedicalViewerTagType.Scale)
             _medicalViewer.Cells(0).SetTag(2, MedicalViewerTagAlignment.BottomLeft, MedicalViewerTagType.WindowLevelData)
             _medicalViewer.Cells(0).SetTag(1, MedicalViewerTagAlignment.BottomLeft, MedicalViewerTagType.FieldOfView)

             cell.ScaleType = MedicalViewerScaleType.Dynamic

             Controls.Add(_medicalViewer)
             _medicalViewer.Dock = DockStyle.Fill
             DicomEngine.Shutdown()
         End Sub

         Private Sub MedicalViewerLocalizer_FormClosing(ByVal sender As Object, ByVal e As FormClosingEventArgs)
         End Sub


         Public ReadOnly Property Viewer() As MedicalViewer
             Get
                 Return _medicalViewer
             End Get
         End Property
     End Class

     Private Function GetMedicalViewerFusionForm() As MedicalViewerFusionForm
         Return New MedicalViewerFusionForm()
     End Function

     ' This examples fuses the xa.dcm image with the image3.dcm image, and uses the preset palette (Cool) to do the fusion process.

     Public Sub MedicalViewerFusionExample()
         Dim myForm As MedicalViewerFusionForm = GetMedicalViewerFusionForm()
         Dim medicalViewer As MedicalViewer = myForm.Viewer

         myForm.ShowDialog()
     End Sub

Public NotInheritable Class LEAD_VARS
   Public Const ImagesDir As String = "C:\Users\Public\Documents\LEADTOOLS Images"
End Class
