OceanCommand Class

Visual Basic
C#
WinRT C#
WinRT JavaScript
C++

public class OceanCommand : Leadtools.ImageProcessing.RasterCommand, Leadtools.ImageProcessing.IRasterCommand

'Declaration

Public Class OceanCommand
   Inherits Leadtools.ImageProcessing.RasterCommand
   Implements Leadtools.ImageProcessing.IRasterCommand

'Usage

Dim instance As OceanCommand

public sealed class OceanCommand : Leadtools.ImageProcessing.IRasterCommand

function Leadtools.ImageProcessing.SpecialEffects.OceanCommand()

public ref class OceanCommand : public Leadtools.ImageProcessing.RasterCommand, Leadtools.ImageProcessing.IRasterCommand

If the image has a region, the effect will be applied on the region only.

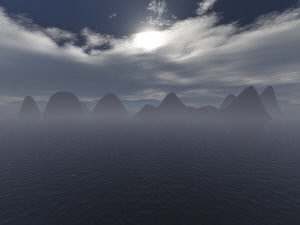

For an example, see the following figure:

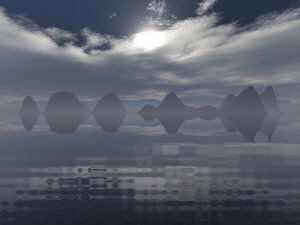

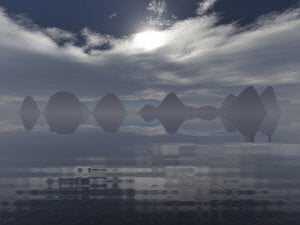

The following figure shows the same image, after the effect has been applied:

To obtain this effect, the following settings were used with the method:
1. Amplitude = 15
2. Frequency = 20
3. LowerTransparency = true
4. This command does not support 32-bit grayscale images.
This command supports 12- and 16-bit grayscale and 48- and 64-bit color images. Support for 12- and 16-bit grayscale and 48- and 64-bit color images is available only in the Document/Medical toolkits.
This command does not support signed data images.

For more information, refer to Correcting Colors.

Visual Basic
C#
WinRT C#
WinRT JavaScript
Silverlight C#
Silverlight VB

Public Sub OceanCommandExample()
   Dim codecs As New RasterCodecs()
   codecs.ThrowExceptionsOnInvalidImages = True

   Dim leadImage As RasterImage = codecs.Load(Path.Combine(LEAD_VARS.ImagesDir, "Master.jpg"))

   ' Prepare the command
   Dim command As OceanCommand = New OceanCommand
   command.Amplitude = 20
   command.Frequency = 6
   command.LowerTransparency = True
   command.Run(leadImage)
   codecs.Save(leadImage, Path.Combine(LEAD_VARS.ImagesDir, "Result.jpg"), RasterImageFormat.Jpeg, 24)

End Sub

Public NotInheritable Class LEAD_VARS
   Public Const ImagesDir As String = "C:\Users\Public\Documents\LEADTOOLS Images"
End Class

public void OceanCommandExample()
   {
      // Load an image
      RasterCodecs codecs = new RasterCodecs();
      codecs.ThrowExceptionsOnInvalidImages = true;

      RasterImage image = codecs.Load(Path.Combine(LEAD_VARS.ImagesDir, "Master.jpg"));

      // Prepare the command
      OceanCommand command = new OceanCommand();
      command.Amplitude = 20;
      command.Frequency = 6;
      command.LowerTransparency = true;
      command.Run(image);
      codecs.Save(image, Path.Combine(LEAD_VARS.ImagesDir, "Result.jpg"), RasterImageFormat.Jpeg, 24);

   }

static class LEAD_VARS
{
   public const string ImagesDir = @"C:\Users\Public\Documents\LEADTOOLS Images";
}

[TestMethod]
public async Task OceanCommandExample()
{
   // Load an image
   RasterCodecs codecs = new RasterCodecs();
   codecs.ThrowExceptionsOnInvalidImages = true;
   string srcFileName = @"Assets\Image1.cmp";
   StorageFile loadFile = await Tools.AppInstallFolder.GetFileAsync(srcFileName);
   RasterImage image = await codecs.LoadAsync(LeadStreamFactory.Create(loadFile));

   // Prepare the command
   OceanCommand command = new OceanCommand();
   command.Amplitude = 20;
   command.Frequency = 6;
   command.LowerTransparency = true;
   command.Run(image);

   string destFileName = @"result.bmp";
   StorageFile saveFile = await Tools.AppLocalFolder.CreateFileAsync(destFileName);
   await codecs.SaveAsync(image, LeadStreamFactory.Create(saveFile), RasterImageFormat.Bmp, 24);
}

Target Platforms: Windows 7, Windows Vista SP1 or later, Windows XP SP3, Windows Server 2008 (Server Core not supported), Windows Server 2008 R2 (Server Core supported with SP1 or later), Windows Server 2003 SP2

Reference

OceanCommand Members
Leadtools.ImageProcessing.SpecialEffects Namespace
