RasterOpenDialog Class

Example





Members
Displays the Open dialog box, and gets the options for Leadtools.Codecs.RasterCodecs.Load(System.Uri,System.Int32,Leadtools.Codecs.CodecsLoadByteOrder,System.Int32,System.Int32).
Object Model
RasterOpenDialog ClassRasterOpenDialogLoadFormat Structure
Syntax
public class RasterOpenDialog : System.IDisposable
'Declaration

Public Class RasterOpenDialog
   Implements System.IDisposable
'Usage

Dim instance As RasterOpenDialog
function Leadtools.WinForms.CommonDialogs.File.RasterOpenDialog()
public ref class RasterOpenDialog : public System.IDisposable
Remarks

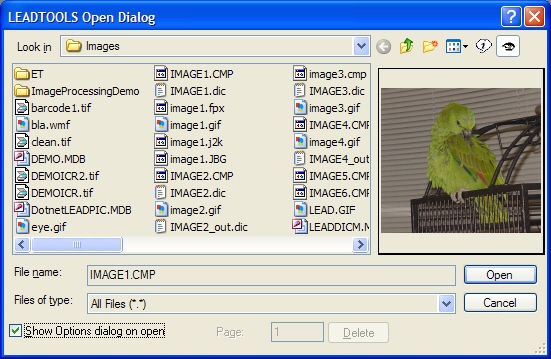

The Open dialog can be seen below:

Example

Public Sub openDlg_Help(ByVal sender As Object, ByVal e As RasterDialogHelpEventArgs) Handles openDlg.Help
      Select Case e.Dialog
         Case RasterDialogHelpName.Open
            MessageBox.Show("Open dialog Help")
            Exit Select
         Case RasterDialogHelpName.LoadOptions
            MessageBox.Show("Load Options dialog Help")
            Exit Select
      End Select
   End Sub

   Public Sub openDlg_LoadProgress(ByVal sender As Object, ByVal e As RasterDialogLoadProgressEventArgs) Handles openDlg.LoadProgress
      Dim displayText As String

      displayText = "(" & e.FilePercent.ToString() & "%) of" & e.LoadRasterFileData.Name & "file is loaded"
      MessageBox.Show(displayText)

      displayText = "(" & e.TotalPercent.ToString() & "%) of all file(s) loading process is completed"
      MessageBox.Show(displayText)
   End Sub

   WithEvents openDlg As RasterOpenDialog


   Public Sub RasterOpenDialogExample()
      Dim rasterCodecs As RasterCodecs = New RasterCodecs()

      openDlg = New RasterOpenDialog(rasterCodecs)

      openDlg.Filter = New RasterOpenDialogLoadFormat() {New RasterOpenDialogLoadFormat("All Files", "*.*"), New RasterOpenDialogLoadFormat("LEAD", "*.cmp")}

      openDlg.CheckFileExists = True
      openDlg.CheckPathExists = True
      openDlg.DefaultExt = "cmp"
      openDlg.DereferenceLinks = True
      openDlg.EnableSizing = True
      openDlg.FileName = "Image.cmp"
      openDlg.FilterIndex = 2
      openDlg.GenerateThumbnail = False
      openDlg.InitialDirectory = LEAD_VARS.ImagesDir
      openDlg.InitialView = FileDialogInitialView.List
      openDlg.LoadCompressed = True
      openDlg.LoadFileImage = False
      openDlg.LoadOptions = False
      openDlg.LoadRotated = False
      openDlg.Multiselect = True
      openDlg.PreviewWindowVisible = True
      openDlg.ShowDeletePage = True
      openDlg.ShowFileInformation = True
      openDlg.ShowGeneralOptions = True
      openDlg.ShowHelp = True
      openDlg.ShowLoadCompressed = True
      openDlg.ShowLoadOptions = True
      openDlg.ShowLoadRotated = True
      openDlg.ShowMultipage = True
      openDlg.ShowPdfOptions = True
      openDlg.ShowXpsOptions = True
      openDlg.ShowXlsOptions = True
      openDlg.ShowVffOptions = True
      openDlg.ShowAnzOptions = True
      openDlg.ShowVectorOptions = True
      openDlg.ShowPreview = True
      openDlg.ShowProgressive = True
      openDlg.ShowRasterOptions = True
      openDlg.ShowTotalPages = True
      openDlg.Title = "Open Dialog"
      openDlg.UseFileStamptoPreview = True

      If DialogResult.OK = openDlg.ShowDialog(Nothing) Then
         Dim i As Integer = 0
         Do While i < openDlg.OpenedFileData.Count
            Dim fileDataItem As RasterDialogFileData = CType(openDlg.OpenedFileData(i), RasterDialogFileData)

            ' this is not an image file.
            If fileDataItem.Options Is Nothing Then
               GoTo Continue1
            End If

            rasterCodecs.Options.RasterizeDocument.Load.PageWidth = fileDataItem.Options.RasterizeDocumentOptions.PageWidth
            rasterCodecs.Options.RasterizeDocument.Load.PageHeight = fileDataItem.Options.RasterizeDocumentOptions.PageHeight
            rasterCodecs.Options.RasterizeDocument.Load.LeftMargin = fileDataItem.Options.RasterizeDocumentOptions.LeftMargin
            rasterCodecs.Options.RasterizeDocument.Load.TopMargin = fileDataItem.Options.RasterizeDocumentOptions.TopMargin
            rasterCodecs.Options.RasterizeDocument.Load.RightMargin = fileDataItem.Options.RasterizeDocumentOptions.RightMargin
            rasterCodecs.Options.RasterizeDocument.Load.BottomMargin = fileDataItem.Options.RasterizeDocumentOptions.BottomMargin
            rasterCodecs.Options.RasterizeDocument.Load.Unit = fileDataItem.Options.RasterizeDocumentOptions.Unit
            rasterCodecs.Options.RasterizeDocument.Load.XResolution = fileDataItem.Options.RasterizeDocumentOptions.XResolution
            rasterCodecs.Options.RasterizeDocument.Load.YResolution = fileDataItem.Options.RasterizeDocumentOptions.YResolution
            rasterCodecs.Options.RasterizeDocument.Load.SizeMode = fileDataItem.Options.RasterizeDocumentOptions.SizeMode

            Select Case fileDataItem.Options.FileType
               Case RasterDialogFileOptionsType.Meta
                  If Not Nothing Is fileDataItem.Options.MetaOptions Then
                     rasterCodecs.Options.Wmf.Load.XResolution = fileDataItem.Options.MetaOptions.XResolution
                     rasterCodecs.Options.Wmf.Load.YResolution = fileDataItem.Options.MetaOptions.XResolution
                  End If
                  Exit Select

               Case RasterDialogFileOptionsType.Pdf
                  If (Not Nothing Is fileDataItem.Options.PdfOptions) AndAlso rasterCodecs.Options.Pdf.IsEngineInstalled Then
                     rasterCodecs.Options.Pdf.Load.DisplayDepth = fileDataItem.Options.PdfOptions.DisplayDepth
                     rasterCodecs.Options.Pdf.Load.GraphicsAlpha = fileDataItem.Options.PdfOptions.GraphicsAlpha

                     If Not fileDataItem.Options.PdfOptions.Password Is Nothing Then
                        rasterCodecs.Options.Pdf.Load.Password = fileDataItem.Options.PdfOptions.Password
                     End If

                     rasterCodecs.Options.Pdf.Load.TextAlpha = fileDataItem.Options.PdfOptions.TextAlpha
                     rasterCodecs.Options.Pdf.Load.UseLibFonts = fileDataItem.Options.PdfOptions.UseLibFonts
                  End If
                  Exit Select

               Case RasterDialogFileOptionsType.Misc
                  If Nothing Is fileDataItem.Options.MiscOptions Then
                     GoTo Continue1
                  End If

                  Select Case fileDataItem.FileInfo.Format
                     Case RasterImageFormat.Jbig
                        rasterCodecs.Options.Jbig.Load.Resolution = New LeadSize(fileDataItem.Options.MiscOptions.XResolution, _
                                                                                 fileDataItem.Options.MiscOptions.YResolution)
                        Exit Select

                     Case RasterImageFormat.Cmw
                        rasterCodecs.Options.Jpeg2000.Load.CmwResolution = New LeadSize(fileDataItem.Options.MiscOptions.XResolution, _
                                                                                        fileDataItem.Options.MiscOptions.YResolution)
                        Exit Select

                     Case RasterImageFormat.Jp2
                        rasterCodecs.Options.Jpeg2000.Load.Jp2Resolution = New LeadSize(fileDataItem.Options.MiscOptions.XResolution, _
                                                                                        fileDataItem.Options.MiscOptions.YResolution)
                        Exit Select

                     Case RasterImageFormat.J2k
                        rasterCodecs.Options.Jpeg2000.Load.J2kResolution = New LeadSize(fileDataItem.Options.MiscOptions.XResolution, _
                                                                                        fileDataItem.Options.MiscOptions.YResolution)
                        Exit Select
                  End Select
                  Exit Select
               Case RasterDialogFileOptionsType.Xls
                  rasterCodecs.Options.Xls.Load.MultiPageSheet = fileDataItem.Options.XlsOptions.MultiPageSheet
                  Exit Select
               Case RasterDialogFileOptionsType.Vff
                  rasterCodecs.Options.Vff.Load.View = fileDataItem.Options.VffOptions.View
                  Exit Select
               Case RasterDialogFileOptionsType.Anz
                  rasterCodecs.Options.Anz.Load.View = fileDataItem.Options.AnzOptions.View
                  Exit Select
               Case RasterDialogFileOptionsType.Vector
                  rasterCodecs.Options.Vector.Load.BackgroundColor = fileDataItem.Options.VectorOptions.Options.BackgroundColor
                  rasterCodecs.Options.Vector.Load.BitsPerPixel = fileDataItem.Options.VectorOptions.Options.BitsPerPixel
                  rasterCodecs.Options.Vector.Load.ForceBackgroundColor = fileDataItem.Options.VectorOptions.Options.ForceBackgroundColor
                  rasterCodecs.Options.Vector.Load.ViewHeight = fileDataItem.Options.VectorOptions.Options.ViewHeight
                  rasterCodecs.Options.Vector.Load.ViewMode = fileDataItem.Options.VectorOptions.Options.ViewMode
                  rasterCodecs.Options.Vector.Load.ViewWidth = fileDataItem.Options.VectorOptions.Options.ViewWidth
                  Exit Select
            End Select

            rasterCodecs.Options.Load.Passes = fileDataItem.Passes
            rasterCodecs.Options.Load.Rotated = fileDataItem.LoadRotated
            rasterCodecs.Options.Load.Compressed = fileDataItem.LoadCompressed

            Dim loadedImage As RasterImage = rasterCodecs.Load(fileDataItem.Name, 0, CodecsLoadByteOrder.BgrOrGray, fileDataItem.PageNumber, fileDataItem.PageNumber)

            ' COPY THE 'loadedImage' IMAGE.

            loadedImage.Dispose()
Continue1:
            i += 1
         Loop
      End If
   End Sub

   Public NotInheritable Class LEAD_VARS
      Public Const ImagesDir As String = "C:\Users\Public\Documents\LEADTOOLS Images"
   End Class
public void openDlg_Help(object sender, RasterDialogHelpEventArgs e)
   {
      switch(e.Dialog)
      {
         case RasterDialogHelpName.Open:
            {
               MessageBox.Show("Open dialog Help");
               break;
            }
         case RasterDialogHelpName.LoadOptions:
            {
               MessageBox.Show("Load Options dialog Help");
               break;
            }
      }
   }

   public void openDlg_LoadProgress(object sender, RasterDialogLoadProgressEventArgs e)
   {
      string displayText;

      displayText = "(" + e.FilePercent.ToString() + "%) of" + e.LoadRasterFileData.Name + "file is loaded";
      MessageBox.Show(displayText);

      displayText = "(" + e.TotalPercent.ToString() + "%) of all file(s) loading process is completed";
      MessageBox.Show(displayText);
   }


   public void RasterOpenDialogExample()
   {
      RasterCodecs rasterCodecs = new RasterCodecs();

      RasterOpenDialog openDlg = new RasterOpenDialog(rasterCodecs);

      openDlg.Filter = new RasterOpenDialogLoadFormat[]
      {
         new RasterOpenDialogLoadFormat ( "All Files", "*.*" ),
         new RasterOpenDialogLoadFormat ( "LEAD", "*.cmp" )
      };

      openDlg.CheckFileExists = true;
      openDlg.CheckPathExists = true;
      openDlg.DefaultExt = "cmp";
      openDlg.DereferenceLinks = true;
      openDlg.EnableSizing = true;
      openDlg.FileName = "Image1.cmp";
      openDlg.FilterIndex = 2;
      openDlg.GenerateThumbnail = false;
      openDlg.InitialDirectory = LEAD_VARS.ImagesDir;
      openDlg.InitialView = FileDialogInitialView.List;
      openDlg.LoadCompressed = true;
      openDlg.LoadFileImage = false;
      openDlg.LoadOptions = false;
      openDlg.LoadRotated = false;
      openDlg.Multiselect = true;
      openDlg.PreviewWindowVisible = true;
      openDlg.ShowDeletePage = true;
      openDlg.ShowFileInformation = true;
      openDlg.ShowGeneralOptions = true;
      openDlg.ShowHelp = true;
      openDlg.ShowLoadCompressed = true;
      openDlg.ShowLoadOptions = true;
      openDlg.ShowLoadRotated = true;
      openDlg.ShowMultipage = true;
      openDlg.ShowPdfOptions = true;
      openDlg.ShowXpsOptions = true;
      openDlg.ShowXlsOptions = true;
      openDlg.ShowVffOptions = true;
      openDlg.ShowAnzOptions = true;
      openDlg.ShowVectorOptions = true;
      openDlg.ShowPreview = true;
      openDlg.ShowProgressive = true;
      openDlg.ShowRasterOptions = true;
      openDlg.ShowTotalPages = true;
      openDlg.Title = "Open Dialog";
      openDlg.UseFileStamptoPreview = true;
      openDlg.Help += new EventHandler<RasterDialogHelpEventArgs>(openDlg_Help);

      // if you set "openDlg.LoadFileImage = true" this event will be fired
      openDlg.LoadProgress += new EventHandler<RasterDialogLoadProgressEventArgs>(openDlg_LoadProgress);

      if(DialogResult.OK == openDlg.ShowDialog(null))
      {
         for(int i = 0; i < openDlg.OpenedFileData.Count; i++)
         {
            RasterDialogFileData fileDataItem = openDlg.OpenedFileData[i];

            // this is not an image file.
            if(fileDataItem.Options == null)
            {
               continue;
            }

            rasterCodecs.Options.RasterizeDocument.Load.PageWidth = fileDataItem.Options.RasterizeDocumentOptions.PageWidth;
            rasterCodecs.Options.RasterizeDocument.Load.PageHeight = fileDataItem.Options.RasterizeDocumentOptions.PageHeight;
            rasterCodecs.Options.RasterizeDocument.Load.LeftMargin = fileDataItem.Options.RasterizeDocumentOptions.LeftMargin;
            rasterCodecs.Options.RasterizeDocument.Load.TopMargin = fileDataItem.Options.RasterizeDocumentOptions.TopMargin;
            rasterCodecs.Options.RasterizeDocument.Load.RightMargin = fileDataItem.Options.RasterizeDocumentOptions.RightMargin;
            rasterCodecs.Options.RasterizeDocument.Load.BottomMargin = fileDataItem.Options.RasterizeDocumentOptions.BottomMargin;
            rasterCodecs.Options.RasterizeDocument.Load.Unit = fileDataItem.Options.RasterizeDocumentOptions.Unit;
            rasterCodecs.Options.RasterizeDocument.Load.XResolution = fileDataItem.Options.RasterizeDocumentOptions.XResolution;
            rasterCodecs.Options.RasterizeDocument.Load.YResolution = fileDataItem.Options.RasterizeDocumentOptions.YResolution;
            rasterCodecs.Options.RasterizeDocument.Load.SizeMode = fileDataItem.Options.RasterizeDocumentOptions.SizeMode;

            switch(fileDataItem.Options.FileType)
            {
               case RasterDialogFileOptionsType.Meta:
                  {
                     if(null != fileDataItem.Options.MetaOptions)
                     {
                        rasterCodecs.Options.Wmf.Load.XResolution = fileDataItem.Options.MetaOptions.XResolution;
                        rasterCodecs.Options.Wmf.Load.YResolution = fileDataItem.Options.MetaOptions.XResolution;
                     }
                     break;
                  }

               case RasterDialogFileOptionsType.Pdf:
                  {
                     if((null != fileDataItem.Options.PdfOptions) &&
                           rasterCodecs.Options.Pdf.IsEngineInstalled)
                     {
                        rasterCodecs.Options.Pdf.Load.DisplayDepth = fileDataItem.Options.PdfOptions.DisplayDepth;
                        rasterCodecs.Options.Pdf.Load.GraphicsAlpha = fileDataItem.Options.PdfOptions.GraphicsAlpha;

                        if(fileDataItem.Options.PdfOptions.Password != null)
                        {
                           rasterCodecs.Options.Pdf.Load.Password = fileDataItem.Options.PdfOptions.Password;
                        }

                        rasterCodecs.Options.Pdf.Load.TextAlpha = fileDataItem.Options.PdfOptions.TextAlpha;
                        rasterCodecs.Options.Pdf.Load.UseLibFonts = fileDataItem.Options.PdfOptions.UseLibFonts;
                     }
                     break;
                  }

               case RasterDialogFileOptionsType.Misc:
                  {
                     if(null == fileDataItem.Options.MiscOptions)
                     {
                        continue;
                     }

                     switch(fileDataItem.FileInfo.Format)
                     {
                        case RasterImageFormat.Jbig:
                           {
                              rasterCodecs.Options.Jbig.Load.Resolution = new LeadSize(fileDataItem.Options.MiscOptions.XResolution,
                                 fileDataItem.Options.MiscOptions.YResolution);
                              break;
                           }

                        case RasterImageFormat.Cmw:
                           {
                              rasterCodecs.Options.Jpeg2000.Load.CmwResolution = new LeadSize(fileDataItem.Options.MiscOptions.XResolution,
                                 fileDataItem.Options.MiscOptions.YResolution);
                              break;
                           }

                        case RasterImageFormat.Jp2:
                           {
                              rasterCodecs.Options.Jpeg2000.Load.Jp2Resolution = new LeadSize(fileDataItem.Options.MiscOptions.XResolution,
                                 fileDataItem.Options.MiscOptions.YResolution);
                              break;
                           }

                        case RasterImageFormat.J2k:
                           {
                              rasterCodecs.Options.Jpeg2000.Load.J2kResolution = new LeadSize(fileDataItem.Options.MiscOptions.XResolution,
                                 fileDataItem.Options.MiscOptions.YResolution);
                              break;
                           }
                     }
                     break;
                  }

               case RasterDialogFileOptionsType.Xls:
                  rasterCodecs.Options.Xls.Load.MultiPageSheet = fileDataItem.Options.XlsOptions.MultiPageSheet;
                  break;

               case RasterDialogFileOptionsType.Vff:
                  rasterCodecs.Options.Vff.Load.View = fileDataItem.Options.VffOptions.View;
                  break;

               case RasterDialogFileOptionsType.Anz:
                  rasterCodecs.Options.Anz.Load.View = fileDataItem.Options.AnzOptions.View;
                  break;

               case RasterDialogFileOptionsType.Vector:
                  rasterCodecs.Options.Vector.Load.BackgroundColor = fileDataItem.Options.VectorOptions.Options.BackgroundColor;
                  rasterCodecs.Options.Vector.Load.BitsPerPixel = fileDataItem.Options.VectorOptions.Options.BitsPerPixel;
                  rasterCodecs.Options.Vector.Load.ForceBackgroundColor = fileDataItem.Options.VectorOptions.Options.ForceBackgroundColor;
                  rasterCodecs.Options.Vector.Load.ViewHeight = fileDataItem.Options.VectorOptions.Options.ViewHeight;
                  rasterCodecs.Options.Vector.Load.ViewMode = fileDataItem.Options.VectorOptions.Options.ViewMode;
                  rasterCodecs.Options.Vector.Load.ViewWidth = fileDataItem.Options.VectorOptions.Options.ViewWidth;
                  break;
            }

            rasterCodecs.Options.Load.Passes = fileDataItem.Passes;
            rasterCodecs.Options.Load.Rotated = fileDataItem.LoadRotated;
            rasterCodecs.Options.Load.Compressed = fileDataItem.LoadCompressed;

            RasterImage loadedImage = rasterCodecs.Load(fileDataItem.Name,
               0,
               CodecsLoadByteOrder.BgrOrGray,
               fileDataItem.PageNumber,
               fileDataItem.PageNumber);

            // COPY THE 'loadedImage' IMAGE.

            loadedImage.Dispose();
         }
      }
   }

static class LEAD_VARS
{
   public const string ImagesDir = @"C:\Users\Public\Documents\LEADTOOLS Images";
}
Requirements

Target Platforms: Windows 7, Windows Vista SP1 or later, Windows XP SP3, Windows Server 2008 (Server Core not supported), Windows Server 2008 R2 (Server Core supported with SP1 or later), Windows Server 2003 SP2

See Also

Reference

RasterOpenDialog Members
Leadtools.WinForms.CommonDialogs.File Namespace
Leadtools.Codecs.RasterCodecs.Load(System.Uri,System.Int32,Leadtools.Codecs.CodecsLoadByteOrder,System.Int32,System.Int32)






Products | Support | Contact Us | Copyright Notices

© 2006-2012 All Rights Reserved. LEAD Technologies, Inc.
