LineRemoveCommandFlags Enumeration

Visual Basic
C#
WinRT C#
WinRT JavaScript
C++

[FlagsAttribute()]
public enum LineRemoveCommandFlags : System.Enum, System.IComparable, System.IConvertible, System.IFormattable

'Declaration

<FlagsAttribute()>
Public Enum LineRemoveCommandFlags
   Inherits System.Enum
   Implements System.IComparable, System.IConvertible, System.IFormattable

'Usage

Dim instance As LineRemoveCommandFlags

[FlagsAttribute()]
public enum LineRemoveCommandFlags : System.IComparable, System.IConvertible, System.IFormattable

Leadtools.Workflow.ImageProcessing.LineRemoveCommandFlags = function() { };
Leadtools.Workflow.ImageProcessing.LineRemoveCommandFlags.prototype = {

  LeadtoolsMemberMarker(replace me)
 };

[FlagsAttribute()]
public enum class LineRemoveCommandFlags : public System.Enum, System.IComparable, System.IConvertible, System.IFormattable

Member	Description
LeadRegion	When LineRemoveActivity returns, LineRemoveActivity.ImageRegion is updated with a shallow copy of affected image that also contains a region with all of the removed lines. This flag must be used in conjunction with SingleRegion. So set LineRemoveActivity.Flags to SingleRegion \| LeadRegion
None	No flags.

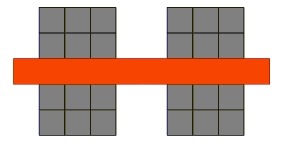

RemoveEntire	Remove the entire line, even if the line passes through a character or a wall. Consider the line below. Setting Wall as 80 and passing RemoveEntire will remove the red pixels as shown below.
SingleRegion	When LineRemoveActivity returns, either LineRemoveActivity.ImageRegion or LineRemoveActivity.Region will reference a region that contains all of the removed lines. If LeadRegion is also set, LineRemoveActivity.ImageRegion will be updated with a shallow copy of image that has a LEAD region that contains all of the removed lines. If LeadRegion is not set, LineRemoveActivity.Region is updated with a Windows region that contains all of the removed lines. When the region (either LEAD or Windows) is no longer needed, it must be disposed of (either the region allocated in the LineRemoveActivity.ImageRegion or the LineRemoveActivity.Region).
UseDpi	The unit of measure for all properties of the LineRemoveActivity is thousandths of an inch. Use the image's DPI to convert to pixels. This allows the processing of many images with different DPI. If this flag is not set, the unit of measure for all properties of the LineRemoveActivity is pixels.
UseGap	Consider "gaps" in lines when performing line removal. If this flag is set, the gap length value (either the LineRemoveActivity.GapLength property) is used. If this flag is not passed, the gap length value is ignored.
UseVariance	Consider line variance when performing line removal. If this flag is passed, the variance value (either the LineRemoveActivity.Variance property) is used. If this flag is not passed, the variance value is ignored.

You can use a bitwise OR (|) to specify one or more flags.

System.Object
   System.ValueType
      System.Enum
         Leadtools.Workflow.ImageProcessing.LineRemoveCommandFlags

Target Platforms: Windows 7, Windows Vista SP1 or later, Windows XP SP3, Windows Server 2008 (Server Core not supported), Windows Server 2008 R2 (Server Core supported with SP1 or later), Windows Server 2003 SP2

Reference

Leadtools.Workflow.ImageProcessing Namespace
