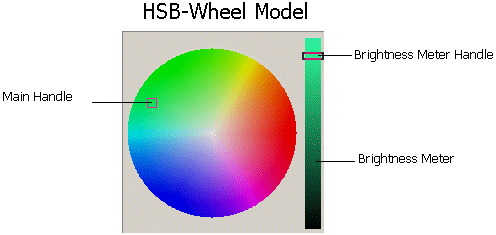

HSB-Wheel Based Model

Show in webframe

In the HSB color space:

Three numbers representing Hue, Saturation, and Brightness can be used to uniquely identify each color in the spectrum.

Hue is what we usually refer to informally as "color". For example, Red, Orange, Yellow, Green, Cyan, Blue, and Violet are all different hues.

Saturation refers to vividness or deepness of a color. For example, a deep fire-engine red is very saturated, while a pale pink, which may have the same hue, is very unsaturated. When all of the saturation is removed from a color, it becomes gray.

Brightness refers to the lightness or darkness of a color.

Using this model you can select a color according to a hue value in degrees.


See Also

Functions:

LDialogColor::DoModalColor, LDialogColor::DoModalCustomizePalette.

Topics:

HSB-Brightness Based Model



HSB-Hue Based Model



RGB-3D Additive Model



Lab-Device Independent Model



CMY-3D Subtractive Model



CMYK -3D Subtractive Model
