AnnGroupObject Class

This class provides support for creating and managing annotation group objects.

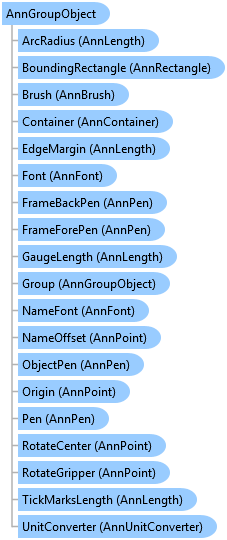

Object Model

Syntax

[SerializableAttribute()]
public class AnnGroupObject : AnnObject, IAnnProtractorObject, IAnnRulerObject, IAnnTextObject, System.ICloneable, System.IDisposable, System.Runtime.Serialization.ISerializable

[SerializableAttribute()]
public ref class AnnGroupObject : public AnnObject, IAnnProtractorObject, IAnnRulerObject, IAnnTextObject, System.ICloneable, System.IDisposable, System.Runtime.Serialization.ISerializable

'Declaration

<SerializableAttribute()>
Public Class AnnGroupObject
   Inherits AnnObject
   Implements IAnnProtractorObject, IAnnRulerObject, IAnnTextObject, System.ICloneable, System.IDisposable, System.Runtime.Serialization.ISerializable

'Usage

Dim instance As AnnGroupObject

Remarks

The annotation group object contains a collection of annotation objects from any class that is derived from theAnnObject class. This collection of objects can be treated as one while they are in a group. An annotation object can be in either a container or a group but not both at the same time.

For more information about grouping and ungrouping, refer to Grouping and Ungrouping Annotation Objects.

Example

Visual Basic
C#

Imports Leadtools
Imports Leadtools.Annotations
Imports Leadtools.Codecs
Imports Leadtools.WinForms

Private Sub AnnGroupObject_AnnGroupObject(ByVal container As AnnContainer)
   Dim group As AnnGroupObject = New AnnGroupObject()
   ' move the objects to the group
   Do While container.Objects.Count > 0
      Dim obj As AnnObject = container.Objects(0)
      container.Objects.RemoveAt(0)
      group.Objects.Add(obj)
   Loop

   ' add the group to the container
   container.Objects.Add(group)
End Sub

using Leadtools;
using Leadtools.Annotations;
using Leadtools.Codecs;
using Leadtools.WinForms;

private void AnnGroupObject_AnnGroupObject(AnnContainer container)
{
   AnnGroupObject group = new AnnGroupObject();
   // move the objects to the group
   while(container.Objects.Count > 0)
   {
      AnnObject obj = container.Objects[0];
      container.Objects.RemoveAt(0);
      group.Objects.Add(obj);
   }

   // add the group to the container
   container.Objects.Add(group);
}

Requirements

Target Platforms

Reference

AnnGroupObject Members
Leadtools.Annotations Namespace
