LineRemoveCommandFlags Enumeration

Visual Basic
C#
Objective-C
Java
C++

[FlagsAttribute()]
[DataContractAttribute(Namespace="http://Leadtools.Services.ImageProcessing.DataContracts/2009/01", Name="LineRemoveCommandFlags")]
public enum LineRemoveCommandFlags : System.Enum, System.IComparable, System.IConvertible, System.IFormattable

'Declaration

<FlagsAttribute()>
<DataContractAttribute(Namespace="http://Leadtools.Services.ImageProcessing.DataContracts/2009/01", Name="LineRemoveCommandFlags")>
Public Enum LineRemoveCommandFlags
   Inherits System.Enum
   Implements System.IComparable, System.IConvertible, System.IFormattable

'Usage

Dim instance As LineRemoveCommandFlags

[FlagsAttribute()]
[DataContractAttribute(Namespace="http://Leadtools.Services.ImageProcessing.DataContracts/2009/01", Name="LineRemoveCommandFlags")]
public enum class LineRemoveCommandFlags : public System.Enum, System.IComparable, System.IConvertible, System.IFormattable

Value	Member	Description
0x00000000	None	No flags.
0x00000001	UseDpi	The unit of measure for all properties of the LineRemoveRequest is thousandths of an inch. Use the image's DPI to convert to pixels. This allows the processing of many images with different DPI. If this flag is not set, the unit of measure for all properties of the LineRemoveRequest is pixels.
0x00000002	GetRegion	When IDocumentProcessingService.BorderRemove returns the GetRegion value, the DocumentResponse.Region property will be updated with a Windows region that contains all the removed bumps or nicks. A region that contains all the removed bumps or nicks.
0x00000010	ImageUnchanged	The affected image (Run method image) is unchanged.

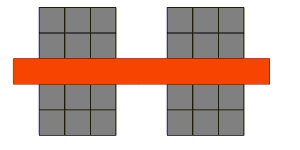

0x00000200	RemoveEntire	Remove the entire line, even if the line passes through a character or a wall. Consider the line below. Setting MaximumWallPercent as 80 and passing RemoveEntire flag will remove the red pixels as shown below.
0x00000400	UseGap	Consider "gaps" in lines when performing line removal. If this flag is set, LineRemoveRequest.GapLength value property is used. If this flag is not passed, the LineRemoveRequest.GapLength value is ignored.
0x00000800	UseVariance	Consider line variance when performing line removal. If this flag is passed, the variance value LineRemoveRequest.Variance is used. If this flag is not passed, the variance value is ignored.

You can use a bitwise OR (|) to specify one or more flags.

System.Object
   System.ValueType
      System.Enum
         Leadtools.Services.ImageProcessing.DataContracts.LineRemoveCommandFlags

Target Platforms

Reference

Leadtools.Services.ImageProcessing.DataContracts Namespace
