LEADTOOLS (Leadtools assembly)

StartDithering Method

Show in webframe
Example







The palette this uses for dithering. You can specify your own palette, or use a null reference (Nothing in Visual Basic) for LEAD's fixed palette.
Number of colors used in the palette. If the palette contains more colors, only the first colors colors are used. Valid values are 2 to 256.
Initializes the buffered dithering of an image.
Syntax
public void StartDithering(
   RasterColor[] palette,
   int colors
)
'Declaration

Public Sub StartDithering( _
   ByVal palette() As RasterColor, _
   ByVal colors As Integer _
)
'Usage

Dim instance As RasterImage
Dim palette() As RasterColor
Dim colors As Integer

instance.StartDithering(palette, colors)
public void StartDithering(
   RasterColor[] palette,
   int colors
)
-(BOOL)startDithering:(NSArray*)palette
               colors:(unsigned int)colors
                error:(NSError**)outError;

public void startDithering(
  RasterColor[] palette,
  int colors
)

 function Leadtools.RasterImage.StartDithering(
   palette ,
   colors
)
public:
void StartDithering(
   array<RasterColor>^ palette,
   int colors
)

Parameters

palette
The palette this uses for dithering. You can specify your own palette, or use a null reference (Nothing in Visual Basic) for LEAD's fixed palette.
colors
Number of colors used in the palette. If the palette contains more colors, only the first colors colors are used. Valid values are 2 to 256.
Remarks

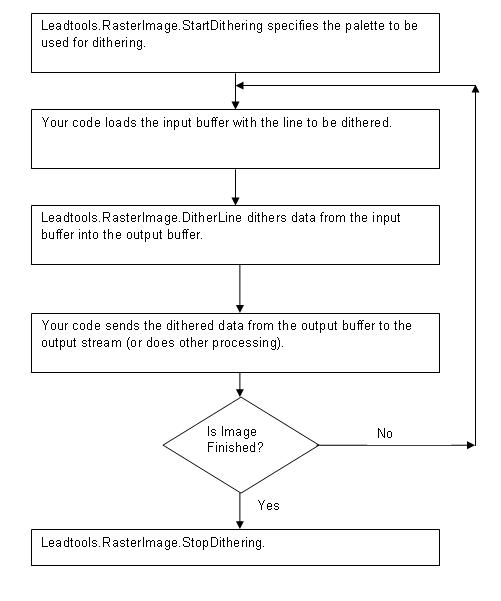

The following flow chart shows how the methods relate to each other:

The following properties from the RasterImage are used to control the dithering operation:

This method does not support signed images.

For more information, refer to Introduction to Image Processing With LEADTOOLS.

Example
Copy Code
Imports Leadtools
Imports Leadtools.Codecs
Imports Leadtools.ImageProcessing
Imports Leadtools.ImageProcessing.Core
Imports Leadtools.ImageProcessing.Color
Imports Leadtools.WinForms
Imports Leadtools.Dicom
Imports Leadtools.Drawing

Public Sub StartDitheringExample()
   Dim codecs As RasterCodecs = New RasterCodecs()
   ' Load an image that has BottomLeft ViewPerspective
   Dim image As RasterImage = codecs.Load(Path.Combine(LEAD_VARS.ImagesDir, "IMAGE1.CMP"))

   Dim Palette As RasterColor() = RasterPalette.Fixed(8)

   ' Create the new palletized image.
   Dim destinationImage As RasterImage = New RasterImage(RasterMemoryFlags.Conventional, image.Width, image.Height, 8, image.Order, image.ViewPerspective, Palette, IntPtr.Zero, 0)

   ' Set the dithering method.
   image.DitheringMethod = RasterDitheringMethod.StevensonArce

   ' Initialize the dithering process.
   image.StartDithering(Palette, 256)

   ' Allocate the output buffer for 8-bit data.
   Dim InBuffer As Byte() = New Byte(image.Width * 3 - 1) {} ' Buffer to hold the input row.
   Dim OutBuffer As Byte() = New Byte(image.Width - 1) {} ' Buffer to hold the output row.

   ' Use DitherLine method to process each row in the image.
   Dim i As Integer = 0
   Do While i < image.Height
      image.GetRow(i, InBuffer, 0, image.BytesPerLine)
      image.DitherLine(InBuffer, 0, OutBuffer, 0)
      destinationImage.SetRow(i, OutBuffer, 0, destinationImage.BytesPerLine)
      i += 1
   Loop
   ' End the dithering process.
   image.StopDithering()

   codecs.Save(destinationImage, Path.Combine(LEAD_VARS.ImagesDir, "IMAGE1_DitherLine.BMP"), RasterImageFormat.Bmp, 0)

   image.Dispose()
   destinationImage.Dispose()
   codecs.Dispose()
End Sub

Public NotInheritable Class LEAD_VARS
Public Const ImagesDir As String = "C:\Users\Public\Documents\LEADTOOLS Images"
End Class
using Leadtools;
using Leadtools.Codecs;
using Leadtools.ImageProcessing;
using Leadtools.ImageProcessing.Core;
using Leadtools.ImageProcessing.Color;
using Leadtools.WinForms;
using Leadtools.Dicom;
using Leadtools.Drawing;


public void StartDitheringExample()
{
   RasterCodecs codecs = new RasterCodecs();
   // Load an image that has BottomLeft ViewPerspective
   RasterImage image = codecs.Load(Path.Combine(ImagesPath.Path, "IMAGE1.CMP"));
   RasterColor[] Palette = RasterPalette.Fixed(256);

   // Create the new palletized image.
   RasterImage destinationImage = new RasterImage(RasterMemoryFlags.Conventional, image.Width, image.Height, 8, image.Order, image.ViewPerspective, Palette, IntPtr.Zero, 0);

   // Set the dithering method.
   image.DitheringMethod = RasterDitheringMethod.StevensonArce;

   // Initialize the dithering process.
   image.StartDithering(Palette, 256);

   // Allocate the output buffer for 8-bit data.
   byte[] InBuffer = new byte[image.Width * 3];// Buffer to hold the input row.
   byte[] OutBuffer = new byte[image.Width];// Buffer to hold the output row.

   // Use DitherLine method to process each row in the image.
   for(int i = 0; i < image.Height; i++)
   {
      image.GetRow(i, InBuffer, 0, image.BytesPerLine);
      image.DitherLine(InBuffer, 0, OutBuffer, 0);
      destinationImage.SetRow(i, OutBuffer, 0, destinationImage.BytesPerLine);
   }
   // End the dithering process.
   image.StopDithering();

   codecs.Save(destinationImage, Path.Combine(ImagesPath.Path, "IMAGE1_DitherLine.BMP"), RasterImageFormat.Bmp, 0);

   image.Dispose();
   destinationImage.Dispose();
   codecs.Dispose();
}
RasterImageExamples.prototype.StartDitheringExample = function () {
   Tools.SetLicense();
   with (Leadtools) {
      with (Leadtools.Codecs) {
         var codecs = new RasterCodecs();

         // Load an image that has BottomLeft ViewPerspective
         var srcFileName = "Assets\\Image1.cmp";
         var image;
         var destinationImage;
         return Tools.AppInstallFolder().getFileAsync(srcFileName).then(function (loadFile) {
            return codecs.loadAsync(LeadStreamFactory.create(loadFile))
         })
            .then(function (img) {
               image = img;

               var Palette = [RasterColorHelper.create(0, 0, 0),
                  RasterColorHelper.create(255, 255, 255),
                  RasterColorHelper.create(255, 0, 0),
                  RasterColorHelper.create(0, 255, 0),
                  RasterColorHelper.create(0, 0, 255),
                  RasterColorHelper.create(255, 255, 0),
                  RasterColorHelper.create(0, 255, 255),
                  RasterColorHelper.create(255, 0, 255),
                  RasterColorHelper.create(128, 128, 0),
                  RasterColorHelper.create(0, 128, 128),
                  RasterColorHelper.create(128, 128, 128),
                  RasterColorHelper.create(128, 0, 128),
                  RasterColorHelper.create(128, 255, 128),
                  RasterColorHelper.create(128, 255, 255),
                  RasterColorHelper.create(255, 128, 128),
                  RasterColorHelper.create(255, 255, 128)
               ];

               // Create the new palletized image.
               destinationImage = new RasterImage(RasterMemoryFlags.conventional, image.width, image.height, 4, image.order, image.viewPerspective, Palette);

               // Set the dithering method.
               image.ditheringMethod = RasterDitheringMethod.stevensonArce;

               // Initialize the dithering process.
               image.startDithering(Palette, Palette.length);

               // Allocate the output buffer for 8-bit data.
               var InBuffer = new Uint8Array(image.bytesPerLine);// Buffer to hold the input row.
               var OutBuffer = new Uint8Array(destinationImage.bytesPerLine);// Buffer to hold the output row.

               // Use DitherLine method to process each row in the image.
               image.accessData();
               for (var i = 0; i < image.height; i++) {
                  image.getRow(i, InBuffer, 0, image.bytesPerLine);
                  image.ditherLine(InBuffer, OutBuffer);
                  destinationImage.setRow(i, OutBuffer, 0, destinationImage.bytesPerLine);
               }
               // End the dithering process.
               image.stopDithering();
               image.releaseData();

               return Tools.AppLocalFolder().createFileAsync("IMAGE1_DitherLine.BMP")
            })
            .then(function (saveFile) {
               var saveStream = LeadStreamFactory.create(saveFile);
               return codecs.saveAsync(destinationImage, saveStream, RasterImageFormat.bmp, 0)
            })
            .then(function () {

               image.Dispose();
               destinationImage.Dispose();
               codecs.Dispose();
            });
      }
   }
}
using Leadtools;
using Leadtools.Codecs;
using Leadtools.ImageProcessing;
using Leadtools.ImageProcessing.Core;
using Leadtools.ImageProcessing.Color;
using Leadtools.Dicom;


public async Task StartDitheringExample()
{
   RasterCodecs codecs = new RasterCodecs();
   // Load an image that has BottomLeft ViewPerspective
   string srcFileName = @"Assets\Image1.cmp";
   StorageFile loadFile = await Tools.AppInstallFolder.GetFileAsync(srcFileName);
   RasterImage image = await codecs.LoadAsync(LeadStreamFactory.Create(loadFile));
   RasterColor[] Palette = { RasterColorHelper.Create(0,0,0),
                             RasterColorHelper.Create(255,255,255),
                             RasterColorHelper.Create(255,0,0),
                             RasterColorHelper.Create(0,255,0),
                             RasterColorHelper.Create(0,0,255),
                             RasterColorHelper.Create(255,255,0),
                             RasterColorHelper.Create(0,255,255),
                             RasterColorHelper.Create(255,0,255),
                             RasterColorHelper.Create(128,128,0),
                             RasterColorHelper.Create(0,128,128),
                             RasterColorHelper.Create(128,128,128),
                             RasterColorHelper.Create(128,0,128),
                             RasterColorHelper.Create(128,255,128),
                             RasterColorHelper.Create(128,255,255),
                             RasterColorHelper.Create(255,128,128),
                             RasterColorHelper.Create(255,255,128),
                           };

   // Create the new palletized image.
   RasterImage destinationImage = new RasterImage(RasterMemoryFlags.Conventional, image.Width, image.Height, 4, image.Order, image.ViewPerspective, Palette);

   // Set the dithering method.
   image.DitheringMethod = RasterDitheringMethod.StevensonArce;

   // Initialize the dithering process.
   image.StartDithering(Palette, Palette.Length);

   // Allocate the output buffer for 8-bit data.
   byte[] InBuffer = new byte[image.BytesPerLine];// Buffer to hold the input row.
   byte[] OutBuffer = new byte[destinationImage.BytesPerLine];// Buffer to hold the output row.

   // Use DitherLine method to process each row in the image.
   image.AccessData();
   for (int i = 0; i < image.Height; i++)
   {
      image.GetRow(i, InBuffer, 0, image.BytesPerLine);
      image.DitherLine(InBuffer, 0, OutBuffer, 0);
      destinationImage.SetRow(i, OutBuffer, 0, destinationImage.BytesPerLine);
   }
   // End the dithering process.
   image.StopDithering();
   image.ReleaseData();

   StorageFile saveFile = await Tools.AppLocalFolder.CreateFileAsync("IMAGE1_DitherLine.BMP");
   ILeadStream saveStream = LeadStreamFactory.Create(saveFile);
   await codecs.SaveAsync(destinationImage, saveStream, RasterImageFormat.Bmp, 0);

   image.Dispose();
   destinationImage.Dispose();
   codecs.Dispose();
}
using Leadtools;
using Leadtools.Codecs;
using Leadtools.Dicom;
using Leadtools.ImageProcessing;
using Leadtools.ImageProcessing.Core;
using Leadtools.ImageProcessing.Color;
using Leadtools.Examples;
using Leadtools.Windows.Media;

public void StartDitheringExample(RasterImage image, Stream destStream)
{
   RasterColor[] Palette = RasterPalette.Fixed(256);
   // Create the new palletized image.
   RasterImage destinationImage = new RasterImage(RasterMemoryFlags.Conventional, image.Width, image.Height, 8, image.Order, image.ViewPerspective, Palette, null, 0);

   // Set the dithering method.
   image.DitheringMethod = RasterDitheringMethod.StevensonArce;

   // Initialize the dithering process.
   image.StartDithering(Palette, 256);

   // Allocate the output buffer for 8-bit data.
   byte[] InBuffer = new byte[image.Width * 3];// Buffer to hold the input row.
   byte[] OutBuffer = new byte[image.Width];// Buffer to hold the output row.

   // Use DitherLine method to process each row in the image.
   for (int i = 0; i < image.Height; i++)
   {
      image.GetRow(i, InBuffer, 0, image.BytesPerLine);
      image.DitherLine(InBuffer, 0, OutBuffer, 0);
      destinationImage.SetRow(i, OutBuffer, 0, destinationImage.BytesPerLine);
   }
   // End the dithering process.
   image.StopDithering();

   RasterCodecs codecs = new RasterCodecs();
   codecs.Save(destinationImage, destStream, RasterImageFormat.Bmp, 0);

   image.Dispose();
   destinationImage.Dispose();
}
Imports Leadtools
Imports Leadtools.Codecs
Imports Leadtools.Dicom
Imports Leadtools.ImageProcessing
Imports Leadtools.ImageProcessing.Core
Imports Leadtools.ImageProcessing.Color
Imports Leadtools.Windows.Media

Public Sub StartDitheringExample(ByVal image As RasterImage, ByVal destStream As Stream)
   Dim Palette As RasterColor() = RasterPalette.Fixed(256)
   ' Create the new palletized image.
   Dim destinationImage As RasterImage = New RasterImage(RasterMemoryFlags.Conventional, image.Width, image.Height, 8, image.Order, image.ViewPerspective, Palette, Nothing, 0)

   ' Set the dithering method.
   image.DitheringMethod = RasterDitheringMethod.StevensonArce

   ' Initialize the dithering process.
   image.StartDithering(Palette, 256)

   ' Allocate the output buffer for 8-bit data.
   Dim InBuffer As Byte() = New Byte(image.Width * 3 - 1){} ' Buffer to hold the input row.
   Dim OutBuffer As Byte() = New Byte(image.Width - 1){} ' Buffer to hold the output row.

   ' Use DitherLine method to process each row in the image.
   Dim i As Integer = 0
   Do While i < image.Height
      image.GetRow(i, InBuffer, 0, image.BytesPerLine)
      image.DitherLine(InBuffer, 0, OutBuffer, 0)
      destinationImage.SetRow(i, OutBuffer, 0, destinationImage.BytesPerLine)
      i += 1
   Loop
   ' End the dithering process.
   image.StopDithering()

   Dim codecs As RasterCodecs = New RasterCodecs()
   codecs.Save(destinationImage, destStream, RasterImageFormat.Bmp, 0)

   image.Dispose()
   destinationImage.Dispose()
End Sub
Requirements

Target Platforms

See Also

Reference

RasterImage Class
RasterImage Members
Introduction to Image Processing With LEADTOOLS
Dithering Methods
Codecs.CodecsThumbnailOptions.DitheringMethod property
ImageProcessing.ColorResolutionCommand.DitheringMethod property
RasterDitheringMethod enumeration
RasterDefaults.DitheringMethod property
RasterImage.DitheringMethod property
RasterImage.DitherLine method
RasterImage.StopDithering method
RasterBufferConverter.Convert






Products | Support | Contact Us | Copyright Notices

© 2006-2014 All Rights Reserved. LEAD Technologies, Inc.
