WorkstationViewer Class

Visual Basic
C#
Objective-C
Java
Managed Extensions for C++
C++

public class WorkstationViewer : System.Windows.Forms.UserControl, Leadtools.Medical.Workstation.Interfaces.Views.IWorkstationView, IViewChanged, System.ComponentModel.IComponent, System.ComponentModel.ISynchronizeInvoke, System.IDisposable, System.Windows.Forms.IBindableComponent, System.Windows.Forms.IContainerControl, System.Windows.Forms.IDropTarget, System.Windows.Forms.IWin32Window

'Declaration

Public Class WorkstationViewer
   Inherits System.Windows.Forms.UserControl
   Implements Leadtools.Medical.Workstation.Interfaces.Views.IWorkstationView, IViewChanged, System.ComponentModel.IComponent, System.ComponentModel.ISynchronizeInvoke, System.IDisposable, System.Windows.Forms.IBindableComponent, System.Windows.Forms.IContainerControl, System.Windows.Forms.IDropTarget, System.Windows.Forms.IWin32Window

'Usage

Dim instance As WorkstationViewer

public __gc class WorkstationViewer : public System.Windows.Forms.UserControl, Leadtools.Medical.Workstation.Interfaces.Views.IWorkstationView, IViewChanged, System.ComponentModel.IComponent, System.ComponentModel.ISynchronizeInvoke, System.IDisposable, System.Windows.Forms.IBindableComponent, System.Windows.Forms.IContainerControl, System.Windows.Forms.IDropTarget, System.Windows.Forms.IWin32Window

public ref class WorkstationViewer : public System.Windows.Forms.UserControl, Leadtools.Medical.Workstation.Interfaces.Views.IWorkstationView, IViewChanged, System.ComponentModel.IComponent, System.ComponentModel.ISynchronizeInvoke, System.IDisposable, System.Windows.Forms.IBindableComponent, System.Windows.Forms.IContainerControl, System.Windows.Forms.IDropTarget, System.Windows.Forms.IWin32Window

This is a high-level control which can be used for displaying DICOM series images with rich user interface functionalities including Window Level, Zooming, scrolling, image processing (invert, rotate, flip…) and various display layout options, pan window and DICOM dump.

The control is also capable of creating and displaying 3D volumes with different rendering options (MIP, VRT, MPR, SSD…). Volumes can be stored into a local storage and loaded later anytime.

Access the internal MedicalViewer controls used to display the DICOM images and the 3D volumes and perform any custom action or extra processing.

For an example, refer to the Medical Workstation Viewer or the live Medical Web Viewer demo.

Target Platforms

Reference

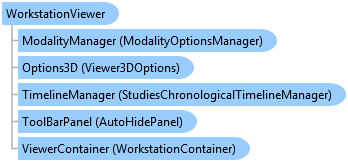

WorkstationViewer Members
Leadtools.Medical.Workstation.UI Namespace
