MedicalViewerPanoramicCell Class

Represents the cell that will be used to display the panoramic frame resulted from adding a MedicalViewerMPRPolygon to a another cell.

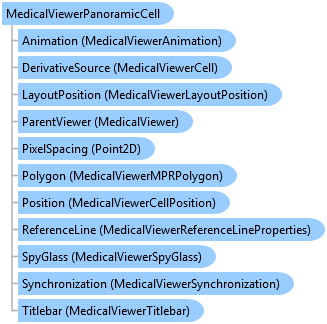

Object Model

Syntax

C#
Visual Basic
Objective-C
Java
C++

public class MedicalViewerPanoramicCell : MedicalViewerCell, System.ComponentModel.IComponent, System.ComponentModel.INotifyPropertyChanged, System.ComponentModel.ISynchronizeInvoke, System.IDisposable, System.Windows.Forms.IBindableComponent, System.Windows.Forms.IDropTarget, System.Windows.Forms.IWin32Window

'Declaration

Public Class MedicalViewerPanoramicCell
   Inherits MedicalViewerCell
   Implements System.ComponentModel.IComponent, System.ComponentModel.INotifyPropertyChanged, System.ComponentModel.ISynchronizeInvoke, System.IDisposable, System.Windows.Forms.IBindableComponent, System.Windows.Forms.IDropTarget, System.Windows.Forms.IWin32Window

'Usage

Dim instance As MedicalViewerPanoramicCell

public ref class MedicalViewerPanoramicCell : public MedicalViewerCell, System.ComponentModel.IComponent, System.ComponentModel.INotifyPropertyChanged, System.ComponentModel.ISynchronizeInvoke, System.IDisposable, System.Windows.Forms.IBindableComponent, System.Windows.Forms.IDropTarget, System.Windows.Forms.IWin32Window

Remarks

In order to connect this panoramic cell to a polygon, pass it to the Polygon.

The user cannot draw the MedicalViewerMPRPolygon to:

Derivative Cell.
Generated MPR Cell.
Paraxial cut cell itself.
A cell with less than 3 frames.

Example

        Imports Leadtools
        Imports Leadtools.Dicom
        Imports Leadtools.Medical3D
        Imports Leadtools.Codecs
        Imports Leadtools.MedicalViewer
        Imports Leadtools.Annotations
        Imports Leadtools.ImageProcessing.Core

        Private Class MedicalViewerMPRPolygonForm : Inherits Form
            Private _medicalViewer As MedicalViewer
            Private _seriesManager As MedicalViewerSeriesManager
            Private Sub MedicalViewer_SizeChanged(ByVal sender As Object, ByVal e As EventArgs)
                _medicalViewer.Size = New Size(Me.ClientRectangle.Right, Me.ClientRectangle.Bottom)
            End Sub

            Public Sub New(ByVal output As MedicalViewerSeriesManager)
                DicomEngine.Startup()
                Dim _codecs As RasterCodecs = New RasterCodecs()

                AddHandler SizeChanged, AddressOf MedicalViewer_SizeChanged

                ' Create the medical viewer and adjust the size and the location.
                _medicalViewer = New MedicalViewer(1, 2)
                _medicalViewer.Location = New Point(0, 0)
                _medicalViewer.Size = New Size(Me.ClientRectangle.Right, Me.ClientRectangle.Bottom)

                _seriesManager = output

                Dim cell As MedicalViewerMultiCell = New MedicalViewerMultiCell(Nothing, True, 1, 1)

                Dim index As Integer
                Dim count As Integer = output.Stacks(0).Items.Count
                Dim codecsInformation As CodecsImageInfo

                Dim imageInformation As MedicalViewerImageInformation() = New MedicalViewerImageInformation(count - 1) {}

                index = 0
                Do While index < count
                    codecsInformation = _codecs.GetInformation(CStr(output.Stacks(0).Items(index).Data), True)

                    imageInformation(index) = New MedicalViewerImageInformation()
                    imageInformation(index).ImageHeight = codecsInformation.Width
                    imageInformation(index).ImageWidth = codecsInformation.Width
                    imageInformation(index).XResolution = codecsInformation.XResolution
                    imageInformation(index).YResolution = codecsInformation.YResolution
                    index += 1
                Loop

                AddHandler cell.FramesRequested, AddressOf cell_FramesRequested
                AddHandler FormClosing, AddressOf MedicalViewerLocalizer_FormClosing
                cell.EnableLowMemoryUsage(2, count, imageInformation)

                _medicalViewer.Cells.Add(cell)

                ' add some actions that will be used to change the properties of the images inside the control.
                cell.AddAction(MedicalViewerActionType.WindowLevel)
                cell.AddAction(MedicalViewerActionType.Alpha)
                cell.AddAction(MedicalViewerActionType.Offset)

                ' assign the added actions to a mouse button, meaning that when the user clicks and drags the mouse button, the associated action will be activated.
                cell.SetAction(MedicalViewerActionType.WindowLevel, MedicalViewerMouseButtons.Left, MedicalViewerActionFlags.Active)
                cell.SetAction(MedicalViewerActionType.Alpha, MedicalViewerMouseButtons.Middle, MedicalViewerActionFlags.Active)
                cell.SetAction(MedicalViewerActionType.Offset, MedicalViewerMouseButtons.Right, MedicalViewerActionFlags.Active)

                cell.ReferenceLine.Enabled = True
                cell.ReferenceLine.Color = Color.Yellow
                cell.ShowCellBoundaries = True

                ' adjust some properties of the cell and add some tags.
                _medicalViewer.Cells(0).SetTag(2, MedicalViewerTagAlignment.TopLeft, MedicalViewerTagType.UserData, "EX. ID 230-36-5448")
                _medicalViewer.Cells(0).SetTag(4, MedicalViewerTagAlignment.TopLeft, MedicalViewerTagType.Frame)
                _medicalViewer.Cells(0).SetTag(6, MedicalViewerTagAlignment.TopLeft, MedicalViewerTagType.Scale)
                _medicalViewer.Cells(0).SetTag(2, MedicalViewerTagAlignment.BottomLeft, MedicalViewerTagType.WindowLevelData)
                _medicalViewer.Cells(0).SetTag(1, MedicalViewerTagAlignment.BottomLeft, MedicalViewerTagType.FieldOfView)

                cell.PixelSpacing = output.Stacks(0).PixelSpacing

                index = 0
                Do While index < count
                    cell.SetImagePosition(index, output.Stacks(0).Items(index).ImagePosition, (index = count - 1))
                    index += 1
                Loop
                cell.ImageOrientation = output.Stacks(0).Items(0).ImageOrientationArray
                cell.FrameOfReferenceUID = output.Stacks(0).Items(0).FrameOfReferenceUID

                Dim width As Integer = cell.VirtualImage(cell.ActiveSubCell).Image.Width
                Dim height As Integer = cell.VirtualImage(cell.ActiveSubCell).Image.Height



                Controls.Add(_medicalViewer)
                _medicalViewer.Dock = DockStyle.Fill
                DicomEngine.Shutdown()

                ' create a new polygon
                Dim polygon As MedicalViewerMPRPolygon = New MedicalViewerMPRPolygon()

                ' set some point, here we created a polygon that resembles a rectangle with a missing bottom line.
                polygon.Points.Add(New PointF(width * 1 \ 4, height * 3 \ 4))
                polygon.Points.Add(New PointF(width * 1 \ 4, height * 1 \ 4))
                polygon.Points.Add(New PointF(width * 3 \ 4, height * 1 \ 4))
                polygon.Points.Add(New PointF(width * 3 \ 4, height * 3 \ 4))


                ' now add this polygon you prepared to the cell.
                cell.Polygons.Add(polygon)

                ' This event is important, because it's used to request the data that is need to create the internal panoramic data.
                AddHandler cell.PanoramicDataRequested, AddressOf cell_PanoramicDataRequested

                ' This event communicate with the Medical3D dll which contains all the internal panormaic calculations.
                AddHandler cell.Data3DRequested, AddressOf cell_Data3DRequested

                ' Dispose the internal data automatically if the use decided to delete the polygon.
                cell.AutoDisposeInternalData = True

                ' register the polygon click
                AddHandler cell.MPRPolygonClicked, AddressOf cell_MPRPolygonClicked

                CreatePanoramicCell(cell, polygon)
                polygon.Recalculate()
            End Sub

            Private Sub cell_Data3DRequested(ByVal sender As Object, ByVal e As MedicalViewerData3DRequestedEventArgs)
                e.Succeed = Medical3DEngine.Provide3DInformation(e)
            End Sub

            Private Sub CreatePanoramicCell(ByVal cellSource As MedicalViewerMultiCell, ByVal polygon As MedicalViewerMPRPolygon)
                ' create a new panoramic cell assigned to the polygon you created.
                Dim cell As MedicalViewerPanoramicCell = New MedicalViewerPanoramicCell(polygon)

                ' add some action, not necessary though.
                cell.AddAction(MedicalViewerActionType.WindowLevel)
                cell.AddAction(MedicalViewerActionType.Scale)
                cell.AddAction(MedicalViewerActionType.Offset)
                cell.AddAction(MedicalViewerActionType.Stack)
                cell.SetAction(MedicalViewerActionType.Offset, MedicalViewerMouseButtons.Right, MedicalViewerActionFlags.AllCells Or MedicalViewerActionFlags.RealTime)
                cell.SetAction(MedicalViewerActionType.Stack, MedicalViewerMouseButtons.Wheel, MedicalViewerActionFlags.Active)
                cell.SetAction(MedicalViewerActionType.Scale, MedicalViewerMouseButtons.Middle, MedicalViewerActionFlags.Active)

                ' Add the panoramic cell the viewer.
                _medicalViewer.Cells.Add(cell)

                ' Create a paraxial cell, and assign it to the polygon you just created.
                Dim paraxialCell As MedicalViewerParaxialCutCell = New MedicalViewerParaxialCutCell(polygon, 0)

                ' set the distance and the length of the paraxial cuts.
                paraxialCell.ParaxialDistance = 20
                paraxialCell.ParaxialLength = 200

                ' Add the paraxial cuts to the viewer.
                _medicalViewer.Cells.Add(paraxialCell)
            End Sub

            Private Sub cell_MPRPolygonClicked(ByVal sender As Object, ByVal e As MedicalViewerMPRPolygonClickedEventsArgs)
                Dim cell As MedicalViewerMultiCell = CType(sender, MedicalViewerMultiCell)
                Dim paraxialCell As MedicalViewerParaxialCutCell = CType(_medicalViewer.Cells(2), MedicalViewerParaxialCutCell)

                ' if the user clicks on other polygon lines, the paraxial cut will be assigned to that line
                If (e.Button = MouseButtons.Left) AndAlso e.Type = MedicalViewerMPRPolygonHitTest.Body Then
                    paraxialCell.PolygonLineIndex = e.Index
                End If
            End Sub


            Private Sub cell_PanoramicDataRequested(ByVal sender As Object, ByVal e As MedicalViewerPanoramicDataRequestedEventArgs)
                ' get the cell that requested the MPR data.
                Dim cell As MedicalViewerMultiCell = CType(sender, MedicalViewerMultiCell)

                ' instantiate a new raster codecs, which will be used to load the requested image.
                Dim _codecs As RasterCodecs = New RasterCodecs()

                ' the file name of the images loaded in the original cell.
                Dim fileName As String = CStr(_seriesManager.Stacks(0).Items(e.FrameIndex).Data)

                ' load the image and set it to e.Frame.
                e.Frame = _codecs.Load(fileName, 0, CodecsLoadByteOrder.BgrOrGrayOrRomm, e.FrameIndex + 1, e.FrameIndex + 1)
            End Sub

            Private Sub MedicalViewerLocalizer_FormClosing(ByVal sender As Object, ByVal e As FormClosingEventArgs)
            End Sub

            Private Sub cell_FramesRequested(ByVal sender As Object, ByVal e As MedicalViewerRequestedFramesInformationEventArgs)
                Dim cell As MedicalViewerMultiCell = CType(sender, MedicalViewerMultiCell)
                Dim _codecs As RasterCodecs = New RasterCodecs()
                Dim i As Integer
                Dim image As RasterImage
                Dim fileName As String

                If e.RequestedFramesIndexes.Length > 0 Then
                    fileName = CStr(_seriesManager.Stacks(0).Items(e.RequestedFramesIndexes(0)).Data)
                    image = _codecs.Load(fileName)
                Else
                    Return
                End If

                i = 1
                Do While i < e.RequestedFramesIndexes.Length
                    fileName = CStr(_seriesManager.Stacks(0).Items(e.RequestedFramesIndexes(i)).Data)
                    image.AddPage(_codecs.Load(fileName))
                    i += 1
                Loop

                cell.SetRequestedImage(image, e.RequestedFramesIndexes, MedicalViewerSetImageOptions.Insert)
            End Sub

            Public ReadOnly Property Viewer() As MedicalViewer
                Get
                    Return _medicalViewer
                End Get
            End Property
        End Class

        Private Function GetMedicalViewerMPRPolygonForm() As MedicalViewerMPRPolygonForm
            Dim form As MedicalViewerSeriesManagerFrom = New MedicalViewerSeriesManagerFrom()
            Dim output As MedicalViewerSeriesManager = form.LoadJamesHead()

            Return New MedicalViewerMPRPolygonForm(output)
        End Function

        ' This example changes the default window level value by decrease the width by 100. Then resets the images based on the new value.

        Public Sub MedicalViewerMPRPolygonExample()
            Dim myForm As MedicalViewerMPRPolygonForm = GetMedicalViewerMPRPolygonForm()
            Dim medicalViewer As MedicalViewer = myForm.Viewer

            myForm.ShowDialog()
        End Sub      using Leadtools;
      using Leadtools.Dicom;
      using Leadtools.Medical3D;
      using Leadtools.Codecs;
      using Leadtools.MedicalViewer;
      using Leadtools.ImageProcessing;
      using Leadtools.ImageProcessing.Core;
      using Leadtools.ImageProcessing.Color;
      using Leadtools.Annotations;

      class MedicalViewerMPRPolygonForm : Form
      {
         private MedicalViewer _medicalViewer;
         private MedicalViewerSeriesManager _seriesManager;
         void MedicalViewerLocalizer_SizeChanged(object sender, EventArgs e)
         {
            _medicalViewer.Size = new Size(this.ClientRectangle.Right, this.ClientRectangle.Bottom);
         }

         public MedicalViewerMPRPolygonForm(MedicalViewerSeriesManager output)
         {
            DicomEngine.Startup();
            RasterCodecs _codecs = new RasterCodecs();

            this.SizeChanged += new EventHandler(MedicalViewerLocalizer_SizeChanged);

            // Create the medical viewer and adjust the size and the location.
            _medicalViewer = new MedicalViewer(1, 2);
            _medicalViewer.Location = new Point(0, 0);
            _medicalViewer.Size = new Size(this.ClientRectangle.Right, this.ClientRectangle.Bottom);

            _seriesManager = output;

            MedicalViewerMultiCell cell = new MedicalViewerMultiCell(null, true, 1, 1);

            int index;
            int count = output.Stacks[0].Items.Count;
            CodecsImageInfo codecsInformation;

            MedicalViewerImageInformation[] imageInformation = new MedicalViewerImageInformation[count];

            for (index = 0; index < count; index++)
            {
               codecsInformation = _codecs.GetInformation((string)(output.Stacks[0].Items[index].Data), true);

               imageInformation[index] = new MedicalViewerImageInformation();
               imageInformation[index].ImageHeight = codecsInformation.Width;
               imageInformation[index].ImageWidth = codecsInformation.Width;
               imageInformation[index].XResolution = codecsInformation.XResolution;
               imageInformation[index].YResolution = codecsInformation.YResolution;
            }

            cell.FramesRequested += new EventHandler<MedicalViewerRequestedFramesInformationEventArgs>(cell_FramesRequested);
            FormClosing += new FormClosingEventHandler(MedicalViewerLocalizer_FormClosing);
            cell.EnableLowMemoryUsage(2, count, imageInformation);

            _medicalViewer.Cells.Add(cell);

            // add some actions that will be used to change the properties of the images inside the control.
            cell.AddAction(MedicalViewerActionType.WindowLevel);
            cell.AddAction(MedicalViewerActionType.Alpha);
            cell.AddAction(MedicalViewerActionType.Offset);

            // assign the added actions to a mouse button, meaning that when the user clicks and drags the mouse button, the associated action will be activated.
            cell.SetAction(MedicalViewerActionType.WindowLevel, MedicalViewerMouseButtons.Left, MedicalViewerActionFlags.Active);
            cell.SetAction(MedicalViewerActionType.Alpha, MedicalViewerMouseButtons.Middle, MedicalViewerActionFlags.Active);
            cell.SetAction(MedicalViewerActionType.Offset, MedicalViewerMouseButtons.Right, MedicalViewerActionFlags.Active);

            cell.ReferenceLine.Enabled = true;
            cell.ReferenceLine.Color = Color.Yellow;
            cell.ShowCellBoundaries = true;

            // adjust some properties of the cell and add some tags.
            _medicalViewer.Cells[0].SetTag(2, MedicalViewerTagAlignment.TopLeft, MedicalViewerTagType.UserData, "EX. ID 230-36-5448");
            _medicalViewer.Cells[0].SetTag(4, MedicalViewerTagAlignment.TopLeft, MedicalViewerTagType.Frame);
            _medicalViewer.Cells[0].SetTag(6, MedicalViewerTagAlignment.TopLeft, MedicalViewerTagType.Scale);
            _medicalViewer.Cells[0].SetTag(2, MedicalViewerTagAlignment.BottomLeft, MedicalViewerTagType.WindowLevelData);
            _medicalViewer.Cells[0].SetTag(1, MedicalViewerTagAlignment.BottomLeft, MedicalViewerTagType.FieldOfView);

            cell.PixelSpacing = output.Stacks[0].PixelSpacing;

            for (index = 0; index < count; index++)
            {
               cell.SetImagePosition(index, output.Stacks[0].Items[index].ImagePosition, (index == count - 1));
            }
            cell.ImageOrientation = output.Stacks[0].Items[0].ImageOrientationArray;
            cell.FrameOfReferenceUID = output.Stacks[0].Items[0].FrameOfReferenceUID;

            int width = cell.VirtualImage[cell.ActiveSubCell].Image.Width;
            int height = cell.VirtualImage[cell.ActiveSubCell].Image.Height;



            Controls.Add(_medicalViewer);
            _medicalViewer.Dock = DockStyle.Fill;
            DicomEngine.Shutdown();

            // create a new polygon
            MedicalViewerMPRPolygon polygon = new MedicalViewerMPRPolygon();

            // set some point, here we created a polygon that resembles a rectangle with a missing bottom line.
            polygon.Points.Add(new PointF(width * 1 / 4, height * 3 / 4));
            polygon.Points.Add(new PointF(width * 1 / 4, height * 1 / 4));
            polygon.Points.Add(new PointF(width * 3 / 4, height * 1 / 4));
            polygon.Points.Add(new PointF(width * 3 / 4, height * 3 / 4));


            // now add this polygon you prepared to the cell.
            cell.Polygons.Add(polygon);

            // This event is important, because it's used to request the data that is need to create the internal panoramic data.
            cell.PanoramicDataRequested += new EventHandler<MedicalViewerPanoramicDataRequestedEventArgs>(cell_PanoramicDataRequested);

            // This event communicate with the Medical3D dll which contains all the internal panormaic calculations.
            cell.Data3DRequested += new EventHandler<MedicalViewerData3DRequestedEventArgs>(cell_Data3DRequested);

            // Dispose the internal data automatically if the use decided to delete the polygon.
            cell.AutoDisposeInternalData = true;

            // register the polygon click
            cell.MPRPolygonClicked += new EventHandler<MedicalViewerMPRPolygonClickedEventsArgs>(cell_MPRPolygonClicked);

            CreatePanoramicCell(cell, polygon);
            polygon.Recalculate();
         }

         void cell_Data3DRequested(object sender, MedicalViewerData3DRequestedEventArgs e)
         {
            e.Succeed = Medical3DEngine.Provide3DInformation(e);
         }

         void CreatePanoramicCell(MedicalViewerMultiCell cellSource, MedicalViewerMPRPolygon polygon)
         {
            // create a new panoramic cell assigned to the polygon you created.
            MedicalViewerPanoramicCell cell = new MedicalViewerPanoramicCell(polygon);

            // add some action, not necessary though.
            cell.AddAction(MedicalViewerActionType.WindowLevel);
            cell.AddAction(MedicalViewerActionType.Scale);
            cell.AddAction(MedicalViewerActionType.Offset);
            cell.AddAction(MedicalViewerActionType.Stack);
            cell.SetAction(MedicalViewerActionType.Offset, MedicalViewerMouseButtons.Right, MedicalViewerActionFlags.AllCells | MedicalViewerActionFlags.RealTime);
            cell.SetAction(MedicalViewerActionType.Stack, MedicalViewerMouseButtons.Wheel, MedicalViewerActionFlags.Active);
            cell.SetAction(MedicalViewerActionType.Scale, MedicalViewerMouseButtons.Middle, MedicalViewerActionFlags.Active);

            // Add the panoramic cell the viewer.
            _medicalViewer.Cells.Add(cell);

            // Create a paraxial cell, and assign it to the polygon you just created.
            MedicalViewerParaxialCutCell paraxialCell = new MedicalViewerParaxialCutCell (polygon, 0);

            // set the distance and the length of the paraxial cuts.
            paraxialCell.ParaxialDistance = 20;
            paraxialCell.ParaxialLength = 200;

            // Add the paraxial cuts to the viewer.
            _medicalViewer.Cells.Add(paraxialCell);
         }

         void cell_MPRPolygonClicked(object sender, MedicalViewerMPRPolygonClickedEventsArgs e)
         {
            MedicalViewerMultiCell cell = (MedicalViewerMultiCell)sender;
            MedicalViewerParaxialCutCell paraxialCell = (MedicalViewerParaxialCutCell)_medicalViewer.Cells[2];

            // if the user clicks on other polygon lines, the paraxial cut will be assigned to that line
            if ((e.Button == MouseButtons.Left) && e.Type == MedicalViewerMPRPolygonHitTest.Body)
            {
               paraxialCell.PolygonLineIndex = e.Index;
            }
         }


         void cell_PanoramicDataRequested(object sender, MedicalViewerPanoramicDataRequestedEventArgs e)
         {
            // get the cell that requested the MPR data.
            MedicalViewerMultiCell cell = (MedicalViewerMultiCell)sender;

            // instantiate a new raster codecs, which will be used to load the requested image.
            RasterCodecs _codecs = new RasterCodecs();

            // the file name of the images loaded in the original cell.
            String fileName = (string)(_seriesManager.Stacks[0].Items[e.FrameIndex].Data);

            // load the image and set it to e.Frame.
            e.Frame = _codecs.Load(fileName, 0, CodecsLoadByteOrder.BgrOrGrayOrRomm, e.FrameIndex + 1, e.FrameIndex + 1);
         }

         void MedicalViewerLocalizer_FormClosing(object sender, FormClosingEventArgs e)
         {
         }

         void cell_FramesRequested(object sender, MedicalViewerRequestedFramesInformationEventArgs e)
         {
            MedicalViewerMultiCell cell = (MedicalViewerMultiCell)(sender);
            RasterCodecs _codecs = new RasterCodecs();
            int i;
            RasterImage image;
            string fileName;

            if (e.RequestedFramesIndexes.Length > 0)
            {
               fileName = (string)(_seriesManager.Stacks[0].Items[e.RequestedFramesIndexes[0]].Data);
               image = _codecs.Load(fileName);
            }
            else
               return;

            for (i = 1; i < e.RequestedFramesIndexes.Length; i++)
            {
               fileName = (string)(_seriesManager.Stacks[0].Items[e.RequestedFramesIndexes[i]].Data);
               image.AddPage(_codecs.Load(fileName));
            }

            cell.SetRequestedImage(image, e.RequestedFramesIndexes, MedicalViewerSetImageOptions.Insert);
         }

         public MedicalViewer Viewer
         {
            get { return _medicalViewer; }
         }
      }

      MedicalViewerMPRPolygonForm GetMedicalViewerMPRPolygonForm()
      {
         MedicalViewerSeriesManagerFrom form = new MedicalViewerSeriesManagerFrom();
         MedicalViewerSeriesManager output = form.LoadJamesHead();

         return new MedicalViewerMPRPolygonForm(output);
      }

      // This example changes the default window level value by decrease the width by 100. Then resets the images based on the new value.

      public void MedicalViewerMPRPolygonExample()
      {
         MedicalViewerMPRPolygonForm myForm = GetMedicalViewerMPRPolygonForm();
         MedicalViewer medicalViewer = myForm.Viewer;

         myForm.ShowDialog();
      }

        Imports Leadtools
        Imports Leadtools.Dicom
        Imports Leadtools.Medical3D
        Imports Leadtools.Codecs
        Imports Leadtools.MedicalViewer
        Imports Leadtools.Annotations
        Imports Leadtools.ImageProcessing.Core

        Private Class MedicalViewerMPRPolygonForm : Inherits Form
            Private _medicalViewer As MedicalViewer
            Private _seriesManager As MedicalViewerSeriesManager
            Private Sub MedicalViewer_SizeChanged(ByVal sender As Object, ByVal e As EventArgs)
                _medicalViewer.Size = New Size(Me.ClientRectangle.Right, Me.ClientRectangle.Bottom)
            End Sub

            Public Sub New(ByVal output As MedicalViewerSeriesManager)
                DicomEngine.Startup()
                Dim _codecs As RasterCodecs = New RasterCodecs()

                AddHandler SizeChanged, AddressOf MedicalViewer_SizeChanged

                ' Create the medical viewer and adjust the size and the location.
                _medicalViewer = New MedicalViewer(1, 2)
                _medicalViewer.Location = New Point(0, 0)
                _medicalViewer.Size = New Size(Me.ClientRectangle.Right, Me.ClientRectangle.Bottom)

                _seriesManager = output

                Dim cell As MedicalViewerMultiCell = New MedicalViewerMultiCell(Nothing, True, 1, 1)

                Dim index As Integer
                Dim count As Integer = output.Stacks(0).Items.Count
                Dim codecsInformation As CodecsImageInfo

                Dim imageInformation As MedicalViewerImageInformation() = New MedicalViewerImageInformation(count - 1) {}

                index = 0
                Do While index < count
                    codecsInformation = _codecs.GetInformation(CStr(output.Stacks(0).Items(index).Data), True)

                    imageInformation(index) = New MedicalViewerImageInformation()
                    imageInformation(index).ImageHeight = codecsInformation.Width
                    imageInformation(index).ImageWidth = codecsInformation.Width
                    imageInformation(index).XResolution = codecsInformation.XResolution
                    imageInformation(index).YResolution = codecsInformation.YResolution
                    index += 1
                Loop

                AddHandler cell.FramesRequested, AddressOf cell_FramesRequested
                AddHandler FormClosing, AddressOf MedicalViewerLocalizer_FormClosing
                cell.EnableLowMemoryUsage(2, count, imageInformation)

                _medicalViewer.Cells.Add(cell)

                ' add some actions that will be used to change the properties of the images inside the control.
                cell.AddAction(MedicalViewerActionType.WindowLevel)
                cell.AddAction(MedicalViewerActionType.Alpha)
                cell.AddAction(MedicalViewerActionType.Offset)

                ' assign the added actions to a mouse button, meaning that when the user clicks and drags the mouse button, the associated action will be activated.
                cell.SetAction(MedicalViewerActionType.WindowLevel, MedicalViewerMouseButtons.Left, MedicalViewerActionFlags.Active)
                cell.SetAction(MedicalViewerActionType.Alpha, MedicalViewerMouseButtons.Middle, MedicalViewerActionFlags.Active)
                cell.SetAction(MedicalViewerActionType.Offset, MedicalViewerMouseButtons.Right, MedicalViewerActionFlags.Active)

                cell.ReferenceLine.Enabled = True
                cell.ReferenceLine.Color = Color.Yellow
                cell.ShowCellBoundaries = True

                ' adjust some properties of the cell and add some tags.
                _medicalViewer.Cells(0).SetTag(2, MedicalViewerTagAlignment.TopLeft, MedicalViewerTagType.UserData, "EX. ID 230-36-5448")
                _medicalViewer.Cells(0).SetTag(4, MedicalViewerTagAlignment.TopLeft, MedicalViewerTagType.Frame)
                _medicalViewer.Cells(0).SetTag(6, MedicalViewerTagAlignment.TopLeft, MedicalViewerTagType.Scale)
                _medicalViewer.Cells(0).SetTag(2, MedicalViewerTagAlignment.BottomLeft, MedicalViewerTagType.WindowLevelData)
                _medicalViewer.Cells(0).SetTag(1, MedicalViewerTagAlignment.BottomLeft, MedicalViewerTagType.FieldOfView)

                cell.PixelSpacing = output.Stacks(0).PixelSpacing

                index = 0
                Do While index < count
                    cell.SetImagePosition(index, output.Stacks(0).Items(index).ImagePosition, (index = count - 1))
                    index += 1
                Loop
                cell.ImageOrientation = output.Stacks(0).Items(0).ImageOrientationArray
                cell.FrameOfReferenceUID = output.Stacks(0).Items(0).FrameOfReferenceUID

                Dim width As Integer = cell.VirtualImage(cell.ActiveSubCell).Image.Width
                Dim height As Integer = cell.VirtualImage(cell.ActiveSubCell).Image.Height



                Controls.Add(_medicalViewer)
                _medicalViewer.Dock = DockStyle.Fill
                DicomEngine.Shutdown()

                ' create a new polygon
                Dim polygon As MedicalViewerMPRPolygon = New MedicalViewerMPRPolygon()

                ' set some point, here we created a polygon that resembles a rectangle with a missing bottom line.
                polygon.Points.Add(New PointF(width * 1 \ 4, height * 3 \ 4))
                polygon.Points.Add(New PointF(width * 1 \ 4, height * 1 \ 4))
                polygon.Points.Add(New PointF(width * 3 \ 4, height * 1 \ 4))
                polygon.Points.Add(New PointF(width * 3 \ 4, height * 3 \ 4))


                ' now add this polygon you prepared to the cell.
                cell.Polygons.Add(polygon)

                ' This event is important, because it's used to request the data that is need to create the internal panoramic data.
                AddHandler cell.PanoramicDataRequested, AddressOf cell_PanoramicDataRequested

                ' This event communicate with the Medical3D dll which contains all the internal panormaic calculations.
                AddHandler cell.Data3DRequested, AddressOf cell_Data3DRequested

                ' Dispose the internal data automatically if the use decided to delete the polygon.
                cell.AutoDisposeInternalData = True

                ' register the polygon click
                AddHandler cell.MPRPolygonClicked, AddressOf cell_MPRPolygonClicked

                CreatePanoramicCell(cell, polygon)
                polygon.Recalculate()
            End Sub

            Private Sub cell_Data3DRequested(ByVal sender As Object, ByVal e As MedicalViewerData3DRequestedEventArgs)
                e.Succeed = Medical3DEngine.Provide3DInformation(e)
            End Sub

            Private Sub CreatePanoramicCell(ByVal cellSource As MedicalViewerMultiCell, ByVal polygon As MedicalViewerMPRPolygon)
                ' create a new panoramic cell assigned to the polygon you created.
                Dim cell As MedicalViewerPanoramicCell = New MedicalViewerPanoramicCell(polygon)

                ' add some action, not necessary though.
                cell.AddAction(MedicalViewerActionType.WindowLevel)
                cell.AddAction(MedicalViewerActionType.Scale)
                cell.AddAction(MedicalViewerActionType.Offset)
                cell.AddAction(MedicalViewerActionType.Stack)
                cell.SetAction(MedicalViewerActionType.Offset, MedicalViewerMouseButtons.Right, MedicalViewerActionFlags.AllCells Or MedicalViewerActionFlags.RealTime)
                cell.SetAction(MedicalViewerActionType.Stack, MedicalViewerMouseButtons.Wheel, MedicalViewerActionFlags.Active)
                cell.SetAction(MedicalViewerActionType.Scale, MedicalViewerMouseButtons.Middle, MedicalViewerActionFlags.Active)

                ' Add the panoramic cell the viewer.
                _medicalViewer.Cells.Add(cell)

                ' Create a paraxial cell, and assign it to the polygon you just created.
                Dim paraxialCell As MedicalViewerParaxialCutCell = New MedicalViewerParaxialCutCell(polygon, 0)

                ' set the distance and the length of the paraxial cuts.
                paraxialCell.ParaxialDistance = 20
                paraxialCell.ParaxialLength = 200

                ' Add the paraxial cuts to the viewer.
                _medicalViewer.Cells.Add(paraxialCell)
            End Sub

            Private Sub cell_MPRPolygonClicked(ByVal sender As Object, ByVal e As MedicalViewerMPRPolygonClickedEventsArgs)
                Dim cell As MedicalViewerMultiCell = CType(sender, MedicalViewerMultiCell)
                Dim paraxialCell As MedicalViewerParaxialCutCell = CType(_medicalViewer.Cells(2), MedicalViewerParaxialCutCell)

                ' if the user clicks on other polygon lines, the paraxial cut will be assigned to that line
                If (e.Button = MouseButtons.Left) AndAlso e.Type = MedicalViewerMPRPolygonHitTest.Body Then
                    paraxialCell.PolygonLineIndex = e.Index
                End If
            End Sub


            Private Sub cell_PanoramicDataRequested(ByVal sender As Object, ByVal e As MedicalViewerPanoramicDataRequestedEventArgs)
                ' get the cell that requested the MPR data.
                Dim cell As MedicalViewerMultiCell = CType(sender, MedicalViewerMultiCell)

                ' instantiate a new raster codecs, which will be used to load the requested image.
                Dim _codecs As RasterCodecs = New RasterCodecs()

                ' the file name of the images loaded in the original cell.
                Dim fileName As String = CStr(_seriesManager.Stacks(0).Items(e.FrameIndex).Data)

                ' load the image and set it to e.Frame.
                e.Frame = _codecs.Load(fileName, 0, CodecsLoadByteOrder.BgrOrGrayOrRomm, e.FrameIndex + 1, e.FrameIndex + 1)
            End Sub

            Private Sub MedicalViewerLocalizer_FormClosing(ByVal sender As Object, ByVal e As FormClosingEventArgs)
            End Sub

            Private Sub cell_FramesRequested(ByVal sender As Object, ByVal e As MedicalViewerRequestedFramesInformationEventArgs)
                Dim cell As MedicalViewerMultiCell = CType(sender, MedicalViewerMultiCell)
                Dim _codecs As RasterCodecs = New RasterCodecs()
                Dim i As Integer
                Dim image As RasterImage
                Dim fileName As String

                If e.RequestedFramesIndexes.Length > 0 Then
                    fileName = CStr(_seriesManager.Stacks(0).Items(e.RequestedFramesIndexes(0)).Data)
                    image = _codecs.Load(fileName)
                Else
                    Return
                End If

                i = 1
                Do While i < e.RequestedFramesIndexes.Length
                    fileName = CStr(_seriesManager.Stacks(0).Items(e.RequestedFramesIndexes(i)).Data)
                    image.AddPage(_codecs.Load(fileName))
                    i += 1
                Loop

                cell.SetRequestedImage(image, e.RequestedFramesIndexes, MedicalViewerSetImageOptions.Insert)
            End Sub

            Public ReadOnly Property Viewer() As MedicalViewer
                Get
                    Return _medicalViewer
                End Get
            End Property
        End Class

        Private Function GetMedicalViewerMPRPolygonForm() As MedicalViewerMPRPolygonForm
            Dim form As MedicalViewerSeriesManagerFrom = New MedicalViewerSeriesManagerFrom()
            Dim output As MedicalViewerSeriesManager = form.LoadJamesHead()

            Return New MedicalViewerMPRPolygonForm(output)
        End Function

        ' This example changes the default window level value by decrease the width by 100. Then resets the images based on the new value.

        Public Sub MedicalViewerMPRPolygonExample()
            Dim myForm As MedicalViewerMPRPolygonForm = GetMedicalViewerMPRPolygonForm()
            Dim medicalViewer As MedicalViewer = myForm.Viewer

            myForm.ShowDialog()
        End Sub      using Leadtools;
      using Leadtools.Dicom;
      using Leadtools.Medical3D;
      using Leadtools.Codecs;
      using Leadtools.MedicalViewer;
      using Leadtools.ImageProcessing;
      using Leadtools.ImageProcessing.Core;
      using Leadtools.ImageProcessing.Color;
      using Leadtools.Annotations;

      class MedicalViewerMPRPolygonForm : Form
      {
         private MedicalViewer _medicalViewer;
         private MedicalViewerSeriesManager _seriesManager;
         void MedicalViewerLocalizer_SizeChanged(object sender, EventArgs e)
         {
            _medicalViewer.Size = new Size(this.ClientRectangle.Right, this.ClientRectangle.Bottom);
         }

         public MedicalViewerMPRPolygonForm(MedicalViewerSeriesManager output)
         {
            DicomEngine.Startup();
            RasterCodecs _codecs = new RasterCodecs();

            this.SizeChanged += new EventHandler(MedicalViewerLocalizer_SizeChanged);

            // Create the medical viewer and adjust the size and the location.
            _medicalViewer = new MedicalViewer(1, 2);
            _medicalViewer.Location = new Point(0, 0);
            _medicalViewer.Size = new Size(this.ClientRectangle.Right, this.ClientRectangle.Bottom);

            _seriesManager = output;

            MedicalViewerMultiCell cell = new MedicalViewerMultiCell(null, true, 1, 1);

            int index;
            int count = output.Stacks[0].Items.Count;
            CodecsImageInfo codecsInformation;

            MedicalViewerImageInformation[] imageInformation = new MedicalViewerImageInformation[count];

            for (index = 0; index < count; index++)
            {
               codecsInformation = _codecs.GetInformation((string)(output.Stacks[0].Items[index].Data), true);

               imageInformation[index] = new MedicalViewerImageInformation();
               imageInformation[index].ImageHeight = codecsInformation.Width;
               imageInformation[index].ImageWidth = codecsInformation.Width;
               imageInformation[index].XResolution = codecsInformation.XResolution;
               imageInformation[index].YResolution = codecsInformation.YResolution;
            }

            cell.FramesRequested += new EventHandler<MedicalViewerRequestedFramesInformationEventArgs>(cell_FramesRequested);
            FormClosing += new FormClosingEventHandler(MedicalViewerLocalizer_FormClosing);
            cell.EnableLowMemoryUsage(2, count, imageInformation);

            _medicalViewer.Cells.Add(cell);

            // add some actions that will be used to change the properties of the images inside the control.
            cell.AddAction(MedicalViewerActionType.WindowLevel);
            cell.AddAction(MedicalViewerActionType.Alpha);
            cell.AddAction(MedicalViewerActionType.Offset);

            // assign the added actions to a mouse button, meaning that when the user clicks and drags the mouse button, the associated action will be activated.
            cell.SetAction(MedicalViewerActionType.WindowLevel, MedicalViewerMouseButtons.Left, MedicalViewerActionFlags.Active);
            cell.SetAction(MedicalViewerActionType.Alpha, MedicalViewerMouseButtons.Middle, MedicalViewerActionFlags.Active);
            cell.SetAction(MedicalViewerActionType.Offset, MedicalViewerMouseButtons.Right, MedicalViewerActionFlags.Active);

            cell.ReferenceLine.Enabled = true;
            cell.ReferenceLine.Color = Color.Yellow;
            cell.ShowCellBoundaries = true;

            // adjust some properties of the cell and add some tags.
            _medicalViewer.Cells[0].SetTag(2, MedicalViewerTagAlignment.TopLeft, MedicalViewerTagType.UserData, "EX. ID 230-36-5448");
            _medicalViewer.Cells[0].SetTag(4, MedicalViewerTagAlignment.TopLeft, MedicalViewerTagType.Frame);
            _medicalViewer.Cells[0].SetTag(6, MedicalViewerTagAlignment.TopLeft, MedicalViewerTagType.Scale);
            _medicalViewer.Cells[0].SetTag(2, MedicalViewerTagAlignment.BottomLeft, MedicalViewerTagType.WindowLevelData);
            _medicalViewer.Cells[0].SetTag(1, MedicalViewerTagAlignment.BottomLeft, MedicalViewerTagType.FieldOfView);

            cell.PixelSpacing = output.Stacks[0].PixelSpacing;

            for (index = 0; index < count; index++)
            {
               cell.SetImagePosition(index, output.Stacks[0].Items[index].ImagePosition, (index == count - 1));
            }
            cell.ImageOrientation = output.Stacks[0].Items[0].ImageOrientationArray;
            cell.FrameOfReferenceUID = output.Stacks[0].Items[0].FrameOfReferenceUID;

            int width = cell.VirtualImage[cell.ActiveSubCell].Image.Width;
            int height = cell.VirtualImage[cell.ActiveSubCell].Image.Height;



            Controls.Add(_medicalViewer);
            _medicalViewer.Dock = DockStyle.Fill;
            DicomEngine.Shutdown();

            // create a new polygon
            MedicalViewerMPRPolygon polygon = new MedicalViewerMPRPolygon();

            // set some point, here we created a polygon that resembles a rectangle with a missing bottom line.
            polygon.Points.Add(new PointF(width * 1 / 4, height * 3 / 4));
            polygon.Points.Add(new PointF(width * 1 / 4, height * 1 / 4));
            polygon.Points.Add(new PointF(width * 3 / 4, height * 1 / 4));
            polygon.Points.Add(new PointF(width * 3 / 4, height * 3 / 4));


            // now add this polygon you prepared to the cell.
            cell.Polygons.Add(polygon);

            // This event is important, because it's used to request the data that is need to create the internal panoramic data.
            cell.PanoramicDataRequested += new EventHandler<MedicalViewerPanoramicDataRequestedEventArgs>(cell_PanoramicDataRequested);

            // This event communicate with the Medical3D dll which contains all the internal panormaic calculations.
            cell.Data3DRequested += new EventHandler<MedicalViewerData3DRequestedEventArgs>(cell_Data3DRequested);

            // Dispose the internal data automatically if the use decided to delete the polygon.
            cell.AutoDisposeInternalData = true;

            // register the polygon click
            cell.MPRPolygonClicked += new EventHandler<MedicalViewerMPRPolygonClickedEventsArgs>(cell_MPRPolygonClicked);

            CreatePanoramicCell(cell, polygon);
            polygon.Recalculate();
         }

         void cell_Data3DRequested(object sender, MedicalViewerData3DRequestedEventArgs e)
         {
            e.Succeed = Medical3DEngine.Provide3DInformation(e);
         }

         void CreatePanoramicCell(MedicalViewerMultiCell cellSource, MedicalViewerMPRPolygon polygon)
         {
            // create a new panoramic cell assigned to the polygon you created.
            MedicalViewerPanoramicCell cell = new MedicalViewerPanoramicCell(polygon);

            // add some action, not necessary though.
            cell.AddAction(MedicalViewerActionType.WindowLevel);
            cell.AddAction(MedicalViewerActionType.Scale);
            cell.AddAction(MedicalViewerActionType.Offset);
            cell.AddAction(MedicalViewerActionType.Stack);
            cell.SetAction(MedicalViewerActionType.Offset, MedicalViewerMouseButtons.Right, MedicalViewerActionFlags.AllCells | MedicalViewerActionFlags.RealTime);
            cell.SetAction(MedicalViewerActionType.Stack, MedicalViewerMouseButtons.Wheel, MedicalViewerActionFlags.Active);
            cell.SetAction(MedicalViewerActionType.Scale, MedicalViewerMouseButtons.Middle, MedicalViewerActionFlags.Active);

            // Add the panoramic cell the viewer.
            _medicalViewer.Cells.Add(cell);

            // Create a paraxial cell, and assign it to the polygon you just created.
            MedicalViewerParaxialCutCell paraxialCell = new MedicalViewerParaxialCutCell (polygon, 0);

            // set the distance and the length of the paraxial cuts.
            paraxialCell.ParaxialDistance = 20;
            paraxialCell.ParaxialLength = 200;

            // Add the paraxial cuts to the viewer.
            _medicalViewer.Cells.Add(paraxialCell);
         }

         void cell_MPRPolygonClicked(object sender, MedicalViewerMPRPolygonClickedEventsArgs e)
         {
            MedicalViewerMultiCell cell = (MedicalViewerMultiCell)sender;
            MedicalViewerParaxialCutCell paraxialCell = (MedicalViewerParaxialCutCell)_medicalViewer.Cells[2];

            // if the user clicks on other polygon lines, the paraxial cut will be assigned to that line
            if ((e.Button == MouseButtons.Left) && e.Type == MedicalViewerMPRPolygonHitTest.Body)
            {
               paraxialCell.PolygonLineIndex = e.Index;
            }
         }


         void cell_PanoramicDataRequested(object sender, MedicalViewerPanoramicDataRequestedEventArgs e)
         {
            // get the cell that requested the MPR data.
            MedicalViewerMultiCell cell = (MedicalViewerMultiCell)sender;

            // instantiate a new raster codecs, which will be used to load the requested image.
            RasterCodecs _codecs = new RasterCodecs();

            // the file name of the images loaded in the original cell.
            String fileName = (string)(_seriesManager.Stacks[0].Items[e.FrameIndex].Data);

            // load the image and set it to e.Frame.
            e.Frame = _codecs.Load(fileName, 0, CodecsLoadByteOrder.BgrOrGrayOrRomm, e.FrameIndex + 1, e.FrameIndex + 1);
         }

         void MedicalViewerLocalizer_FormClosing(object sender, FormClosingEventArgs e)
         {
         }

         void cell_FramesRequested(object sender, MedicalViewerRequestedFramesInformationEventArgs e)
         {
            MedicalViewerMultiCell cell = (MedicalViewerMultiCell)(sender);
            RasterCodecs _codecs = new RasterCodecs();
            int i;
            RasterImage image;
            string fileName;

            if (e.RequestedFramesIndexes.Length > 0)
            {
               fileName = (string)(_seriesManager.Stacks[0].Items[e.RequestedFramesIndexes[0]].Data);
               image = _codecs.Load(fileName);
            }
            else
               return;

            for (i = 1; i < e.RequestedFramesIndexes.Length; i++)
            {
               fileName = (string)(_seriesManager.Stacks[0].Items[e.RequestedFramesIndexes[i]].Data);
               image.AddPage(_codecs.Load(fileName));
            }

            cell.SetRequestedImage(image, e.RequestedFramesIndexes, MedicalViewerSetImageOptions.Insert);
         }

         public MedicalViewer Viewer
         {
            get { return _medicalViewer; }
         }
      }

      MedicalViewerMPRPolygonForm GetMedicalViewerMPRPolygonForm()
      {
         MedicalViewerSeriesManagerFrom form = new MedicalViewerSeriesManagerFrom();
         MedicalViewerSeriesManager output = form.LoadJamesHead();

         return new MedicalViewerMPRPolygonForm(output);
      }

      // This example changes the default window level value by decrease the width by 100. Then resets the images based on the new value.

      public void MedicalViewerMPRPolygonExample()
      {
         MedicalViewerMPRPolygonForm myForm = GetMedicalViewerMPRPolygonForm();
         MedicalViewer medicalViewer = myForm.Viewer;

         myForm.ShowDialog();
      }

      using Leadtools;
      using Leadtools.Dicom;
      using Leadtools.Medical3D;
      using Leadtools.Codecs;
      using Leadtools.MedicalViewer;
      using Leadtools.ImageProcessing;
      using Leadtools.ImageProcessing.Core;
      using Leadtools.ImageProcessing.Color;
      using Leadtools.Annotations;

      class MedicalViewerMPRPolygonForm : Form
      {
         private MedicalViewer _medicalViewer;
         private MedicalViewerSeriesManager _seriesManager;
         void MedicalViewerLocalizer_SizeChanged(object sender, EventArgs e)
         {
            _medicalViewer.Size = new Size(this.ClientRectangle.Right, this.ClientRectangle.Bottom);
         }

         public MedicalViewerMPRPolygonForm(MedicalViewerSeriesManager output)
         {
            DicomEngine.Startup();
            RasterCodecs _codecs = new RasterCodecs();

            this.SizeChanged += new EventHandler(MedicalViewerLocalizer_SizeChanged);

            // Create the medical viewer and adjust the size and the location.
            _medicalViewer = new MedicalViewer(1, 2);
            _medicalViewer.Location = new Point(0, 0);
            _medicalViewer.Size = new Size(this.ClientRectangle.Right, this.ClientRectangle.Bottom);

            _seriesManager = output;

            MedicalViewerMultiCell cell = new MedicalViewerMultiCell(null, true, 1, 1);

            int index;
            int count = output.Stacks[0].Items.Count;
            CodecsImageInfo codecsInformation;

            MedicalViewerImageInformation[] imageInformation = new MedicalViewerImageInformation[count];

            for (index = 0; index < count; index++)
            {
               codecsInformation = _codecs.GetInformation((string)(output.Stacks[0].Items[index].Data), true);

               imageInformation[index] = new MedicalViewerImageInformation();
               imageInformation[index].ImageHeight = codecsInformation.Width;
               imageInformation[index].ImageWidth = codecsInformation.Width;
               imageInformation[index].XResolution = codecsInformation.XResolution;
               imageInformation[index].YResolution = codecsInformation.YResolution;
            }

            cell.FramesRequested += new EventHandler<MedicalViewerRequestedFramesInformationEventArgs>(cell_FramesRequested);
            FormClosing += new FormClosingEventHandler(MedicalViewerLocalizer_FormClosing);
            cell.EnableLowMemoryUsage(2, count, imageInformation);

            _medicalViewer.Cells.Add(cell);

            // add some actions that will be used to change the properties of the images inside the control.
            cell.AddAction(MedicalViewerActionType.WindowLevel);
            cell.AddAction(MedicalViewerActionType.Alpha);
            cell.AddAction(MedicalViewerActionType.Offset);

            // assign the added actions to a mouse button, meaning that when the user clicks and drags the mouse button, the associated action will be activated.
            cell.SetAction(MedicalViewerActionType.WindowLevel, MedicalViewerMouseButtons.Left, MedicalViewerActionFlags.Active);
            cell.SetAction(MedicalViewerActionType.Alpha, MedicalViewerMouseButtons.Middle, MedicalViewerActionFlags.Active);
            cell.SetAction(MedicalViewerActionType.Offset, MedicalViewerMouseButtons.Right, MedicalViewerActionFlags.Active);

            cell.ReferenceLine.Enabled = true;
            cell.ReferenceLine.Color = Color.Yellow;
            cell.ShowCellBoundaries = true;

            // adjust some properties of the cell and add some tags.
            _medicalViewer.Cells[0].SetTag(2, MedicalViewerTagAlignment.TopLeft, MedicalViewerTagType.UserData, "EX. ID 230-36-5448");
            _medicalViewer.Cells[0].SetTag(4, MedicalViewerTagAlignment.TopLeft, MedicalViewerTagType.Frame);
            _medicalViewer.Cells[0].SetTag(6, MedicalViewerTagAlignment.TopLeft, MedicalViewerTagType.Scale);
            _medicalViewer.Cells[0].SetTag(2, MedicalViewerTagAlignment.BottomLeft, MedicalViewerTagType.WindowLevelData);
            _medicalViewer.Cells[0].SetTag(1, MedicalViewerTagAlignment.BottomLeft, MedicalViewerTagType.FieldOfView);

            cell.PixelSpacing = output.Stacks[0].PixelSpacing;

            for (index = 0; index < count; index++)
            {
               cell.SetImagePosition(index, output.Stacks[0].Items[index].ImagePosition, (index == count - 1));
            }
            cell.ImageOrientation = output.Stacks[0].Items[0].ImageOrientationArray;
            cell.FrameOfReferenceUID = output.Stacks[0].Items[0].FrameOfReferenceUID;

            int width = cell.VirtualImage[cell.ActiveSubCell].Image.Width;
            int height = cell.VirtualImage[cell.ActiveSubCell].Image.Height;



            Controls.Add(_medicalViewer);
            _medicalViewer.Dock = DockStyle.Fill;
            DicomEngine.Shutdown();

            // create a new polygon
            MedicalViewerMPRPolygon polygon = new MedicalViewerMPRPolygon();

            // set some point, here we created a polygon that resembles a rectangle with a missing bottom line.
            polygon.Points.Add(new PointF(width * 1 / 4, height * 3 / 4));
            polygon.Points.Add(new PointF(width * 1 / 4, height * 1 / 4));
            polygon.Points.Add(new PointF(width * 3 / 4, height * 1 / 4));
            polygon.Points.Add(new PointF(width * 3 / 4, height * 3 / 4));


            // now add this polygon you prepared to the cell.
            cell.Polygons.Add(polygon);

            // This event is important, because it's used to request the data that is need to create the internal panoramic data.
            cell.PanoramicDataRequested += new EventHandler<MedicalViewerPanoramicDataRequestedEventArgs>(cell_PanoramicDataRequested);

            // This event communicate with the Medical3D dll which contains all the internal panormaic calculations.
            cell.Data3DRequested += new EventHandler<MedicalViewerData3DRequestedEventArgs>(cell_Data3DRequested);

            // Dispose the internal data automatically if the use decided to delete the polygon.
            cell.AutoDisposeInternalData = true;

            // register the polygon click
            cell.MPRPolygonClicked += new EventHandler<MedicalViewerMPRPolygonClickedEventsArgs>(cell_MPRPolygonClicked);

            CreatePanoramicCell(cell, polygon);
            polygon.Recalculate();
         }

         void cell_Data3DRequested(object sender, MedicalViewerData3DRequestedEventArgs e)
         {
            e.Succeed = Medical3DEngine.Provide3DInformation(e);
         }

         void CreatePanoramicCell(MedicalViewerMultiCell cellSource, MedicalViewerMPRPolygon polygon)
         {
            // create a new panoramic cell assigned to the polygon you created.
            MedicalViewerPanoramicCell cell = new MedicalViewerPanoramicCell(polygon);

            // add some action, not necessary though.
            cell.AddAction(MedicalViewerActionType.WindowLevel);
            cell.AddAction(MedicalViewerActionType.Scale);
            cell.AddAction(MedicalViewerActionType.Offset);
            cell.AddAction(MedicalViewerActionType.Stack);
            cell.SetAction(MedicalViewerActionType.Offset, MedicalViewerMouseButtons.Right, MedicalViewerActionFlags.AllCells | MedicalViewerActionFlags.RealTime);
            cell.SetAction(MedicalViewerActionType.Stack, MedicalViewerMouseButtons.Wheel, MedicalViewerActionFlags.Active);
            cell.SetAction(MedicalViewerActionType.Scale, MedicalViewerMouseButtons.Middle, MedicalViewerActionFlags.Active);

            // Add the panoramic cell the viewer.
            _medicalViewer.Cells.Add(cell);

            // Create a paraxial cell, and assign it to the polygon you just created.
            MedicalViewerParaxialCutCell paraxialCell = new MedicalViewerParaxialCutCell (polygon, 0);

            // set the distance and the length of the paraxial cuts.
            paraxialCell.ParaxialDistance = 20;
            paraxialCell.ParaxialLength = 200;

            // Add the paraxial cuts to the viewer.
            _medicalViewer.Cells.Add(paraxialCell);
         }

         void cell_MPRPolygonClicked(object sender, MedicalViewerMPRPolygonClickedEventsArgs e)
         {
            MedicalViewerMultiCell cell = (MedicalViewerMultiCell)sender;
            MedicalViewerParaxialCutCell paraxialCell = (MedicalViewerParaxialCutCell)_medicalViewer.Cells[2];

            // if the user clicks on other polygon lines, the paraxial cut will be assigned to that line
            if ((e.Button == MouseButtons.Left) && e.Type == MedicalViewerMPRPolygonHitTest.Body)
            {
               paraxialCell.PolygonLineIndex = e.Index;
            }
         }


         void cell_PanoramicDataRequested(object sender, MedicalViewerPanoramicDataRequestedEventArgs e)
         {
            // get the cell that requested the MPR data.
            MedicalViewerMultiCell cell = (MedicalViewerMultiCell)sender;

            // instantiate a new raster codecs, which will be used to load the requested image.
            RasterCodecs _codecs = new RasterCodecs();

            // the file name of the images loaded in the original cell.
            String fileName = (string)(_seriesManager.Stacks[0].Items[e.FrameIndex].Data);

            // load the image and set it to e.Frame.
            e.Frame = _codecs.Load(fileName, 0, CodecsLoadByteOrder.BgrOrGrayOrRomm, e.FrameIndex + 1, e.FrameIndex + 1);
         }

         void MedicalViewerLocalizer_FormClosing(object sender, FormClosingEventArgs e)
         {
         }

         void cell_FramesRequested(object sender, MedicalViewerRequestedFramesInformationEventArgs e)
         {
            MedicalViewerMultiCell cell = (MedicalViewerMultiCell)(sender);
            RasterCodecs _codecs = new RasterCodecs();
            int i;
            RasterImage image;
            string fileName;

            if (e.RequestedFramesIndexes.Length > 0)
            {
               fileName = (string)(_seriesManager.Stacks[0].Items[e.RequestedFramesIndexes[0]].Data);
               image = _codecs.Load(fileName);
            }
            else
               return;

            for (i = 1; i < e.RequestedFramesIndexes.Length; i++)
            {
               fileName = (string)(_seriesManager.Stacks[0].Items[e.RequestedFramesIndexes[i]].Data);
               image.AddPage(_codecs.Load(fileName));
            }

            cell.SetRequestedImage(image, e.RequestedFramesIndexes, MedicalViewerSetImageOptions.Insert);
         }

         public MedicalViewer Viewer
         {
            get { return _medicalViewer; }
         }
      }

      MedicalViewerMPRPolygonForm GetMedicalViewerMPRPolygonForm()
      {
         MedicalViewerSeriesManagerFrom form = new MedicalViewerSeriesManagerFrom();
         MedicalViewerSeriesManager output = form.LoadJamesHead();

         return new MedicalViewerMPRPolygonForm(output);
      }

      // This example changes the default window level value by decrease the width by 100. Then resets the images based on the new value.

      public void MedicalViewerMPRPolygonExample()
      {
         MedicalViewerMPRPolygonForm myForm = GetMedicalViewerMPRPolygonForm();
         MedicalViewer medicalViewer = myForm.Viewer;

         myForm.ShowDialog();
      }

Requirements

Target Platforms

Reference

MedicalViewerPanoramicCell Members
Leadtools.MedicalViewer Namespace
