Tutorial: Sample database for the LEAD Storage Server

Step 1: Configure the LEAD Storage Server with the shipping database schema

Install the LEADTOOLS toolkit
Run the CSPacsDatabaseConfigurationDemo_Original.exe to create the database (the shipping schema)
Run the CSPacsConfigDemo_Original.exe to create the PACS Services and configure the clients
If you will be connecting the sample database to the LEAD HTML5 Medical Viewer (the LEAD HTML5 Medical Viewer Custom Database tutorial), then run the WebViewerConfiguration_Original.exe to configure the LEAD HTML5 Medical Viewer. If you are not doing this, then you can skip this step.

Step 2: Create the custom storage data access layer, and configuration assemblies

Start Visual Studio
Open and compile the project My.Medical.Storage.DataAccessLayer project.
The default location is C:\LEADTOOLS 18\Examples\PACSFramework \CS \Tutorials\My.Medical.Storage.DataAccessLayer
Note: If you are using earlier versions of SQL Server 2008 (i.e. SQL Server 2005), there is no support for the data type SqlDbType.Date. In this case, you have choices:

1. Open MyDataSet.Designer.cs, and replace all instances of SqlDbType.Date with SqlDbType.DateTime

2. Follow the steps in Strongly Typed DataSet Class and XML Schema to generate a new instance of MyDataSet.Designer.cs.

Open and compile the project My.Medical.Storage.Configuration project.
The default location is C:\LEADTOOLS 18\Examples\PACSFramework \CS\Tutorials\My.Medical.Storage.Configuration
Compiling the projects will generate two assemblies:
- My.Medical.Storage.DataAccessLayer.dll
- My.Medical.Storage.Configuration.dll
Copy My.Medical.Storage.DataAccessLayer.dll to LEAD Installation BIN folder
- The default BIN installation location is C:\LEADTOOLS 18\Bin\Dotnet4\Win32
Copy My.Medical.Storage.Configuration.dll to configuration folder
- {LEAD Installation BIN}/{ServiceName}/ Configuration
- The default is C:\LEADTOOLS 18\Bin\Dotnet4\Win32\L18_PACS_SCP32\Configuration

Step 3: Create the sample database

This tutorial uses Microsoft SQL Server 2008 and SQL Server Management Studio. You can also use SQL Compact Edition, which is installed by default when you install Visual Studio. If you use SQL Compact Edition, you can download SQL Server Management Studio Express (a free download from Microsoft).

Start Microsoft SQL Server Management Studio
Click New Query
Paste the script below in the New Query window
Click Execute to generate the database.

Script to generate the tutorial database for SQL Server 2008

USE [master]

/****** Object: Database [MyDicomDb] Script Date: 07/15/2013 13:02:13 ******/

CREATE DATABASE [MyDicomDb]

ALTER DATABASE [MyDicomDb] SET COMPATIBILITY_LEVEL = 100

IF (1 = FULLTEXTSERVICEPROPERTY('IsFullTextInstalled'))

begin

EXEC [MyDicomDb].[dbo].[sp_fulltext_database] @action = 'enable'

end

ALTER DATABASE [MyDicomDb] SET ANSI_NULL_DEFAULT OFF

ALTER DATABASE [MyDicomDb] SET ANSI_NULLS OFF

ALTER DATABASE [MyDicomDb] SET ANSI_PADDING OFF

ALTER DATABASE [MyDicomDb] SET ANSI_WARNINGS OFF

ALTER DATABASE [MyDicomDb] SET ARITHABORT OFF

ALTER DATABASE [MyDicomDb] SET AUTO_CLOSE OFF

ALTER DATABASE [MyDicomDb] SET AUTO_CREATE_STATISTICS ON

ALTER DATABASE [MyDicomDb] SET AUTO_SHRINK OFF

ALTER DATABASE [MyDicomDb] SET AUTO_UPDATE_STATISTICS ON

ALTER DATABASE [MyDicomDb] SET CURSOR_CLOSE_ON_COMMIT OFF

ALTER DATABASE [MyDicomDb] SET CURSOR_DEFAULT GLOBAL

ALTER DATABASE [MyDicomDb] SET CONCAT_NULL_YIELDS_NULL OFF

ALTER DATABASE [MyDicomDb] SET NUMERIC_ROUNDABORT OFF

ALTER DATABASE [MyDicomDb] SET QUOTED_IDENTIFIER OFF

ALTER DATABASE [MyDicomDb] SET RECURSIVE_TRIGGERS OFF

ALTER DATABASE [MyDicomDb] SET DISABLE_BROKER

ALTER DATABASE [MyDicomDb] SET AUTO_UPDATE_STATISTICS_ASYNC OFF

ALTER DATABASE [MyDicomDb] SET DATE_CORRELATION_OPTIMIZATION OFF

ALTER DATABASE [MyDicomDb] SET TRUSTWORTHY OFF

ALTER DATABASE [MyDicomDb] SET ALLOW_SNAPSHOT_ISOLATION OFF

ALTER DATABASE [MyDicomDb] SET PARAMETERIZATION SIMPLE

ALTER DATABASE [MyDicomDb] SET READ_COMMITTED_SNAPSHOT OFF

ALTER DATABASE [MyDicomDb] SET HONOR_BROKER_PRIORITY OFF

ALTER DATABASE [MyDicomDb] SET READ_WRITE

ALTER DATABASE [MyDicomDb] SET RECOVERY FULL

ALTER DATABASE [MyDicomDb] SET MULTI_USER

ALTER DATABASE [MyDicomDb] SET PAGE_VERIFY CHECKSUM

ALTER DATABASE [MyDicomDb] SET DB_CHAINING OFF

EXEC sys.sp_db_vardecimal_storage_format N'MyDicomDb', N'ON'

USE [MyDicomDb]

/****** Object: Table [dbo].[MyPatientTable] Script Date: 07/01/2013 17:44:15 ******/

SET ANSI_NULLS ON

SET QUOTED_IDENTIFIER ON

CREATE TABLE [dbo].[MyPatientTable](

[PatientId] [int] IDENTITY(1,1) NOT NULL,

[PatientIdentification] [nvarchar](70) NOT NULL,

[PatientName] [nvarchar](max) NOT NULL,

[PatientBirthday] [date] NULL,

[PatientSex] [nvarchar](50) NULL,

[PatientComments] [nvarchar](200) NULL,

CONSTRAINT [PK_Patient] PRIMARY KEY CLUSTERED

(

[PatientId] ASC

)WITH (PAD_INDEX = OFF, STATISTICS_NORECOMPUTE = OFF, IGNORE_DUP_KEY = OFF, ALLOW_ROW_LOCKS = ON, ALLOW_PAGE_LOCKS = ON) ON [PRIMARY],

CONSTRAINT [uc_PatientIdentification] UNIQUE NONCLUSTERED

(

[PatientIdentification] ASC

)WITH (PAD_INDEX = OFF, STATISTICS_NORECOMPUTE = OFF, IGNORE_DUP_KEY = OFF, ALLOW_ROW_LOCKS = ON, ALLOW_PAGE_LOCKS = ON) ON [PRIMARY]

) ON [PRIMARY]

/****** Object: Table [dbo].[MyStudyTable] Script Date: 07/01/2013 17:44:15 ******/

SET ANSI_NULLS ON

SET QUOTED_IDENTIFIER ON

CREATE TABLE [dbo].[MyStudyTable](

[StudyId] [int] IDENTITY(1,1) NOT NULL,

[StudyPatientId] [int] NOT NULL,

[StudyStudyInstanceUID] [nvarchar](64) NOT NULL,

[StudyStudyDate] [date] NULL,

[StudyAccessionNumber] [nvarchar](64) NULL,

[StudyStudyDescription] [nvarchar](256) NULL,

[StudyReferringPhysiciansName] [nvarchar](50) NULL,

[StudyStudyId] [nvarchar](16) NULL,

CONSTRAINT [PK_Study] PRIMARY KEY CLUSTERED

(

[StudyId] ASC

)WITH (PAD_INDEX = OFF, STATISTICS_NORECOMPUTE = OFF, IGNORE_DUP_KEY = OFF, ALLOW_ROW_LOCKS = ON, ALLOW_PAGE_LOCKS = ON) ON [PRIMARY],

CONSTRAINT [uc_StudyStudyInstanceUID] UNIQUE NONCLUSTERED

(

[StudyStudyInstanceUID] ASC

)WITH (PAD_INDEX = OFF, STATISTICS_NORECOMPUTE = OFF, IGNORE_DUP_KEY = OFF, ALLOW_ROW_LOCKS = ON, ALLOW_PAGE_LOCKS = ON) ON [PRIMARY]

) ON [PRIMARY]

/****** Object: Table [dbo].[MySeriesTable] Script Date: 07/01/2013 17:44:15 ******/

SET ANSI_NULLS ON

SET QUOTED_IDENTIFIER ON

CREATE TABLE [dbo].[MySeriesTable](

[SeriesId] [int] IDENTITY(1,1) NOT NULL,

[SeriesStudyId] [int] NOT NULL,

[SeriesSeriesInstanceUID] [nvarchar](64) NOT NULL,

[SeriesBodyPartExamined] [nvarchar](16) NULL,

[SeriesSeriesNumber] [int] NULL,

[SeriesSeriesDescription] [nvarchar](300) NULL,

[SeriesSeriesDate] [date] NULL,

[SeriesModality] [nvarchar](50) NULL,

CONSTRAINT [PK_Series] PRIMARY KEY CLUSTERED

(

[SeriesId] ASC

)WITH (PAD_INDEX = OFF, STATISTICS_NORECOMPUTE = OFF, IGNORE_DUP_KEY = OFF, ALLOW_ROW_LOCKS = ON, ALLOW_PAGE_LOCKS = ON) ON [PRIMARY],

CONSTRAINT [uc_SerieSeriesInstanceUID] UNIQUE NONCLUSTERED

(

[SeriesSeriesInstanceUID] ASC,

[SeriesStudyId] ASC

)WITH (PAD_INDEX = OFF, STATISTICS_NORECOMPUTE = OFF, IGNORE_DUP_KEY = OFF, ALLOW_ROW_LOCKS = ON, ALLOW_PAGE_LOCKS = ON) ON [PRIMARY]

) ON [PRIMARY]

/****** Object: Table [dbo].[MyInstanceTable] Script Date: 07/01/2013 17:44:15 ******/

SET ANSI_NULLS ON

SET QUOTED_IDENTIFIER ON

CREATE TABLE [dbo].[MyInstanceTable](

[ImageId] [bigint] IDENTITY(1,1) NOT NULL,

[ImageSeriesId] [int] NOT NULL,

[SOPInstanceUID] [nvarchar](64) NOT NULL,

[ImageImageNumber] [int] NOT NULL,

[ImageLastStoreDate] [date] NULL,

[ImageFilename] [nvarchar](400) NOT NULL,

[ImageUniqueSOPClassUID] [nvarchar](64) NULL,

[ImageRows] [bigint] NULL,

[ImageColumns] [bigint] NULL,

[ImageBitsAllocated] [bigint] NULL,

CONSTRAINT [PK_Image] PRIMARY KEY CLUSTERED

(

[ImageId] ASC

)WITH (PAD_INDEX = OFF, STATISTICS_NORECOMPUTE = OFF, IGNORE_DUP_KEY = OFF, ALLOW_ROW_LOCKS = ON, ALLOW_PAGE_LOCKS = ON) ON [PRIMARY],

CONSTRAINT [IX_Image_SOPInstanceUID] UNIQUE NONCLUSTERED

(

[SOPInstanceUID] ASC

)WITH (PAD_INDEX = OFF, STATISTICS_NORECOMPUTE = OFF, IGNORE_DUP_KEY = OFF, ALLOW_ROW_LOCKS = ON, ALLOW_PAGE_LOCKS = ON) ON [PRIMARY]

) ON [PRIMARY]

/****** Object: ForeignKey [FK_DImage_Series] Script Date: 07/01/2013 17:44:15 ******/

ALTER TABLE [dbo].[MyInstanceTable] WITH CHECK ADD CONSTRAINT [FK_DImage_Series] FOREIGN KEY([ImageSeriesId])

REFERENCES [dbo].[MySeriesTable] ([SeriesId])

ALTER TABLE [dbo].[MyInstanceTable] CHECK CONSTRAINT [FK_DImage_Series]

/****** Object: ForeignKey [FK_Series_Study] Script Date: 07/01/2013 17:44:15 ******/

ALTER TABLE [dbo].[MySeriesTable] WITH CHECK ADD CONSTRAINT [FK_Series_Study] FOREIGN KEY([SeriesStudyId])

REFERENCES [dbo].[MyStudyTable] ([StudyId])

ALTER TABLE [dbo].[MySeriesTable] CHECK CONSTRAINT [FK_Series_Study]

/****** Object: ForeignKey [FK_Study_Patient] Script Date: 07/01/2013 17:44:15 ******/

ALTER TABLE [dbo].[MyStudyTable] WITH CHECK ADD CONSTRAINT [FK_Study_Patient] FOREIGN KEY([StudyPatientId])

REFERENCES [dbo].[MyPatientTable] ([PatientId])

ALTER TABLE [dbo].[MyStudyTable] CHECK CONSTRAINT [FK_Study_Patient]

Note:

For earlier version of SQL Server (i.e. SQL Server 2005), there is no support for the data type SqlDbType.Date.

If you are using SQL Server 2005, you can use the following script to generate the database, which instead uses the data type SqlDbType.DateTime.

Script to generate the tutorial database for SQL Server 2005

USE [master]

/****** Object: Database [MyDicomDb] Script Date: 08/12/2013 10:39:18 ******/

CREATE DATABASE [MyDicomDb]

IF (1 = FULLTEXTSERVICEPROPERTY('IsFullTextInstalled'))

begin

EXEC [MyDicomDb].[dbo].[sp_fulltext_database] @action = 'enable'

end

ALTER DATABASE [MyDicomDb] SET ANSI_NULL_DEFAULT OFF

ALTER DATABASE [MyDicomDb] SET ANSI_NULLS OFF

ALTER DATABASE [MyDicomDb] SET ANSI_PADDING OFF

ALTER DATABASE [MyDicomDb] SET ANSI_WARNINGS OFF

ALTER DATABASE [MyDicomDb] SET ARITHABORT OFF

ALTER DATABASE [MyDicomDb] SET AUTO_CLOSE OFF

ALTER DATABASE [MyDicomDb] SET AUTO_CREATE_STATISTICS ON

ALTER DATABASE [MyDicomDb] SET AUTO_SHRINK OFF

ALTER DATABASE [MyDicomDb] SET AUTO_UPDATE_STATISTICS ON

ALTER DATABASE [MyDicomDb] SET CURSOR_CLOSE_ON_COMMIT OFF

ALTER DATABASE [MyDicomDb] SET CURSOR_DEFAULT GLOBAL

ALTER DATABASE [MyDicomDb] SET CONCAT_NULL_YIELDS_NULL OFF

ALTER DATABASE [MyDicomDb] SET NUMERIC_ROUNDABORT OFF

ALTER DATABASE [MyDicomDb] SET QUOTED_IDENTIFIER OFF

ALTER DATABASE [MyDicomDb] SET RECURSIVE_TRIGGERS OFF

ALTER DATABASE [MyDicomDb] SET DISABLE_BROKER

ALTER DATABASE [MyDicomDb] SET AUTO_UPDATE_STATISTICS_ASYNC OFF

ALTER DATABASE [MyDicomDb] SET DATE_CORRELATION_OPTIMIZATION OFF

ALTER DATABASE [MyDicomDb] SET TRUSTWORTHY OFF

ALTER DATABASE [MyDicomDb] SET ALLOW_SNAPSHOT_ISOLATION OFF

ALTER DATABASE [MyDicomDb] SET PARAMETERIZATION SIMPLE

ALTER DATABASE [MyDicomDb] SET READ_COMMITTED_SNAPSHOT OFF

ALTER DATABASE [MyDicomDb] SET READ_WRITE

ALTER DATABASE [MyDicomDb] SET RECOVERY FULL

ALTER DATABASE [MyDicomDb] SET MULTI_USER

ALTER DATABASE [MyDicomDb] SET PAGE_VERIFY CHECKSUM

ALTER DATABASE [MyDicomDb] SET DB_CHAINING OFF

USE [MyDicomDb]

/****** Object: Table [dbo].[MyPatientTable] Script Date: 08/12/2013 10:39:19 ******/

SET ANSI_NULLS ON

SET QUOTED_IDENTIFIER ON

CREATE TABLE [dbo].[MyPatientTable](

[PatientId] [int] IDENTITY(1,1) NOT NULL,

[PatientIdentification] [nvarchar](70) NOT NULL,

[PatientName] [nvarchar](max) NOT NULL,

[PatientBirthday] [datetime] NULL,

[PatientSex] [nvarchar](50) NULL,

[PatientComments] [nvarchar](200) NULL,

CONSTRAINT [PK_Patient] PRIMARY KEY CLUSTERED

(

[PatientId] ASC

)WITH (PAD_INDEX = OFF, STATISTICS_NORECOMPUTE = OFF, IGNORE_DUP_KEY = OFF, ALLOW_ROW_LOCKS = ON, ALLOW_PAGE_LOCKS = ON) ON [PRIMARY],

CONSTRAINT [uc_PatientIdentification] UNIQUE NONCLUSTERED

(

[PatientIdentification] ASC

)WITH (PAD_INDEX = OFF, STATISTICS_NORECOMPUTE = OFF, IGNORE_DUP_KEY = OFF, ALLOW_ROW_LOCKS = ON, ALLOW_PAGE_LOCKS = ON) ON [PRIMARY]

) ON [PRIMARY]

/****** Object: Table [dbo].[MyStudyTable] Script Date: 08/12/2013 10:39:19 ******/

SET ANSI_NULLS ON

SET QUOTED_IDENTIFIER ON

CREATE TABLE [dbo].[MyStudyTable](

[StudyId] [int] IDENTITY(1,1) NOT NULL,

[StudyPatientId] [int] NOT NULL,

[StudyStudyInstanceUID] [nvarchar](64) NOT NULL,

[StudyStudyDate] [datetime] NULL,

[StudyAccessionNumber] [nvarchar](64) NULL,

[StudyStudyDescription] [nvarchar](256) NULL,

[StudyReferringPhysiciansName] [nvarchar](50) NULL,

[StudyStudyId] [nvarchar](16) NULL,

CONSTRAINT [PK_Study] PRIMARY KEY CLUSTERED

(

[StudyId] ASC

)WITH (PAD_INDEX = OFF, STATISTICS_NORECOMPUTE = OFF, IGNORE_DUP_KEY = OFF, ALLOW_ROW_LOCKS = ON, ALLOW_PAGE_LOCKS = ON) ON [PRIMARY],

CONSTRAINT [uc_StudyStudyInstanceUID] UNIQUE NONCLUSTERED

(

[StudyStudyInstanceUID] ASC

)WITH (PAD_INDEX = OFF, STATISTICS_NORECOMPUTE = OFF, IGNORE_DUP_KEY = OFF, ALLOW_ROW_LOCKS = ON, ALLOW_PAGE_LOCKS = ON) ON [PRIMARY]

) ON [PRIMARY]

/****** Object: Table [dbo].[MySeriesTable] Script Date: 08/12/2013 10:39:19 ******/

SET ANSI_NULLS ON

SET QUOTED_IDENTIFIER ON

CREATE TABLE [dbo].[MySeriesTable](

[SeriesId] [int] IDENTITY(1,1) NOT NULL,

[SeriesStudyId] [int] NOT NULL,

[SeriesSeriesInstanceUID] [nvarchar](64) NOT NULL,

[SeriesBodyPartExamined] [nvarchar](16) NULL,

[SeriesSeriesNumber] [int] NULL,

[SeriesSeriesDescription] [nvarchar](300) NULL,

[SeriesSeriesDate] [datetime] NULL,

[SeriesModality] [nvarchar](50) NULL,

CONSTRAINT [PK_Series] PRIMARY KEY CLUSTERED

(

[SeriesId] ASC

)WITH (PAD_INDEX = OFF, STATISTICS_NORECOMPUTE = OFF, IGNORE_DUP_KEY = OFF, ALLOW_ROW_LOCKS = ON, ALLOW_PAGE_LOCKS = ON) ON [PRIMARY],

CONSTRAINT [uc_SerieSeriesInstanceUID] UNIQUE NONCLUSTERED

(

[SeriesSeriesInstanceUID] ASC,

[SeriesStudyId] ASC

)WITH (PAD_INDEX = OFF, STATISTICS_NORECOMPUTE = OFF, IGNORE_DUP_KEY = OFF, ALLOW_ROW_LOCKS = ON, ALLOW_PAGE_LOCKS = ON) ON [PRIMARY]

) ON [PRIMARY]

/****** Object: Table [dbo].[MyInstanceTable] Script Date: 08/12/2013 10:39:19 ******/

SET ANSI_NULLS ON

SET QUOTED_IDENTIFIER ON

CREATE TABLE [dbo].[MyInstanceTable](

[ImageId] [bigint] IDENTITY(1,1) NOT NULL,

[ImageSeriesId] [int] NOT NULL,

[SOPInstanceUID] [nvarchar](64) NOT NULL,

[ImageImageNumber] [int] NOT NULL,

[ImageLastStoreDate] [datetime] NULL,

[ImageFilename] [nvarchar](400) NOT NULL,

[ImageUniqueSOPClassUID] [nvarchar](64) NULL,

[ImageRows] [bigint] NULL,

[ImageColumns] [bigint] NULL,

[ImageBitsAllocated] [bigint] NULL,

CONSTRAINT [PK_Image] PRIMARY KEY CLUSTERED

(

[ImageId] ASC

)WITH (PAD_INDEX = OFF, STATISTICS_NORECOMPUTE = OFF, IGNORE_DUP_KEY = OFF, ALLOW_ROW_LOCKS = ON, ALLOW_PAGE_LOCKS = ON) ON [PRIMARY],

CONSTRAINT [IX_Image_SOPInstanceUID] UNIQUE NONCLUSTERED

(

[SOPInstanceUID] ASC

)WITH (PAD_INDEX = OFF, STATISTICS_NORECOMPUTE = OFF, IGNORE_DUP_KEY = OFF, ALLOW_ROW_LOCKS = ON, ALLOW_PAGE_LOCKS = ON) ON [PRIMARY]

) ON [PRIMARY]

/****** Object: ForeignKey [FK_Study_Patient] Script Date: 08/12/2013 10:39:19 ******/

ALTER TABLE [dbo].[MyStudyTable] WITH CHECK ADD CONSTRAINT [FK_Study_Patient] FOREIGN KEY([StudyPatientId])

REFERENCES [dbo].[MyPatientTable] ([PatientId])

ALTER TABLE [dbo].[MyStudyTable] CHECK CONSTRAINT [FK_Study_Patient]

/****** Object: ForeignKey [FK_Series_Study] Script Date: 08/12/2013 10:39:19 ******/

ALTER TABLE [dbo].[MySeriesTable] WITH CHECK ADD CONSTRAINT [FK_Series_Study] FOREIGN KEY([SeriesStudyId])

REFERENCES [dbo].[MyStudyTable] ([StudyId])

ALTER TABLE [dbo].[MySeriesTable] CHECK CONSTRAINT [FK_Series_Study]

/****** Object: ForeignKey [FK_DImage_Series] Script Date: 08/12/2013 10:39:19 ******/

ALTER TABLE [dbo].[MyInstanceTable] WITH CHECK ADD CONSTRAINT [FK_DImage_Series] FOREIGN KEY([ImageSeriesId])

REFERENCES [dbo].[MySeriesTable] ([SeriesId])

ALTER TABLE [dbo].[MyInstanceTable] CHECK CONSTRAINT [FK_DImage_Series]

Step 4: Modify GlobalPacs.config to use the New Database

Make a backup copy of the globalPacs.config file. Rename the back copy globalPacs_original.config.
- The globalPacs.config file is located in {LEAD Installation BIN} folder
- The default location is C:\LEADTOOLS 18\Bin\Dotnet4\Win32
Open the globalPacs.config file in Visual Studio (or any text editor)
Add a new myStorageDataAccessConfiguration175 section. The new section is shown in yellow highlight, below.

Comment out the existing StorageServer entry in the storageDataAccessConfiguration175 definition, and add a new myStorageDataAccessConfiguration175 definition. The changes are shown in yellow highlight, below.

<!--<add productName="StorageServer" serviceName="L18_PACS_SCP32"

connectionName="LeadStorageServer18_32" />-->

<add productName="Workstation" serviceName="L18_WS_SERVER32"

connectionName="MedicalWorkstation18_32" />

</storageDataAccessConfiguration175>

</myStorageDataAccessConfiguration175>

Add a new connection string item to the <connectionStrings> element.
- You can copy and paste the existing connection string, and modify the copy to point to the new database.
- The name is MyDicomDb
- The catalog is MyDicomDb
- The new connection string is shown highlighted, with changes underlined, below.

<add name="LeadStorageServer18_32" connectionString="Data Source=medical-test;Failover Partner=;Initial Catalog=LeadStorageServer18_32;Integrated Security=False;User ID=sa;Password=sa;Pooling=True"

providerName="System.Data.SqlClient" />

<add name="MyDicomDb" connectionString="Data Source=medical-test;Failover Partner=;Initial Catalog= MyDicomDb;Integrated Security=False;User ID=sa;Password=sa;Pooling=True"

providerName="System.Data.SqlClient" />

</connectionStrings>

Save the changes to globalPacs.config, and close the file

Step 5: Copy the following files to {LEAD Installation BIN}

MyQueryIOD.xml
- See Specifying C-FIND-Rsp DICOM Elements for instructions on creating MyQueryIOD.xml
MyCatalog.xml
- See Storage Catalog for instructions on creating MyCatalog.xml
MyDataSet.xsd
- Creating the Strongly Typed DataSet Class and the XML Schema File for instructions on creating MyDataSet.xsd
Database manager configuration files
- PatientLevel.xml
- StudiesLevel.xml
- SeriesLevel.xml
- ImagesLevel.xml
- See Database Mapping for the Database Manager for instructions on creating the database manager configuration files

Step 6: Rebuild the CSStorageServerManagerDemo_Original.exe with modifications

Start Visual Studio 2010
Open the StorageServerManager_x86_2010.csproj project file
- The default location for the project file is here: C:\LEADTOOLS 18\Examples\PACSFramework\CS\StorageServerManager
Add a reference to My.Medical.Storage.DataAccessLayer.dll
- In solution explorer, right-click the References folder
- Select Add Reference…
- Click the Browse tab
- Browse to the {LEAD Installation BIN} folder
  - The default location is C:\LEADTOOLS 18\Bin\Dotnet4\Win32
- Select My.Medical.Storage.DataAccessLayer.dll
- Click OK
Modify shell.cs
- Note that all of these changes are already in the shipping version of shell.cs, wrapped in directives
  - #if TUTORIAL_CUSTOM_DATABASE
  - #endif
- The default location is C:\LEADTOOLS 18\Examples\PACSFramework\CS\StorageServerManager\Shell\Shell.cs
- Add the following using statements to the top of shell.cs

// Code changes for Tutorial

using Leadtools.Medical.Storage.DataAccessLayer.Interface;

using My.Medical.Storage.DataAccessLayer;

using My.Medical.Storage.DataAccessLayer.Entities;

// Code changes for Tutorial

Add the following to the Run() method, immediately after the call to CreateConfigurationServices ( service ) ;

// Code changes for Tutorial

DataAccessServiceLocator.Register<IPatientInfo>(new MyPatientInfo());

DataAccessServiceLocator.Register<IStudyInfo>(new MyStudyInfo());

DataAccessServiceLocator.Register<ISeriesInfo>(new MySeriesInfo());

DataAccessServiceLocator.Register<IInstanceInfo>(new MyInstanceInfo());

RegisteredEntities.Items.Add(RegisteredEntities.PatientEntityName, typeof(MyPatient));

RegisteredEntities.Items.Add(RegisteredEntities.StudyEntityName, typeof(MyStudy));

RegisteredEntities.Items.Add(RegisteredEntities.SeriesEntityName, typeof(MySeries));

RegisteredEntities.Items.Add(RegisteredEntities.InstanceEntityName, typeof(MyInstance));

// Code changes for Tutorial

In the RegisterDataAccessLayers() method, change the following statement to create an instance of MyStorageDataAccessConfigurastionView. The change is in yellow highlight:

storageAgent = DataAccessFactory.GetInstance ( new MyStorageDataAccessConfigurationView(configuration, DicomDemoSettingsManager.ProductNameStorageServer, null)).CreateDataAccessAgent <IStorageDataAccessAgent> ( ) ;

Modify Program.cs
- The default location is D:\LEAD15\dist\Examples\PACSFramework175\CS\StorageServerManager\Program.cs
- In the Main() method, make the following change so that the CSStorageServerManager.exe demo does not falsely detect that the database has not been configured.

bool dbConfigured = GlobalPacsUpdater.IsDbComponentsConfigured(productsToCheck, out message);

dbConfigured = true;

Modify StorageServerContainerPresenter.cs
- The default location is D:\LEAD15\dist\Examples\PACSFramework175\CS\StorageServerManager\UI\StorageServerContianer\StorageServerContainerPresenter.cs
- Add the following using statements to the top of StorageServerContainerPresenter.cs

// Code changes for Tutorial

using My.Medical.Storage.DataAccessLayer;

using My.Medical.Storage.DataAccessLayer.Entities;

using Leadtools.Dicom.Common.DataTypes;

using Leadtools.Medical.Winforms.Control;

using Leadtools.Dicom.Common.Extensions;

// Code changes for Tutorial

After the RunView() method, insert the MyPrepareSearch() method. See Assigning the StorageDatabaseManager.PrepareSearch delegate for an explanation of the delegate.

private void MyPrepareSearch(MatchingParameterCollection matchingCollection)

{

DicomQueryParams q = __DbManager.GetDicomQueryParams();

try

{

MatchingParameterList matchingList = new MatchingParameterList();

MyPatient patient = new MyPatient();

MyStudy study = new MyStudy();

MySeries series = new MySeries();

matchingList.Add(patient);

matchingList.Add(study);

matchingList.Add(series);

matchingCollection.Add(matchingList);

study.StudyAccessionNumber = q.AccessionNumber;

patient.PatientIdentification = q.PatientId;

if (!string.IsNullOrEmpty(q.PatientName.FamilyName))

patient.PatientName = q.PatientName.FamilyName.TrimEnd('*') + "*";

if (!string.IsNullOrEmpty(q.PatientName.GivenName))

patient.PatientName = q.PatientName.GivenName.TrimEnd('*') + "*";

if (!string.IsNullOrEmpty(q.Modalities))

series.SeriesModality = q.Modalities.Replace(",", "\\"); ;

if (!string.IsNullOrEmpty(q.SeriesDescription))

series.SeriesSeriesDescription = q.SeriesDescription.TrimEnd('*') + "*";

if (!string.IsNullOrEmpty(q.ReferringPhysiciansName.FamilyName))

study.StudyReferringPhysiciansName = q.ReferringPhysiciansName.FamilyName.TrimEnd('*') + "*"; ;

if (!string.IsNullOrEmpty(q.ReferringPhysiciansName.GivenName))

study.StudyReferringPhysiciansName = q.ReferringPhysiciansName.GivenName.TrimEnd('*') + "*"; ;

if (q.StudyFromChecked || q.StudyToChecked)

{

DateRange studyDateRange = new DateRange();

if (q.StudyFromChecked)

{

studyDateRange.StartDate = q.StudyFromDate;

}

if (q.StudyToChecked)

{

studyDateRange.EndDate = q.StudyToDate;

}

study.StudyStudyDate = studyDateRange;

}

if (q.StorageDateChecked)

{

MyInstance instance = new MyInstance();

DateRange dateRange = new DateRange();

DateRangeFilter StorageDateRangeFilter = q.StorageDateRange;

string startDate = StorageDateRangeFilter.DateRangeFrom;

string endDate = StorageDateRangeFilter.DateRangeTo;

if (StorageDateRangeFilter.SelectedDateFilter == DateRangeFilter.RangeFilterType.DateRange)

{

if (!string.IsNullOrEmpty(startDate))

{

dateRange.StartDate = DateTime.Parse(startDate);

}

if (!string.IsNullOrEmpty(endDate))

{

dateRange.EndDate = DateTime.Parse(endDate);

}

else if (StorageDateRangeFilter.SelectedDateFilter == DateRangeFilter.RangeFilterType.Months)

{

DateTime lastMonthsDate = DateTime.Now.SubtractMonths(Convert.ToInt32(StorageDateRangeFilter.LastMonths));

dateRange.StartDate = lastMonthsDate;

dateRange.EndDate = DateTime.Now;

}

else

{

TimeSpan subtractionDays = new TimeSpan(Convert.ToInt32(StorageDateRangeFilter.LastDays),

DateTime.Now.Hour,

DateTime.Now.Minute,

DateTime.Now.Second,

DateTime.Now.Millisecond);

dateRange.StartDate = DateTime.Now.Subtract(subtractionDays);

dateRange.EndDate = DateTime.Now;

}

instance.ImageLastStoreDate = dateRange;

matchingList.Add(instance);

}

study.StudyStudyId = q.StudyId;

}

catch (Exception exception)

{

throw exception;

}

finally

{

// do nothing ;

}

In the CreateContainerPages( ) method, assign the PrepareSearchDelegate

StorageDatabaseManager dbManager = new StorageDatabaseManager ( ) ;

dbManager.PrepareSearch = new PrepareSearchDelegate(MyPrepareSearch);

In the CreateContainerPages( ) method, add a call to get the query parameters

ServerState.Instance.LicenseChanged += new EventHandler(Instance_LicenseChanged);

dbManager.GetDicomQueryParams();

In the ConfigureServerInfoConrol ( ) method, modify the GetConnectionString call to use the custom configuration

storage = GetConnectionString(configPacs, configMachine,

new MyStorageDataAccessConfigurationView(configPacs, PacsProduct.ProductName, null).DataAccessSettingsSectionName);

Build CSStorageServerManager.exe

Step 7: Modify application configuration files to use the storage catalog and DataSet Schema

· Modify Leadtools.Dicom.Server.exe.config (additions shown highlighted)

<?xml version="1.0" encoding="utf-8" ?>

</sectionGroup>

</configSections>

</channels>

</leadLogging>

</dependentAssembly>

</dependentAssembly>

</dependentAssembly>

</assemblyBinding>

</runtime>

</appSettings>

</configuration>

· Modify CSStorageServerManagerDemo.exe.config (additions shown hilighted)

<?xml version="1.0"?>

</configSections>

</dependentAssembly>

</dependentAssembly>

</dependentAssembly>

</assemblyBinding>

</runtime>

</appSettings>

</configuration>

Step 8: Configure the Storage Server Manager to use MyQueryIOD.xml

Run CSStorageServerManagerDemo.exe
Login with the Username and Password credentials that you defined during database configuration

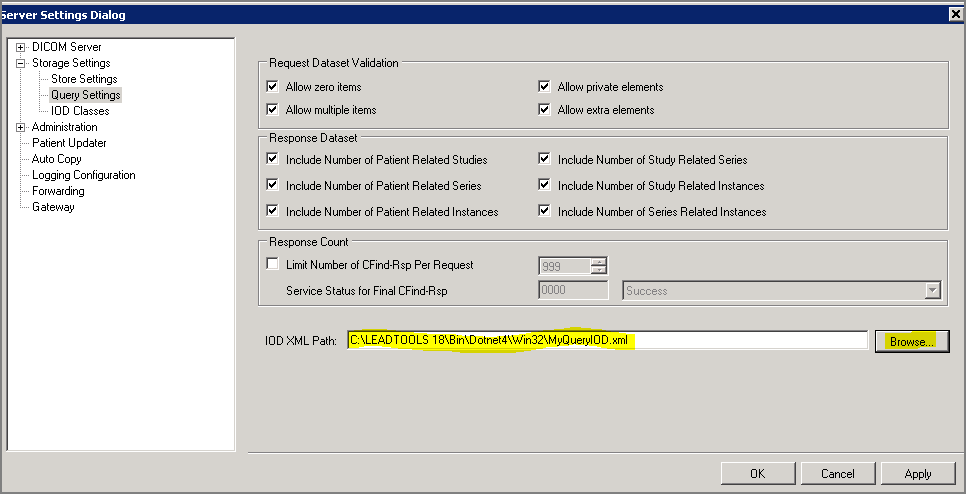

Open the Query Settings, and set the IOD XML Path to be your MyQueryIOD.xml file.
- See Specifying C-FIND-Rsp DICOM Elements for instructions on creating MyQueryIOD.xml

Step 9: (Optional) Configure the Forward feature

Create the Forward table and add it to the MyDicomDb database
- Start Microsoft SQL Server Management Studio
- Click New Query
- Paste the script below in the New Query window
- Click Execute to add the Forward table to MyDicomDb.

Script to create the Forward table

USE [MyDicomDb]

/****** Object: Table [dbo].[Forward] Script Date: 09/04/2013 15:55:39 ******/

SET ANSI_NULLS ON

SET QUOTED_IDENTIFIER ON

CREATE TABLE [dbo].[Forward](

[SOPInstanceUID] [nvarchar](64) NOT NULL,

[ForwardDate] [datetime] NULL,

[ExpireDate] [datetime] NULL,

CONSTRAINT [PK_Forward] PRIMARY KEY CLUSTERED

(

[SOPInstanceUID] ASC

)WITH (PAD_INDEX = OFF, STATISTICS_NORECOMPUTE = OFF, IGNORE_DUP_KEY = OFF, ALLOW_ROW_LOCKS = ON, ALLOW_PAGE_LOCKS = ON) ON [PRIMARY]

) ON [PRIMARY]

ALTER TABLE [dbo].[Forward] WITH CHECK ADD CONSTRAINT [FK_Forward_Instance] FOREIGN KEY([SOPInstanceUID])

REFERENCES [dbo].[MyInstanceTable] ([SOPInstanceUID])

ON UPDATE CASCADE

ON DELETE CASCADE

ALTER TABLE [dbo].[Forward] CHECK CONSTRAINT [FK_Forward_Instance]

Modify the Leadtools.Medical.Forward.DataAccessLayer assembly

Start Visual Studio
Open the Leadtools.Medical.Forward.DataAccessLayer project
- The default location is C:\LEADTOOLS 18\Examples\PACSFramework\CS\Leadtools.Medical.Forward.DataAccessLayer
Open the ForwardDBDataAccessAgent.cs file
Add the following to the ForwardDBDataAccessAgent constructor:

public ForwardDBDataAccessAgent(string connectionString)

{

#if TUTORIAL_CUSTOM_DATABASE

_instanceTableName = @"MyInstanceTable";

_columnNameSOPInstanceUID = @"SOPInstanceUID";

_columnNameReferencedFile = @"ImageFilename";

#endif

ConnectionString = connectionString;

}

· Open the properties page

· Add TUTORIAL_CUSTOM_DATABASE from the Conditional compilation symbols

· Build the project to generate the new Leadtools.Medical.Forward.DataAccessLayer.dll assembly.

Modify the GlobalPacs.config
- Open the globalPacs.config file in Visual Studio (or any text editor)
- In the existing <forwardConfiguration175>, comment out the existing entry and add a new entry with MyDicomDb as the connection name. The changes are highlighted below.

</forwardConfiguration175>

Save the changes to globalPacs.config, and close the file

Step 10: Verify that the Storage Server Manager is using the Custom Database

Run CSStorageServerManagerDemo.exe
Open the Database Manager
Click the Add DICOM button and add a DICOM file
- You can add image2.dcm, which is installed with the toolkit
Click the Search button, and verify that the DICOM file has stored in the database
Click the Start Storage Service button to start the DICOM listening service
Start the CSDicomHighLevelClient demo, and verify that the newly added DICOM file can be retrieved
Start the CSDicomHighLevelStore demo, and verify that a DICOM file can be stored to the server
(Optional) If you completed optional step 9, verify that the Forwarding is working correctly
- Click on the control panel
- Click the Forward icon
- Click the Advanced tab
- Select L18_SERVER or any other existing SCP in the Forward To drop down
- Click the Forward button. The dataset(s) should be forwarded to L18_SERVER, and the Clean button should be enabled.
- Click the Clean button.
- Open the Database Manager
- Click the Search button, and verify that the forwarded DICOM file(s) have been removed from database
