| Leadtools.Workflow.ImageProcessing Namespace : LineRemoveCommandFlags Enumeration |
Flags that determine the behavior of the line removal process.
[FlagsAttribute()] public enum LineRemoveCommandFlags : System.Enum, System.IComparable, System.IConvertible, System.IFormattable
'Declaration <FlagsAttribute()> Public Enum LineRemoveCommandFlags Inherits System.Enum Implements System.IComparable, System.IConvertible, System.IFormattable
'Usage Dim instance As LineRemoveCommandFlags
[FlagsAttribute()] public enum class LineRemoveCommandFlags : public System.Enum, System.IComparable, System.IConvertible, System.IFormattable
| Value | Member | Description |
|---|---|---|
| 0x00000000 | None | No flags. |
| 0x00000001 | UseDpi | The unit of measure for all properties of the LineRemoveActivity is thousandths of an inch. Use the image's DPI to convert to pixels. This allows the processing of many images with different DPI. If this flag is not set, the unit of measure for all properties of the LineRemoveActivity is pixels. |
| 0x00000002 | SingleRegion | When LineRemoveActivity returns, either LineRemoveActivity.ImageRegion or LineRemoveActivity.Region will reference a region that contains all of the removed lines. If LeadRegion is also set, LineRemoveActivity.ImageRegion will be updated with a shallow copy of image that has a LEAD region that contains all of the removed lines. If LeadRegion is not set, LineRemoveActivity.Region is updated with a Windows region that contains all of the removed lines. When the region (either LEAD or Windows) is no longer needed, it must be disposed of (either the region allocated in the LineRemoveActivity.ImageRegion or the LineRemoveActivity.Region). |
| 0x00000004 | LeadRegion | When LineRemoveActivity returns, LineRemoveActivity.ImageRegion is updated with a shallow copy of affected image that also contains a region with all of the removed lines. This flag must be used in conjunction with SingleRegion. So set LineRemoveActivity.Flags to SingleRegion | LeadRegion |

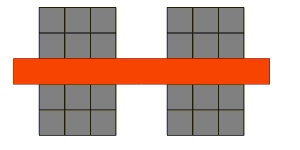

| 0x00000200 | RemoveEntire | Remove the entire line, even if the line passes through a character or a wall. Consider the line below.  Setting Wall as 80 and passing RemoveEntire will remove the red pixels as shown below.  |
| 0x00000400 | UseGap | Consider "gaps" in lines when performing line removal. If this flag is set, the gap length value (either the LineRemoveActivity.GapLength property) is used. If this flag is not passed, the gap length value is ignored. |
| 0x00000800 | UseVariance | Consider line variance when performing line removal. If this flag is passed, the variance value (either the LineRemoveActivity.Variance property) is used. If this flag is not passed, the variance value is ignored. |
System.Object
System.ValueType
System.Enum
Leadtools.Workflow.ImageProcessing.LineRemoveCommandFlags
