LEAD Screen Capture Encoder User Interface (2.0)

Show in webframe

This is the main interface for the screen capture encoder filter. It contains properties to adjust the key frame spacing and the quality factor, and a method to force a key frame. The property page is shown in the following figure:

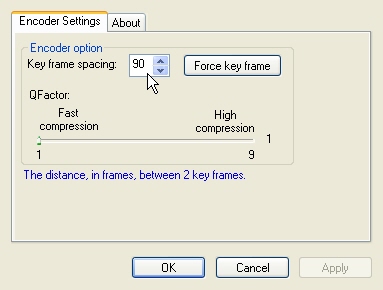

LEAD Screen Capture Encoder property page

The Screen capture encoder property page provides a user interface for changing the filter's attributes. Changes will be applied when the Apply or OK is clicked. Positioning the mouse pointer over a control displays general information for that control.

The following table shows the controls and their descriptions:

Control	Description
Key frame spacing edit box	Specifies the number of frames between key frames.
Force key frame button	Forces the current frame to be compressed as a key frame.
Qfactor slider bar	Specifies the quality factor for compression
